Pinpoint Test O: The Front Auxiliary Blower Motor Switch Is Inoperative In Hi

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

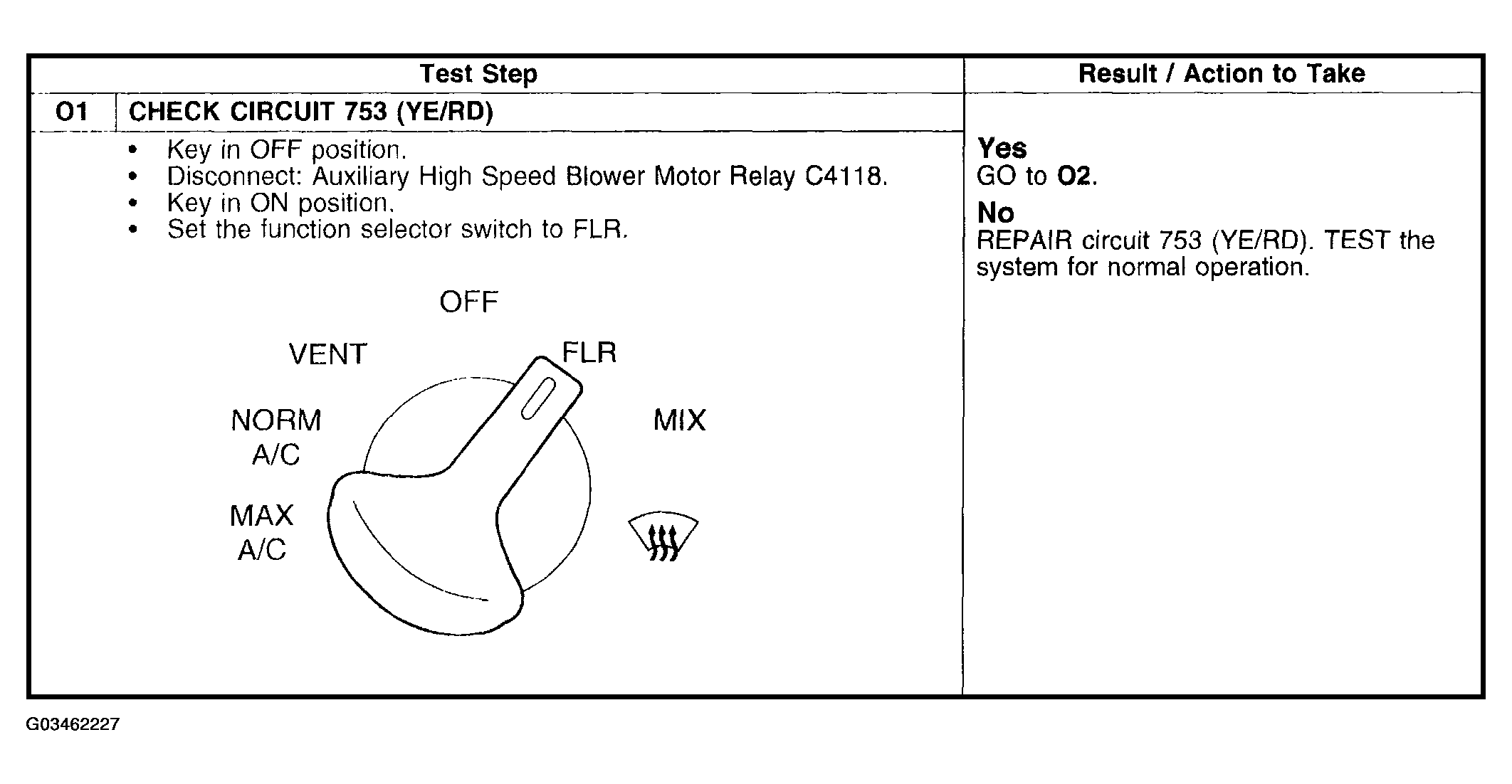

Fig 1: Pinpoint Test O: Front Auxiliary Blower Motor Switch Is Inoperative (O1)

Courtesy of FORD MOTOR CO.

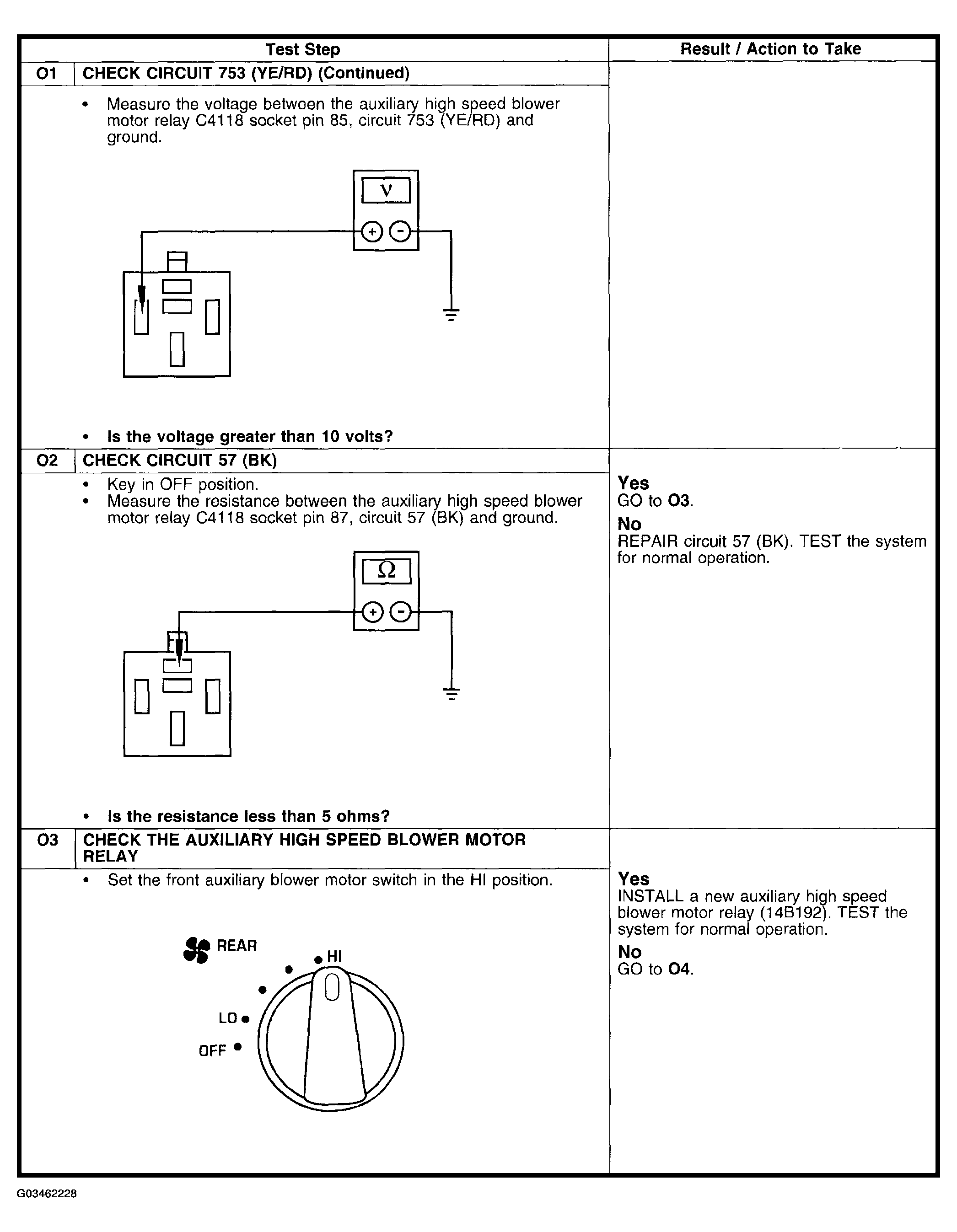

Fig 2: Pinpoint Test O: Front Auxiliary Blower Motor Switch Is Inoperative (O1 Cont.-O3)

Courtesy of FORD MOTOR CO.

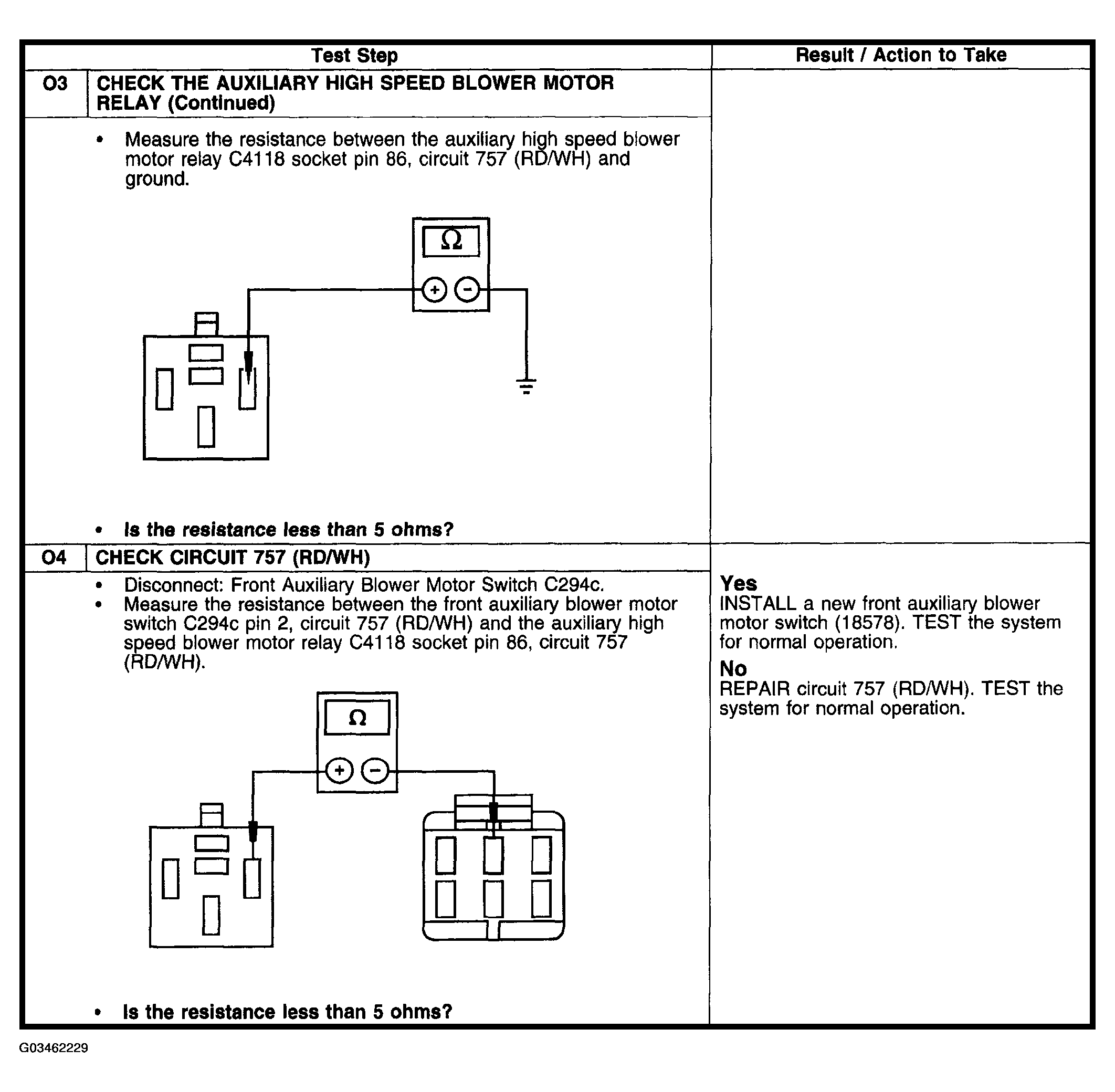

Fig 3: Pinpoint Test O: Front Auxiliary Blower Motor Switch Is Inoperative (O3 Cont.-O4)

Courtesy of FORD MOTOR CO.
