Install the digital TR sensor and loosely install the bolts.

Fig 1: Installing Digital TR Sensor And Bolts
Courtesy of FORD MOTOR CO.

NOTE: Manual shift lever shaft must be in the NEUTRAL position.

Fig 2: Aligning Digital TR Sensor Slots Using Special Tool (307-351)

Courtesy of FORD MOTOR CO.

Using the special tool, align the digital TR sensor slots. The tool is designed to fit snugly.

CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.

Tighten the screws in an alternating sequence.
- Tighten to 9 Nm (80 lb-in).

  Fig 3: Aligning Digital TR Sensor Slots With Special Tool
  Courtesy of FORD MOTOR CO.
With the manual lever in overdrive, connect the selector lever cable.
- Tighten to 30 Nm (22 lb-ft).

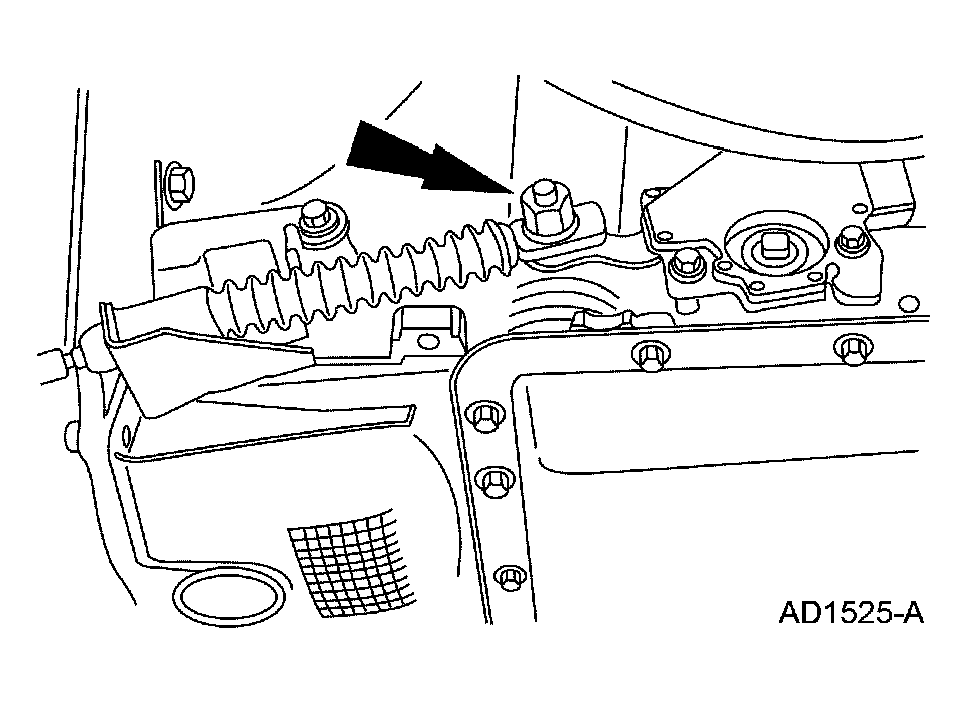

  Fig 4: Connecting Selector Lever Cable
  Courtesy of FORD MOTOR CO.
Connect the digital TR sensor electrical connector.

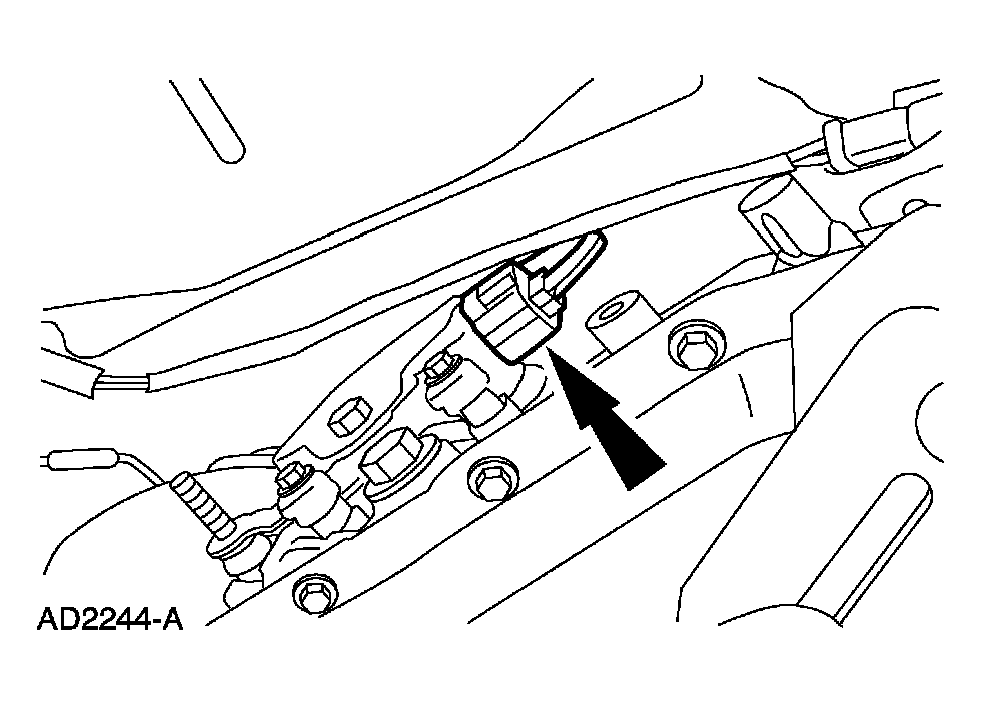

Fig 5: Connecting Digital TR Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .

If equipped with fire suppression system, repower the system.
