Driver Seat Module

DRIVER SEAT MODULE (DSM)

REMOVAL

CAUTION:
- Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
- Prior to the removal of the module, it is necessary to upload module configuration information to the appropriate diagnostic equipment. This information needs to be downloaded into the new module once installed.

1. Disconnect the battery.







2. NOTE: The module is accessed with the seat fully in the UP position.

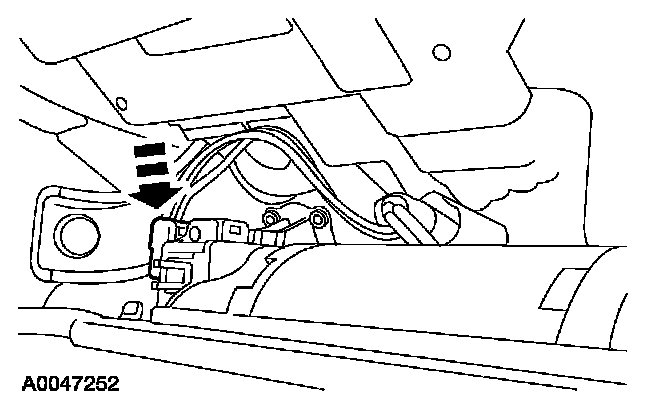

Slide the driver seat module forward to remove it from the bracket.

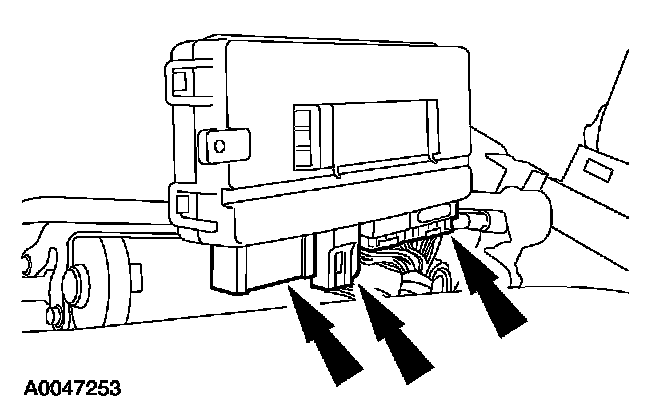

3. Disconnect the connectors and remove the DSM.

INSTALLATION

1. CAUTION: Once the module is installed it is necessary to download the module configuration information from the diagnostic tool into the new module.

To install, reverse the removal procedure.
