Vehicle Security Module

VEHICLE SECURITY MODULE

REMOVAL

1. NOTE: Prior to removal of the vehicle security module, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed.

Disconnect the battery.

2. Remove the pushpin and the RH interior kick panel.

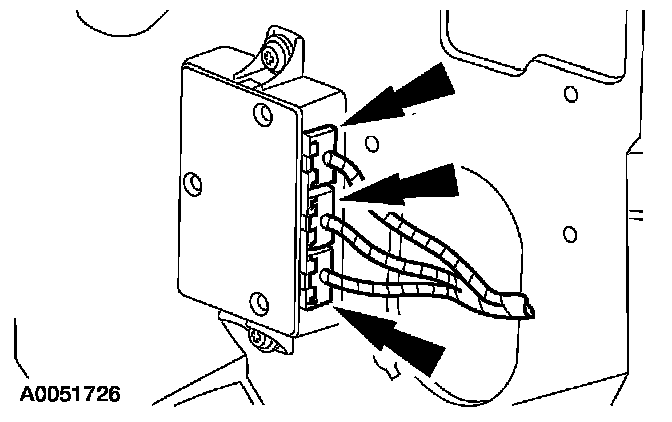

3. Disconnect the three vehicle security module electrical connectors.

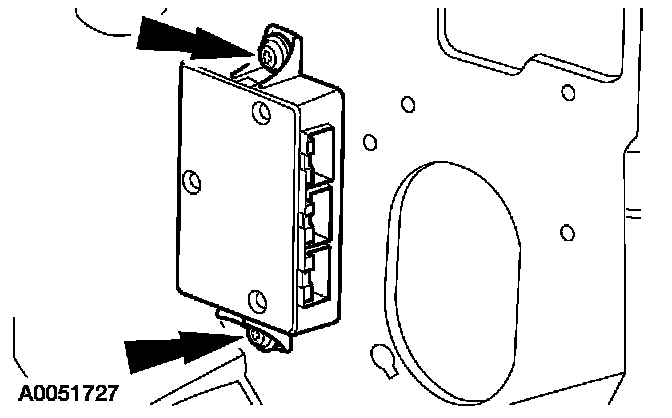

4. Remove the two screws and the vehicle security module.

INSTALLATION
1. To install, reverse the removal procedure.
