Engine Control Module: Service and Repair

POWERTRAIN CONTROL MODULE (PCM)

REMOVAL
1. Disconnect the battery ground cable.

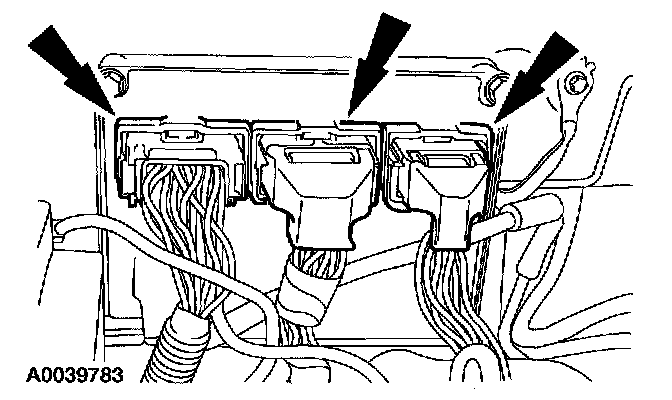

2. Disconnect the powertrain control module (PCM) electrical connectors.

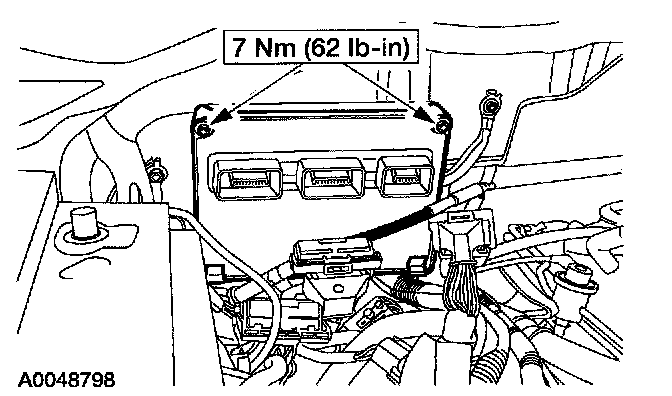

3. Remove the bolts and the PCM.

INSTALLATION
1. To install, reverse the removal procedure.
