Pinpoint Test G: No Communication With The Dual/Electronic Automatic Temperature Control Module

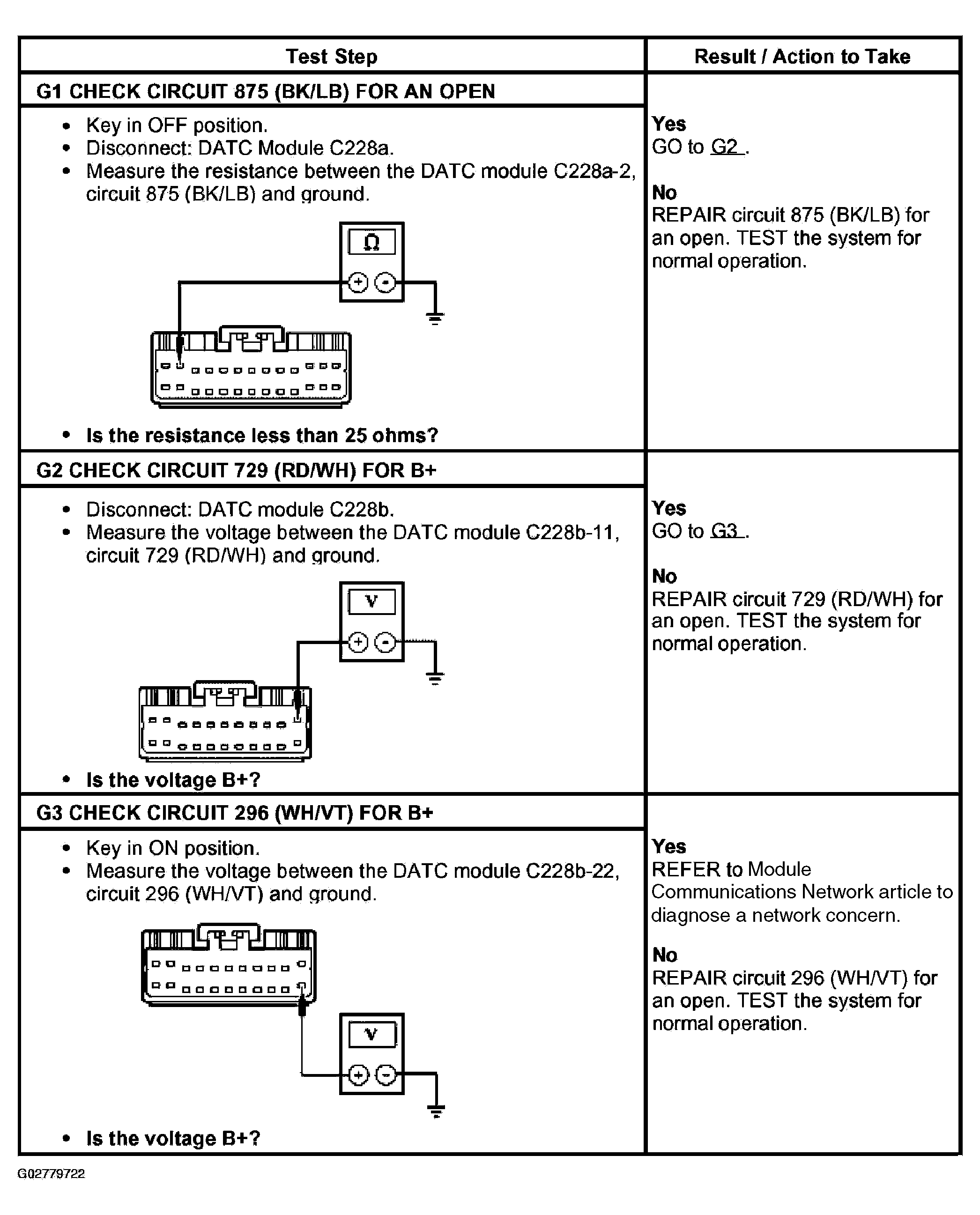

Fig 1: Pinpoint Test G: No Communication With Dual/Electronic Automatic Temperature Control Module
G02779722Courtesy of FORD MOTOR CO.
