Symptom Chart

NOTE: Carry out the speed control self-test diagnostics before entering the symptom chart.

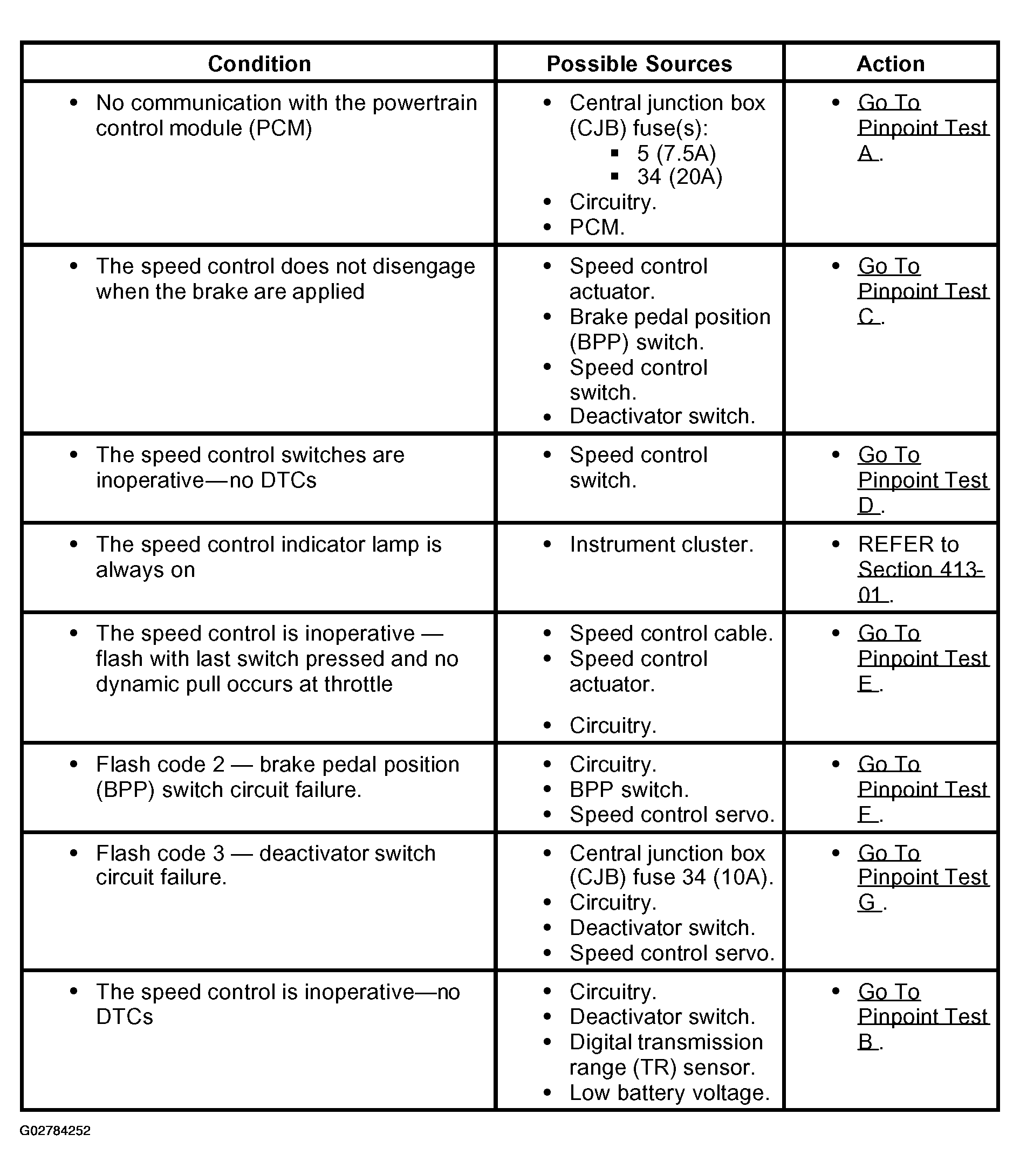

Fig 1: Symptom Chart
G02784252Courtesy of FORD MOTOR CO.
