Pinpoint Test P: DTC C1998 Module Calibration Not Complete

NOTE: Stability assist lamp will flash when calibration is required. IVD calibration is required after certain DTCs are cleared.

NOTE: Ensure the vehicle is on level ground, not on a hoist, before carrying out the ABS module calibration.

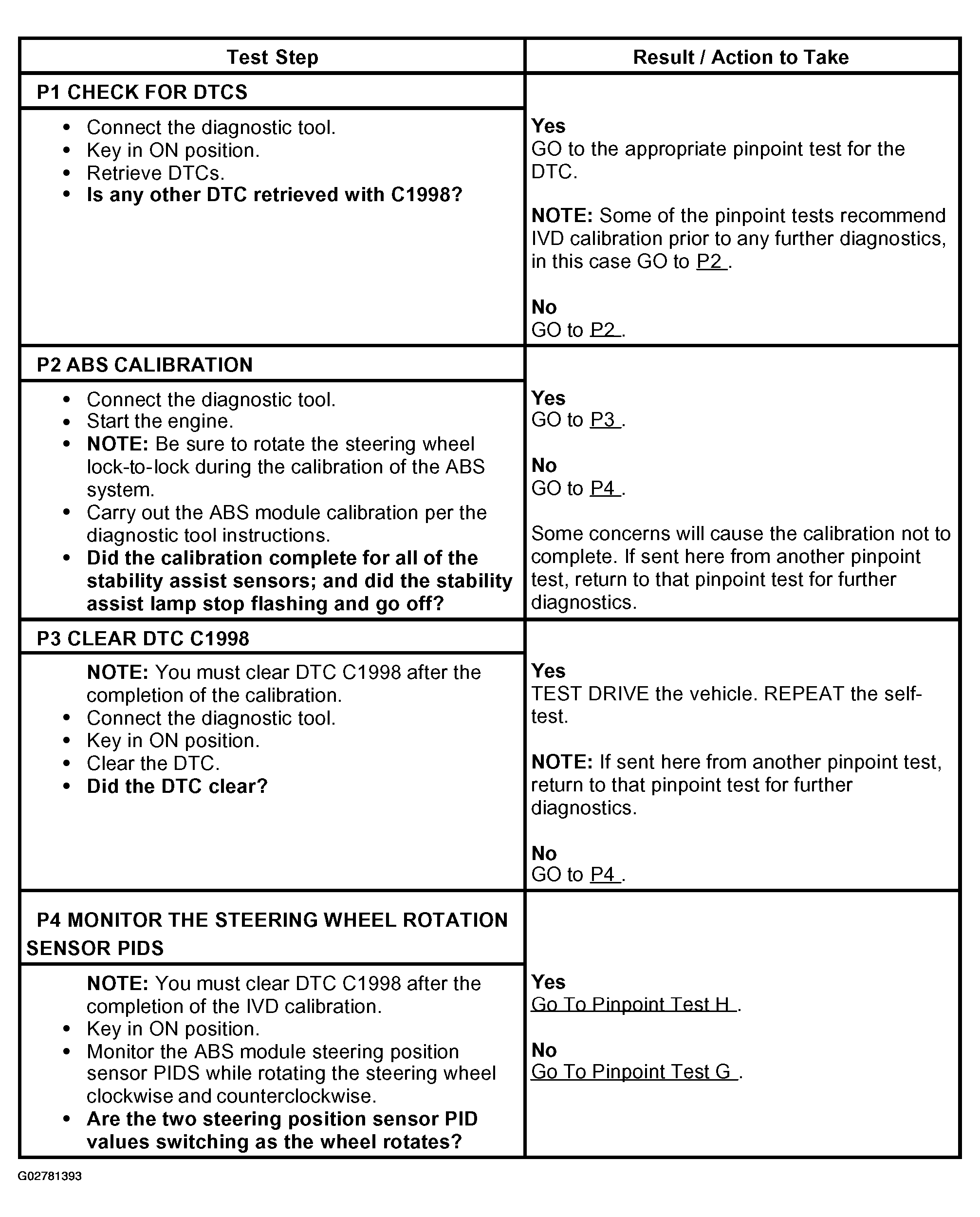

Fig 1: Pinpoint Test P: DTC C1998 Module Calibration Not Complete (P1 - P4)

Courtesy of FORD MOTOR CO.
