Driver Rear Window Control Switch C701

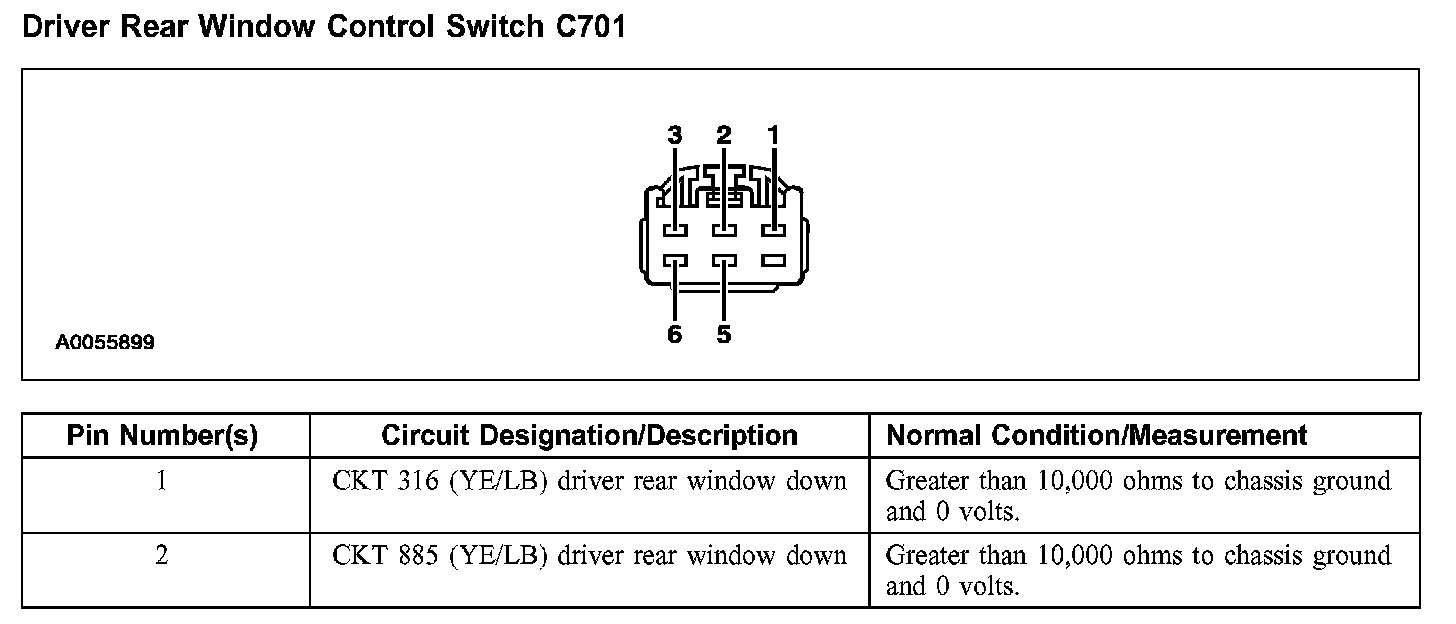

Driver Rear Window Control Switch C701, Part 1:

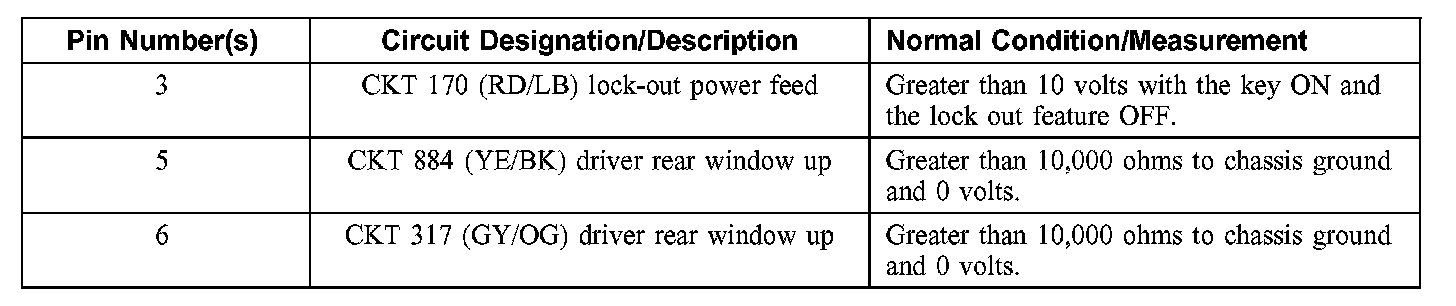

Driver Rear Window Control Switch C701, Part 2:
