Driver Window Control Switch C504b

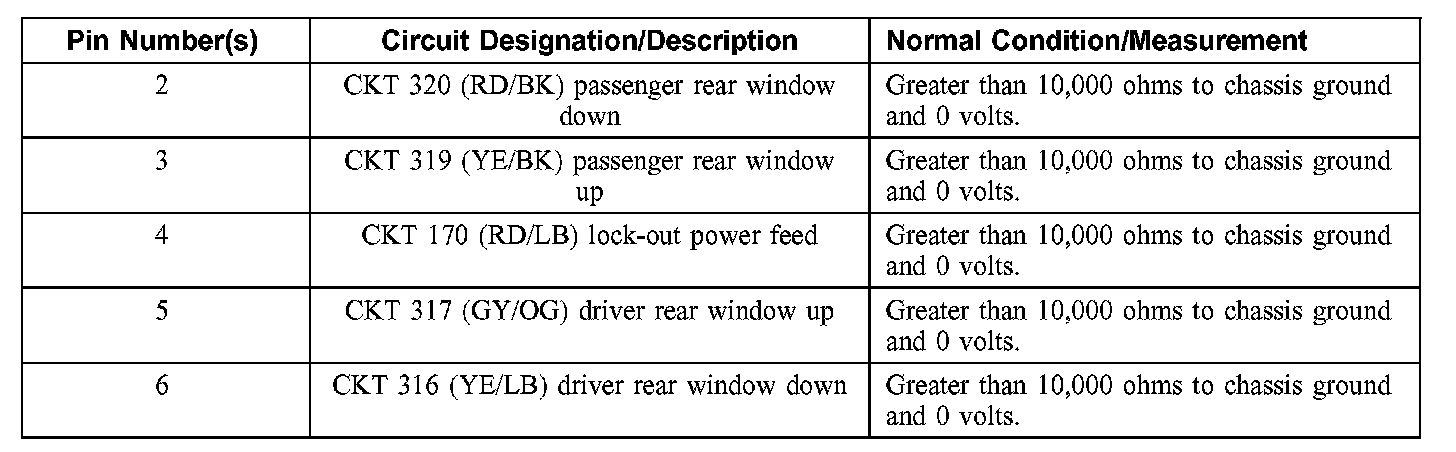

Driver Window Control Switch C504b, Part 1:

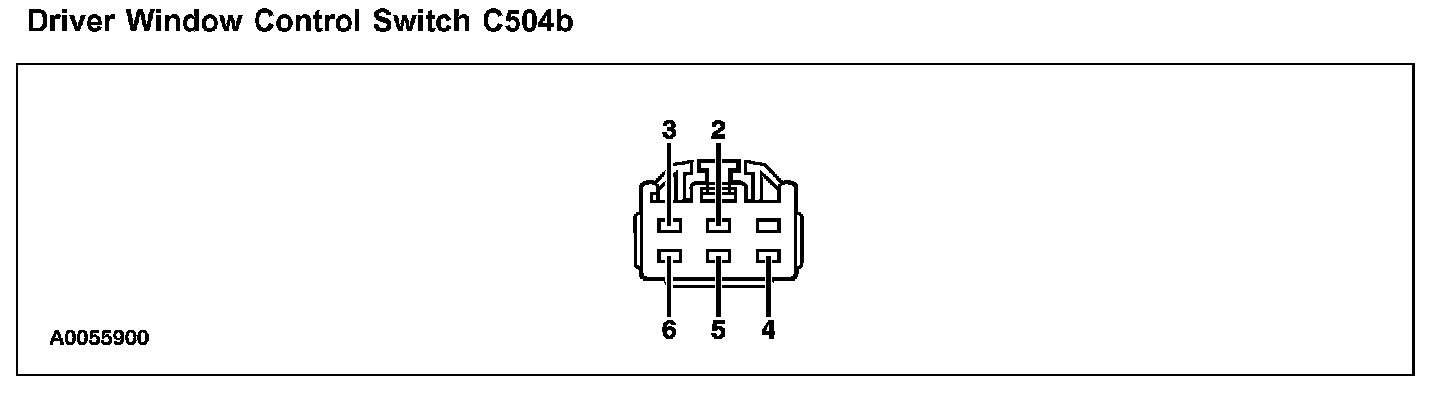

Driver Window Control Switch C504b, Part 2:
