Item 24: Differential Bearings Assembly Note

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Install the differential shims and the differential bearing.
1. Position the differential shims and the differential bearing.
2. Using a suitable press, install the differential bearing.
  - Repeat this step for opposite side of the differential case.
  - Most axles will have the larger amount of shims on the ring gear side and the smaller amount on the case side.

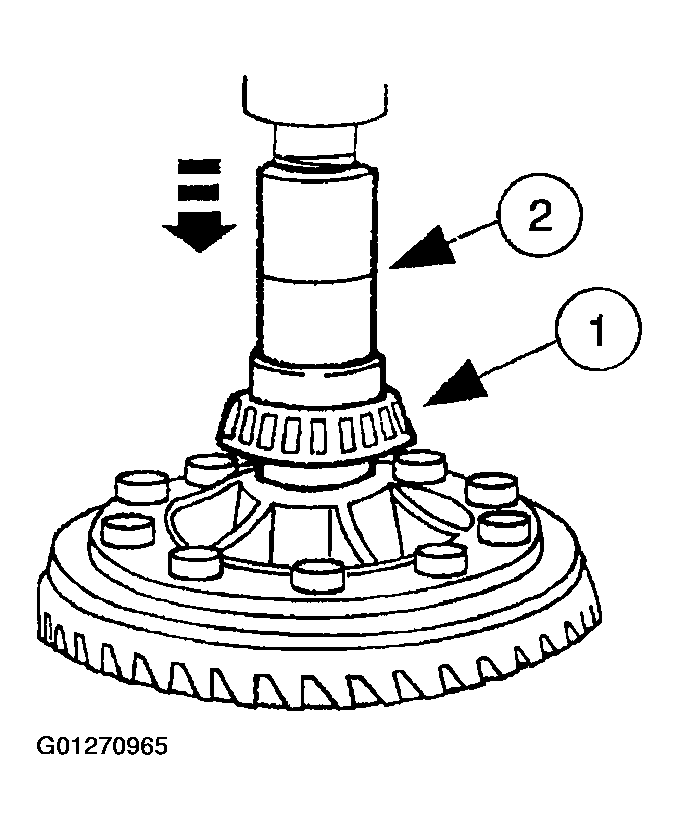

Fig 1: Installing Differential Bearing
Courtesy of FORD MOTOR CO.
