Item 32 and 33: Axle Isolator Bushing Assembly Note

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

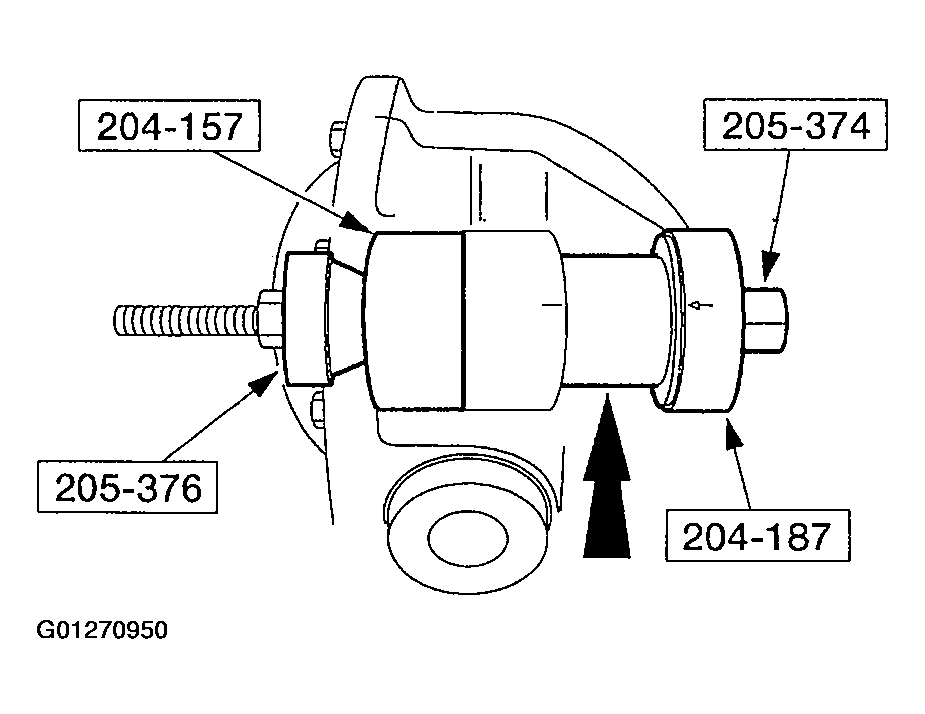

Position the new isolator in the housing bore and install the special tools. Align the arrow on the special tool with the index mark on the housing.

Fig 1: Positioning New Isolator In Housing Bore
Courtesy of FORD MOTOR CO.
Tighten the drawbolt to install the isolator.

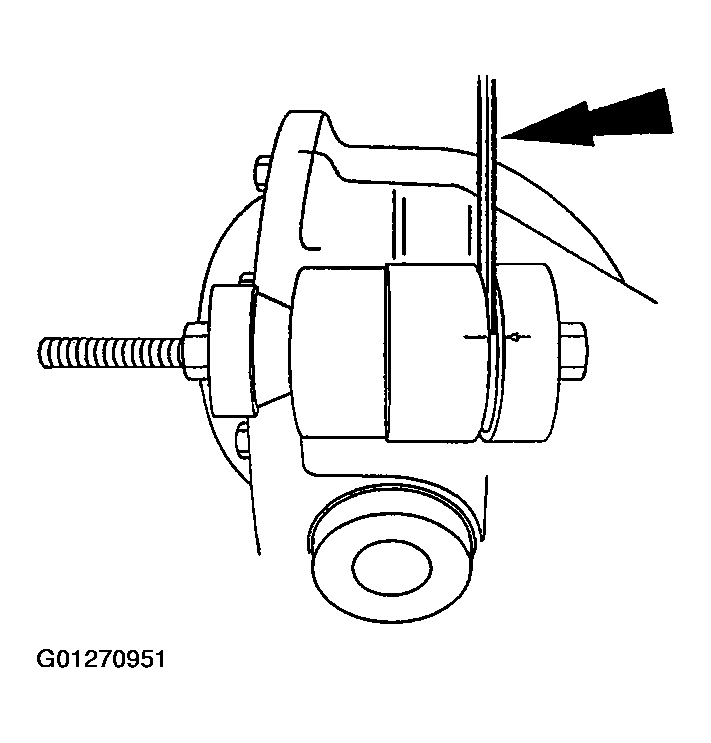

- Draw the isolator into the housing to the gap measured when the isolator was removed.
Fig 2: Installing Isolator Into Housing To Gap Measure
Courtesy of FORD MOTOR CO.
