Item 9: Axle Shaft Bearing Assembly Note

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tools, install the axle tube bearing.

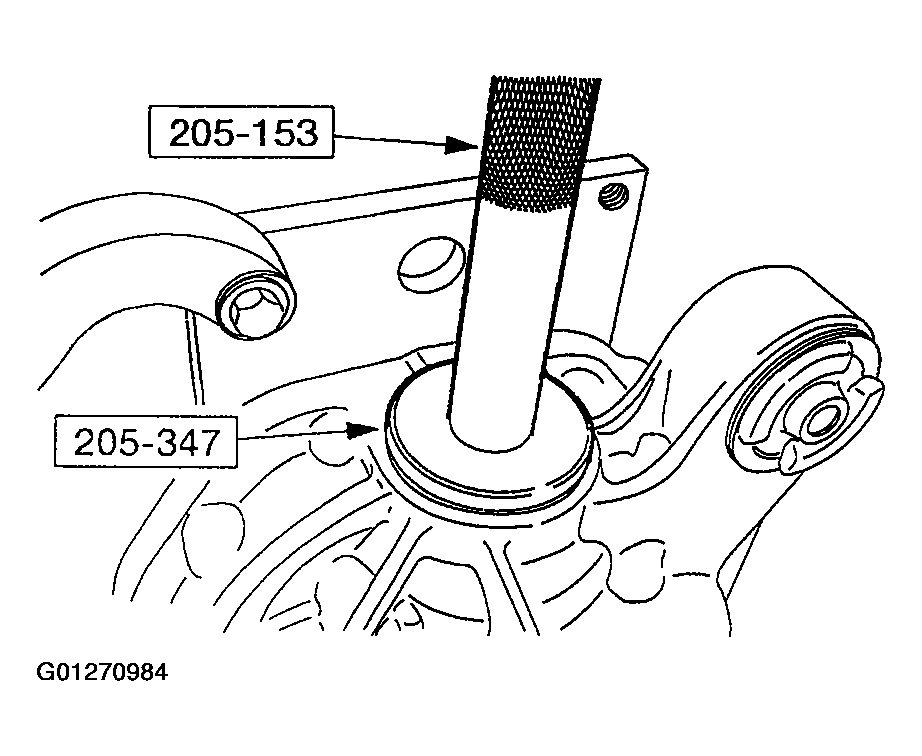

    Fig 1: Installing Axle Shaft Bearing Assembly
    G01270984Courtesy of FORD MOTOR CO.
