Item 30: Axle Isolator Bushing Assembly Note

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tools, install the rear axle isolator bushing.

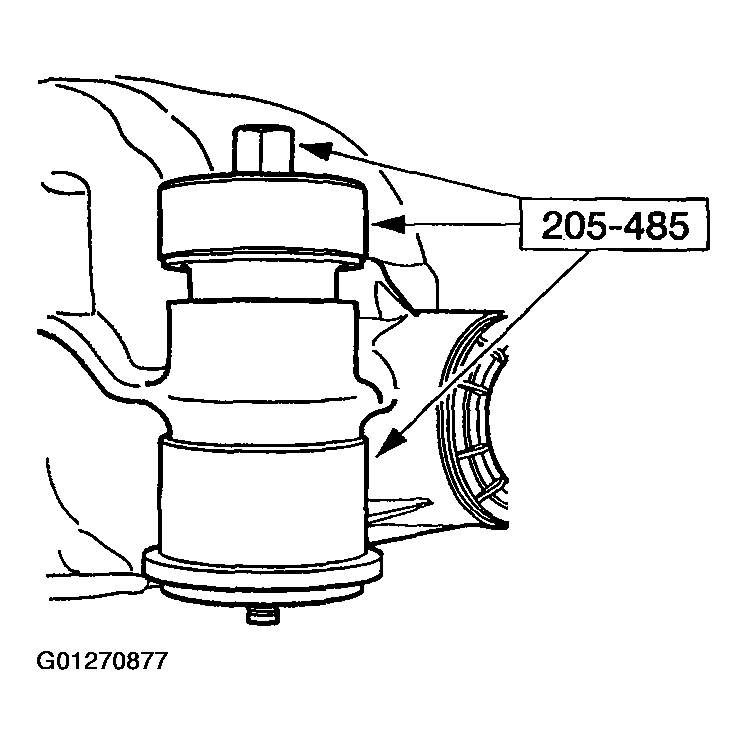

    Fig 1: Installing Rear Axle Isolator Bushing
    G01270877Courtesy of FORD MOTOR CO.
