Pinpoint Test E: No Communication With The Anti-Lock Brake System (Abs) Module

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.

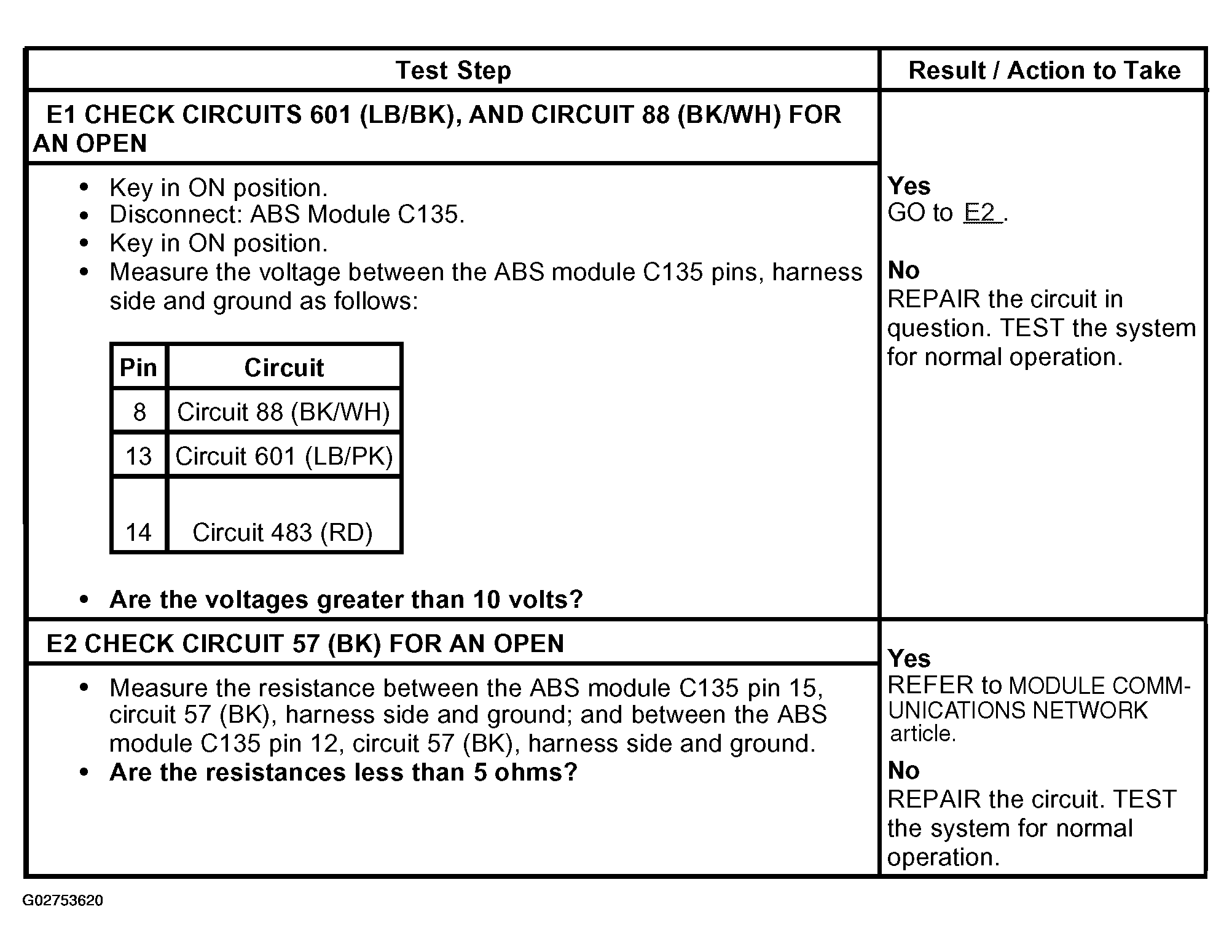

Fig 1: Pinpoint Test E: No Communication With Anti-Lock Brake System (ABS) Module

Courtesy of FORD MOTOR CO.
