Rear Toe Adjustment

  1. Start the engine and center the steering wheel.
  2. Turn the engine off, and hold the steering wheel in the "straight ahead" position using a suitable holding device.
  3. Loosen the nuts.
  4. Clean and lubricate the nut(s) and rear toe link threads.

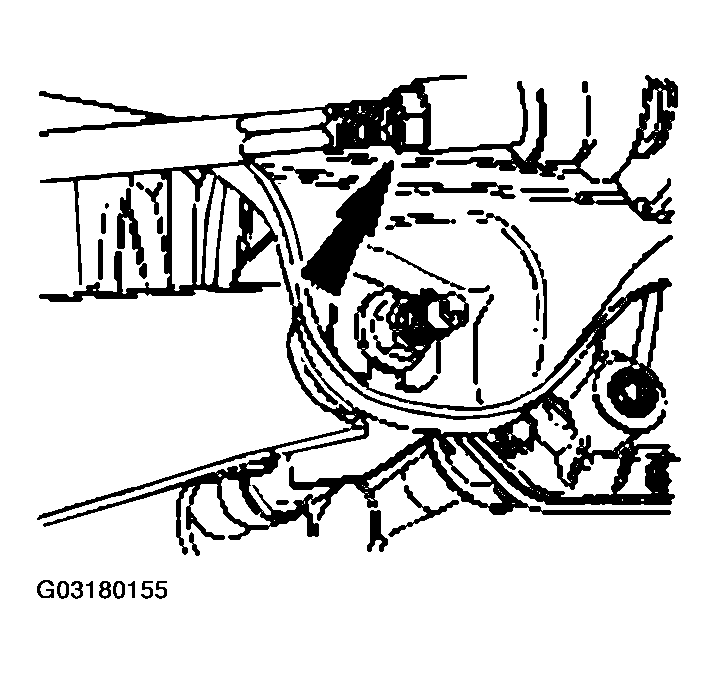

    Fig 1: Identifying Nut And Rear Toe Link Threads
    G03180155Courtesy of FORD MOTOR CO.
  5. While holding the toe link spindle tie-rod, rotate the toe link adjuster.

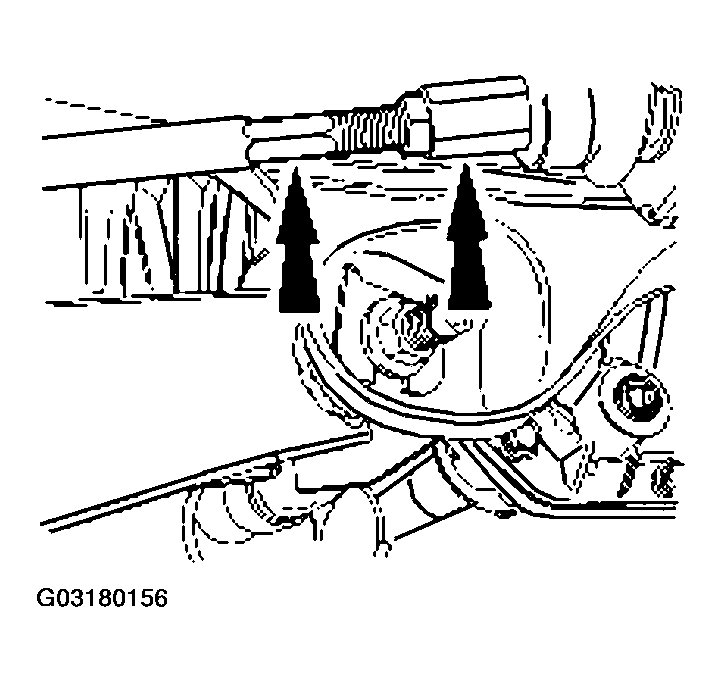

    Fig 2: Rotating Toe Link Adjuster
    G03180156Courtesy of FORD MOTOR CO.
    6. NOTE: Make sure the toe settings are not disturbed while tightening the nuts.

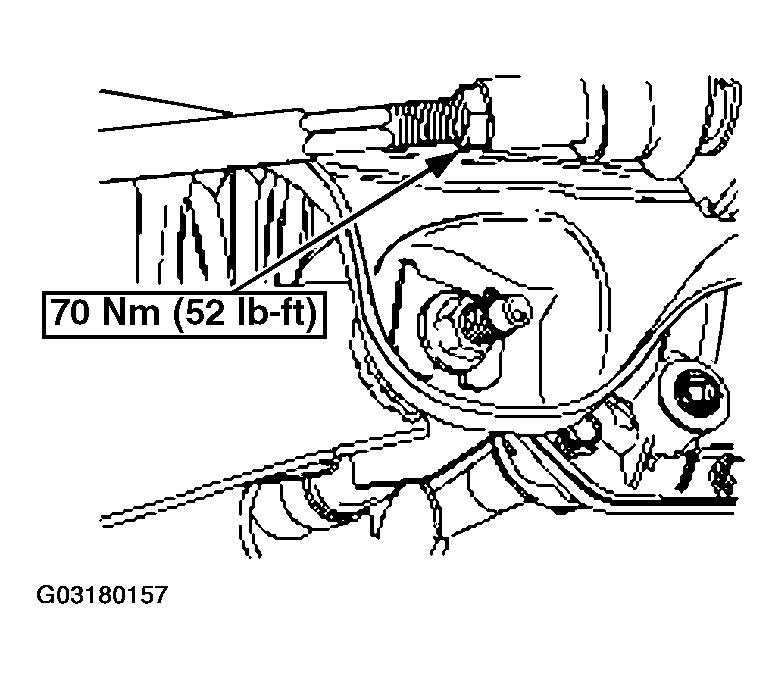

    Fig 3: Tightening Nuts While Holding Adjuster
    G03180157Courtesy of FORD MOTOR CO.
  6. While holding the adjuster, tighten the nuts.
