Pinpoint Test I: Flash Code 2 - Brake Pedal Position Switch Circuit Failure

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

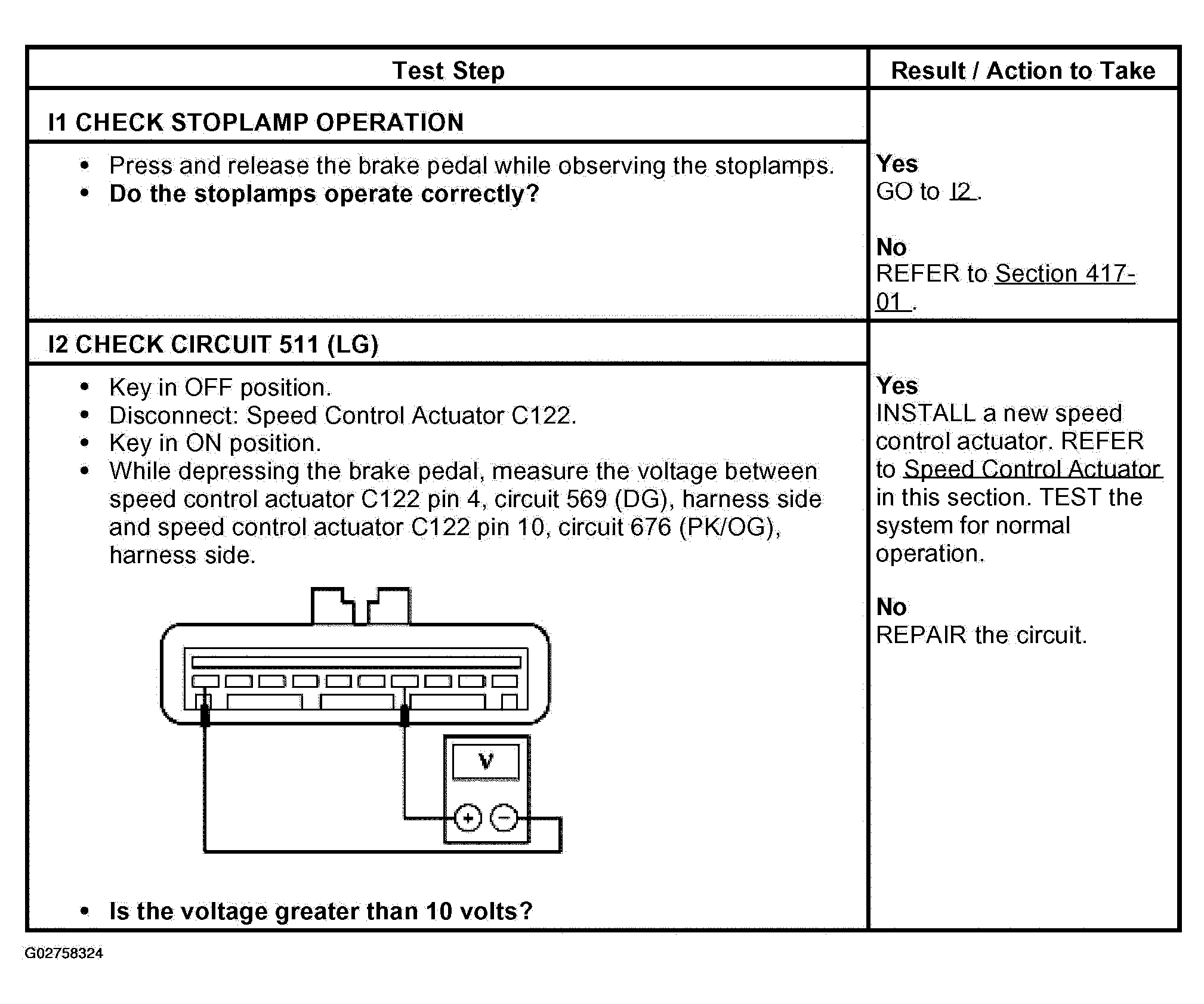

Fig 1: Pinpoint Test I: Flash Code 2 - Brake Pedal Position Switch Circuit Failure (I1 & I2)
G02758324Courtesy of FORD MOTOR CO.
