Identifying Connector (C4014)

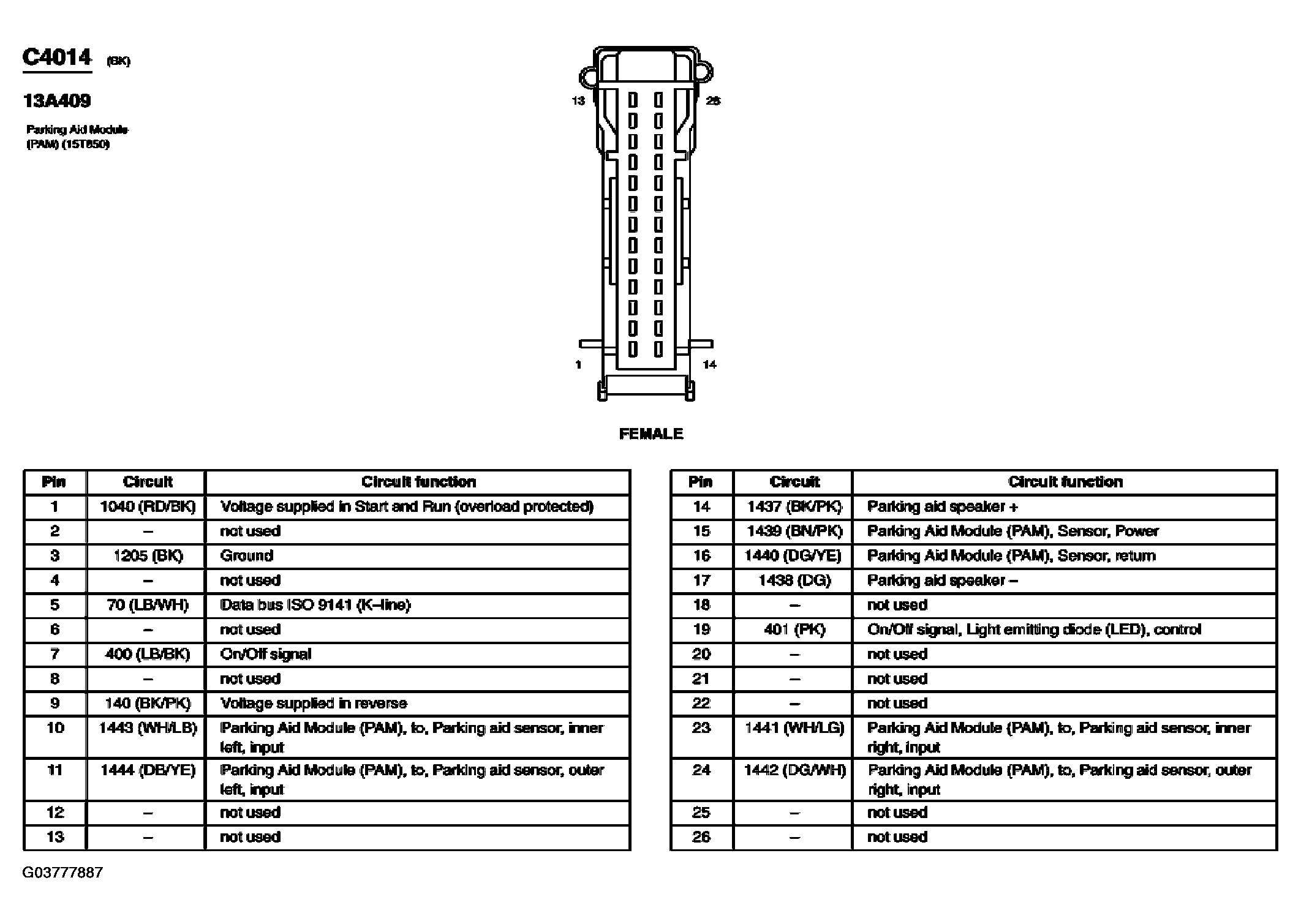

Fig 1: Parking Aid Module (PAM) Connector End View (C4014)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
