Speed Control Switch: Removal

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering wheel. For additional information, refer to STEERING WHEEL .
  2. Remove the steering wheel cover screws.

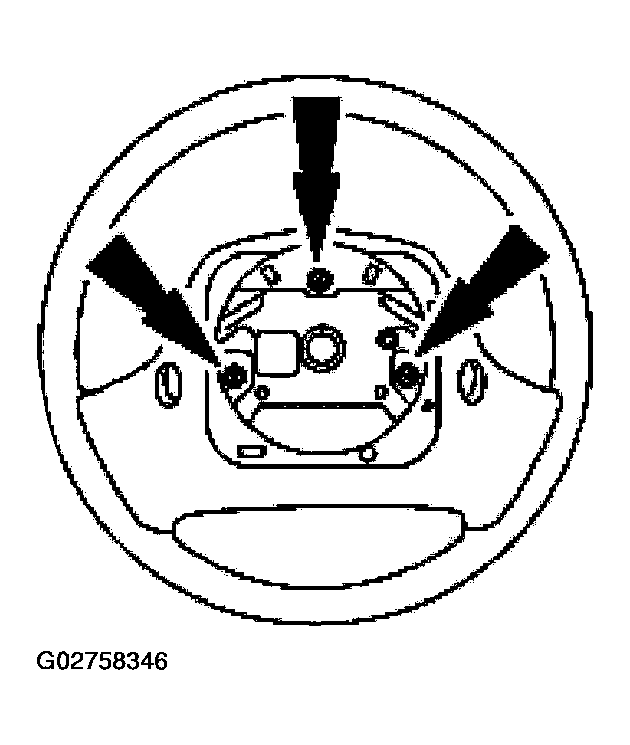

    Fig 1: Removing Steering Wheel Cover Screws
    G02758346Courtesy of FORD MOTOR CO.
  3. Remove the steering wheel cover.
    1. Position the steering wheel cover aside.
    2. Disconnect the electrical connector and wire harness from the steering wheel cover.

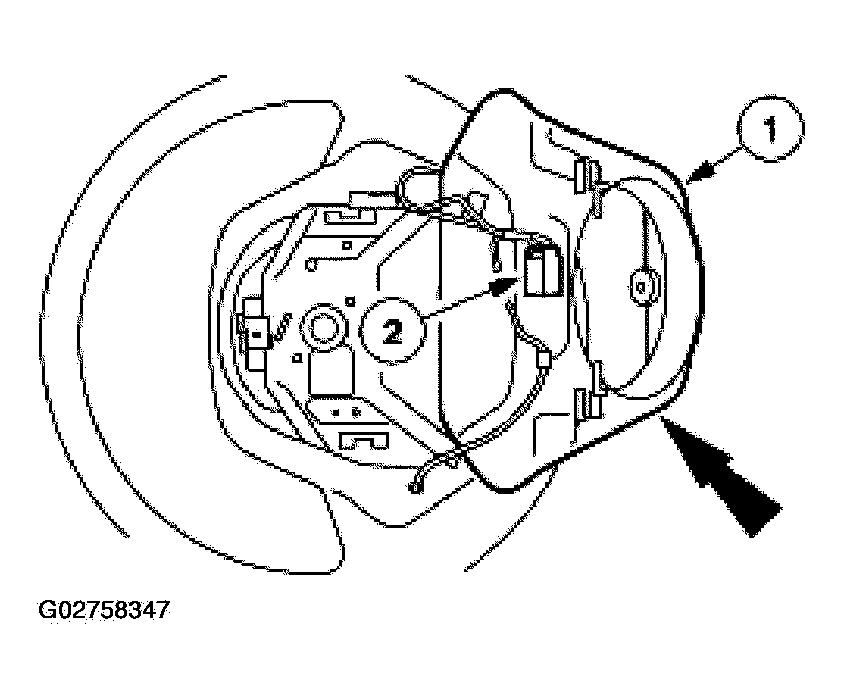

    Fig 2: Disconnecting Electrical Connector And Wire Harness From Steering Wheel Cover
    G02758347Courtesy of FORD MOTOR CO.
  4. Remove the speed control actuator switches.
    1. Push the speed control actuator switches out towards the face of the steering wheel.
    2. Position the speed control actuator switches through the steering wheel openings and remove.

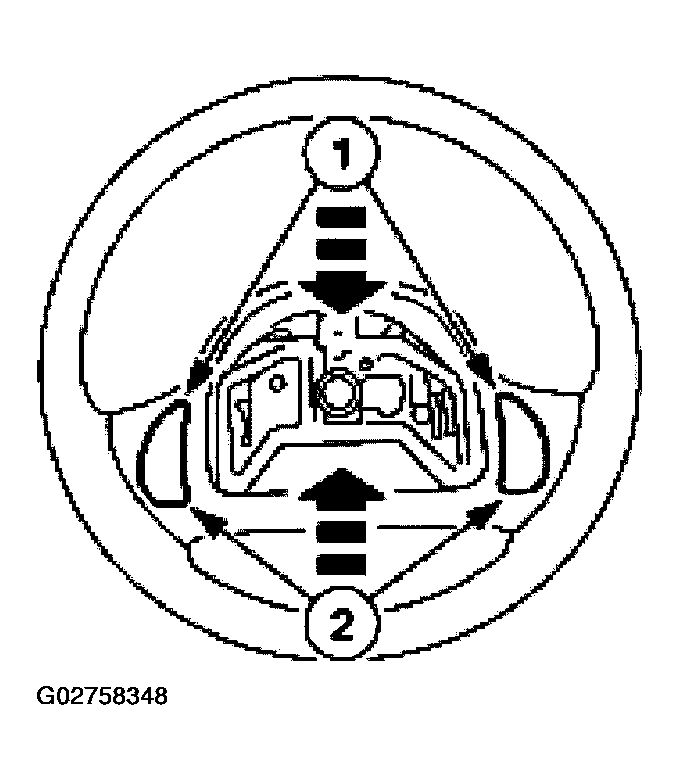

    Fig 3: Positioning Speed Control Actuator Switches Through Steering Wheel Openings And Remove
    G02758348Courtesy of FORD MOTOR CO.
