Multifunction Switch, Turn Portion

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

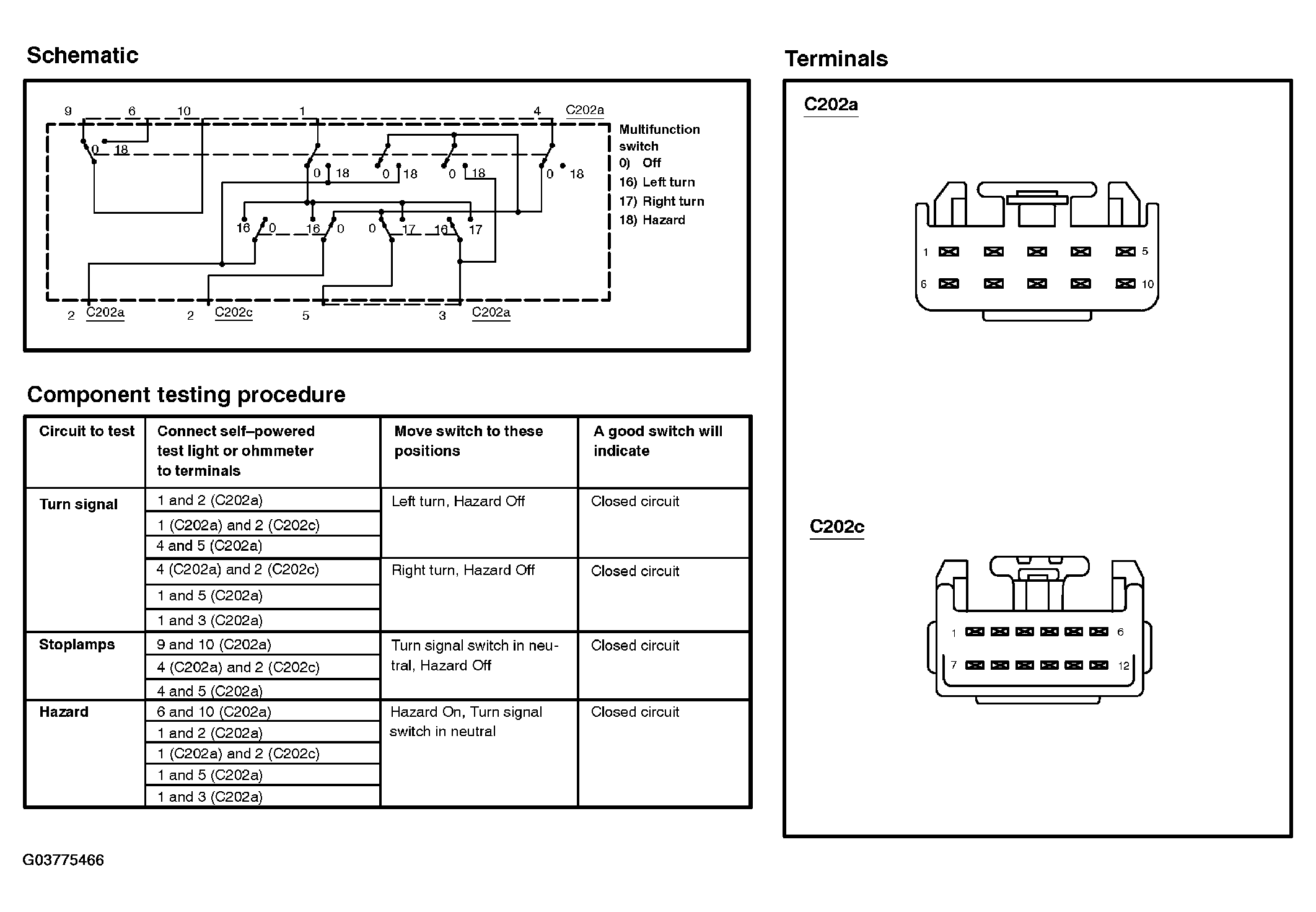

Fig 1: Testing Multifunction Switch - Turn Portion
G03775466Courtesy of FORD MOTOR CO.
