Relay - Micro ISO: Notes

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

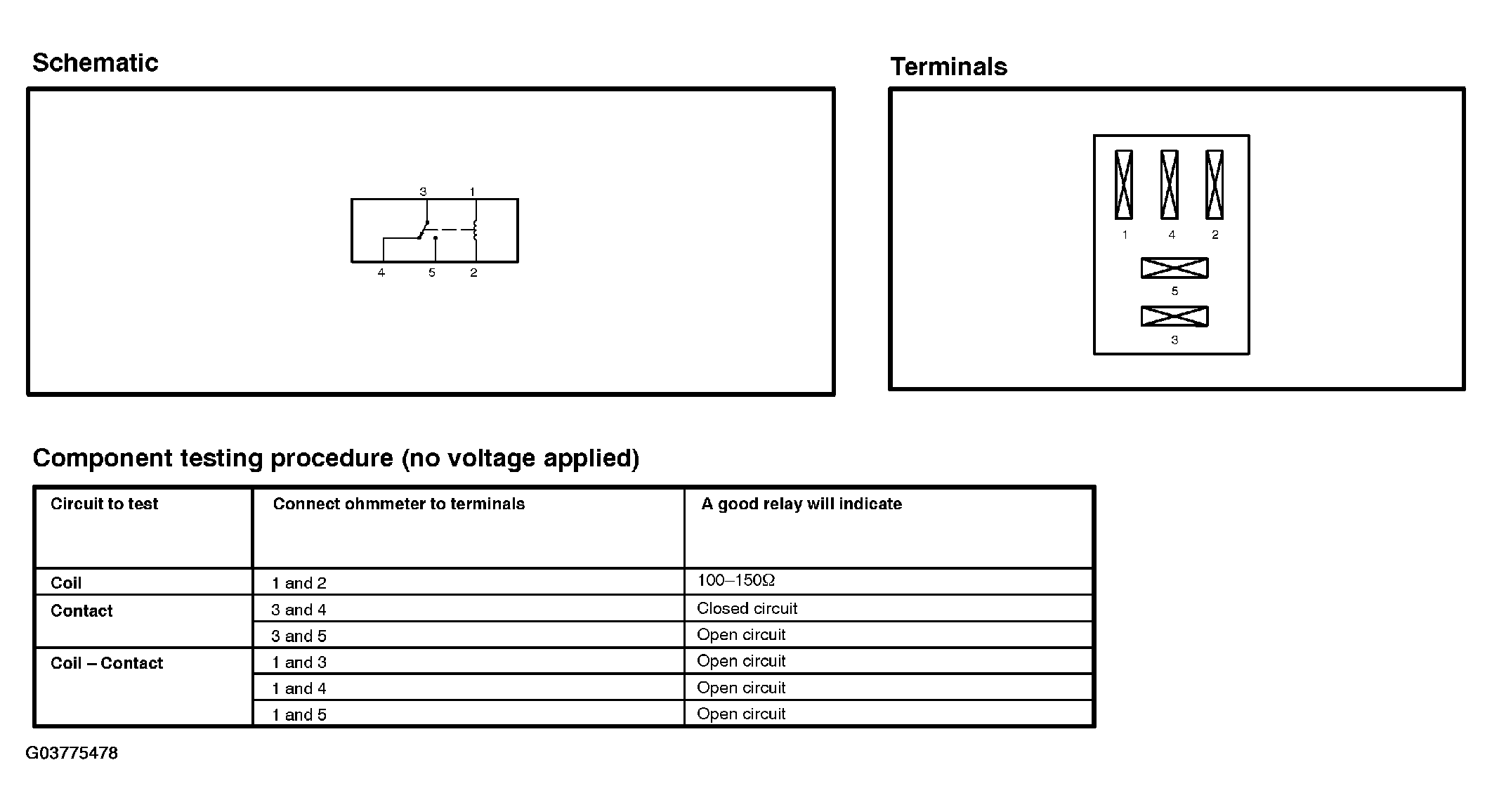

Fig 1: Testing Relay - Micro ISO
G03775478Courtesy of FORD MOTOR CO.
