Item 13: Tilt Lever Assembly Note

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a small amount of grease to the tilt lever cam mating surface, making sure to fill the grooves.

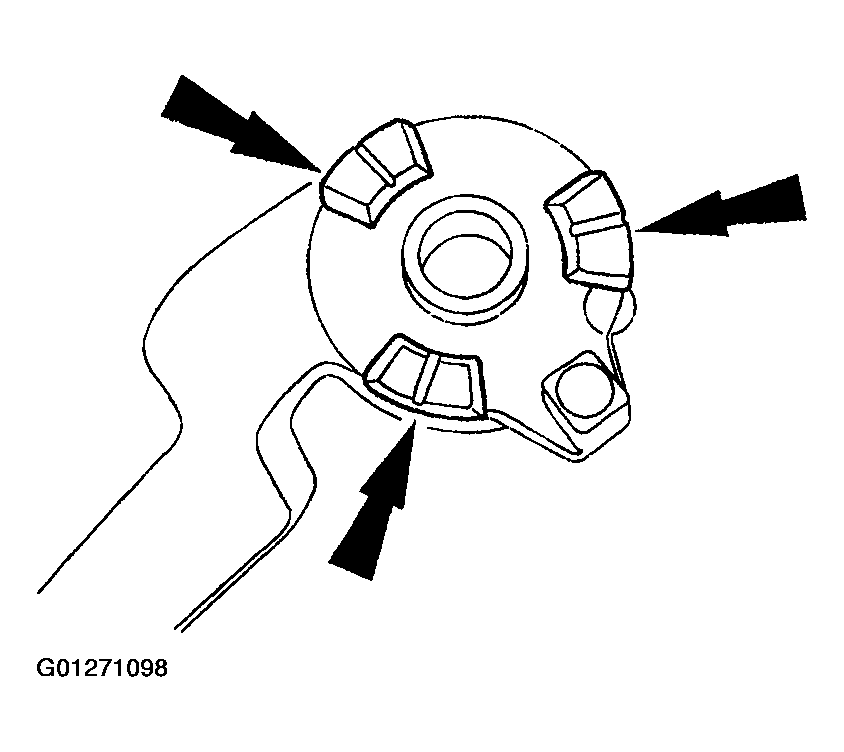

    Fig 1: Locating Tilt Lever Cam Mating Surface
    G01271098Courtesy of FORD MOTOR CO.
