Speedometer Calibration

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

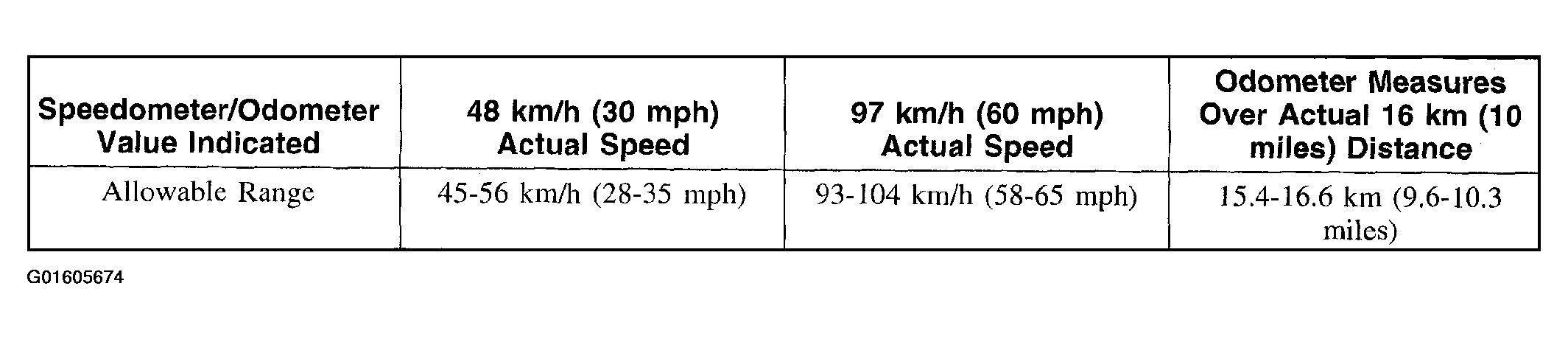

Fig 1: Speedometer Calibration
G01605674Courtesy of FORD MOTOR CO.
