Climate Control System Air Conditioning Components - 4.6L

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

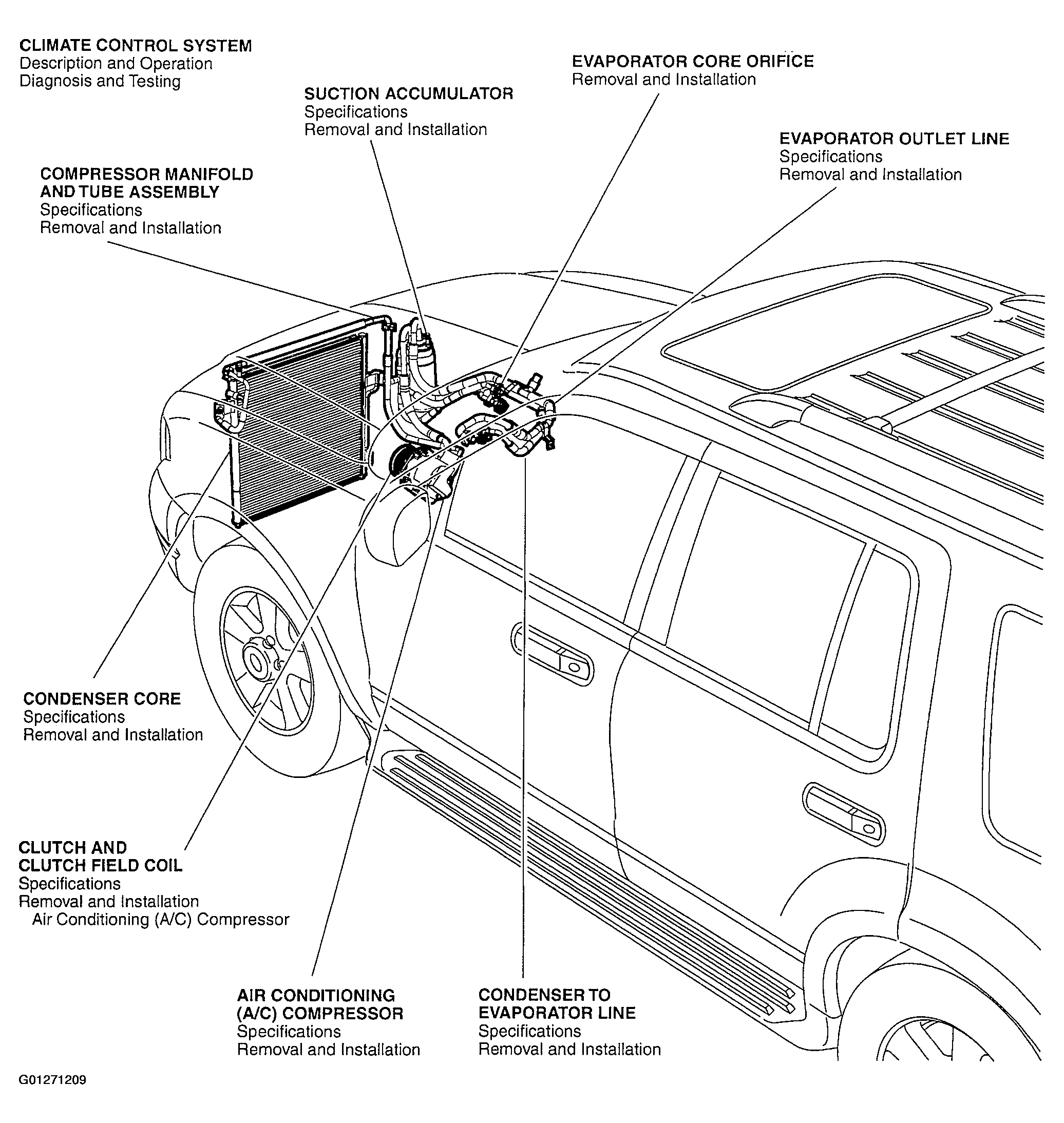

Fig 1: Identifying Climate Control System Air Conditioning Components Location - 4.6L
G01271209Courtesy of FORD MOTOR CO.
