Auxiliary A/C Relay

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

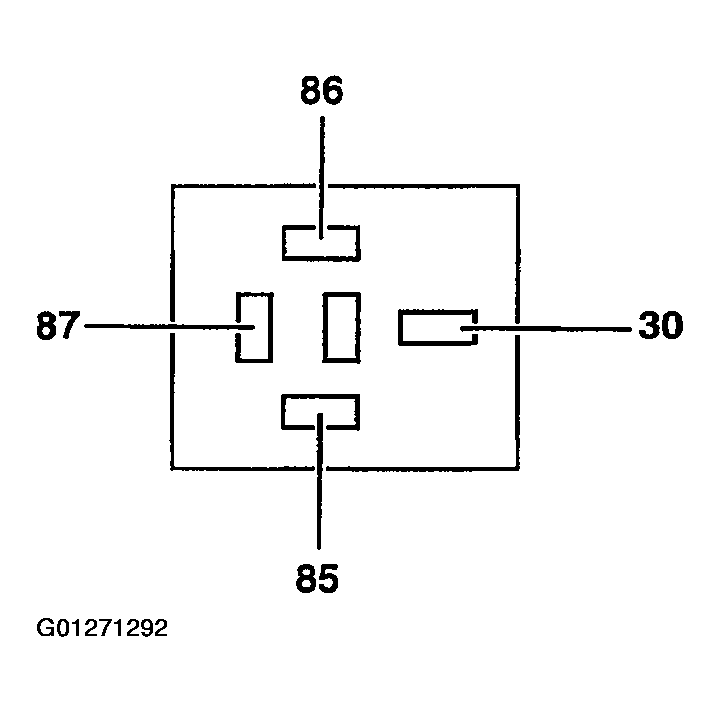

Fig 1: Identifying Auxiliary A/C Relay (1 Of 2)
G01271292Courtesy of FORD MOTOR CO.

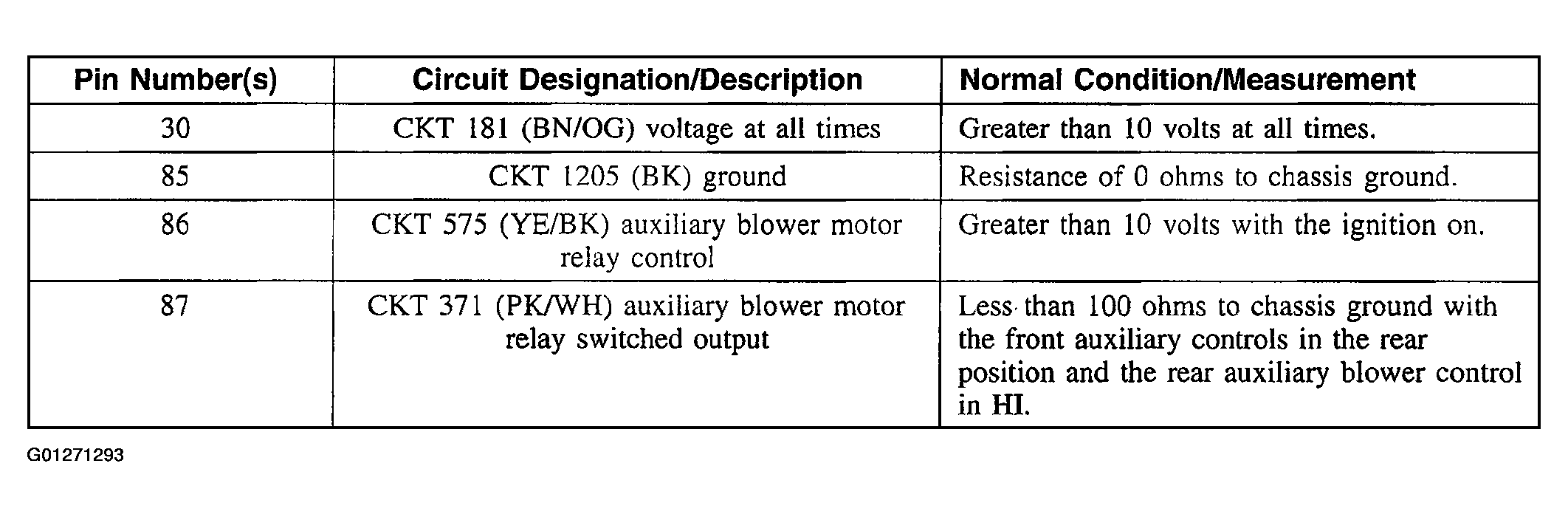

Fig 2: Identifying Auxiliary A/C Relay (2 Of 2)
G01271293Courtesy of FORD MOTOR CO.
