DATC Module C228b

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

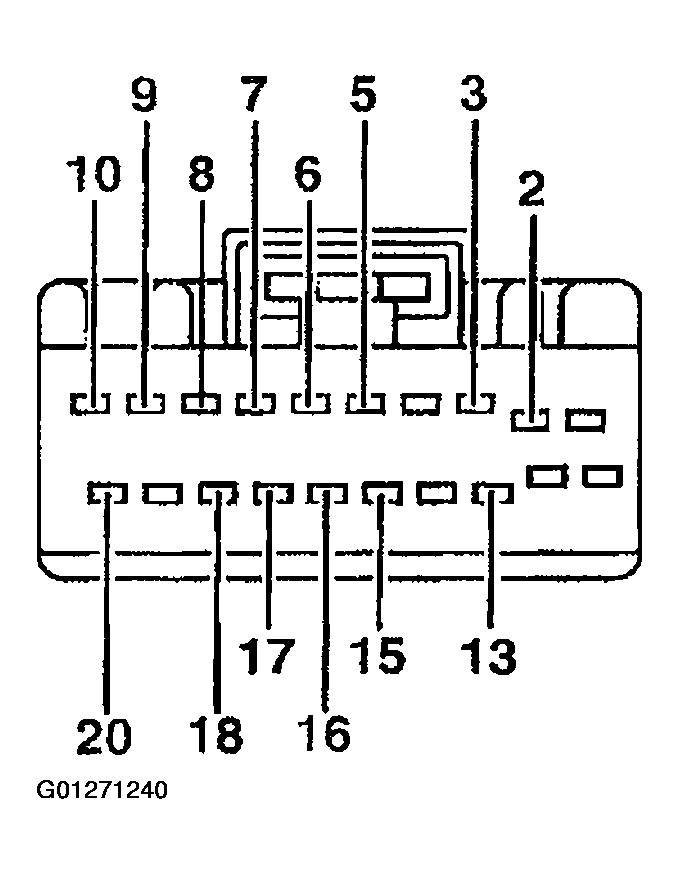

Fig 1: Identifying DATC Module C228b Terminal View (1 Of 3)
G01271240Courtesy of FORD MOTOR CO.

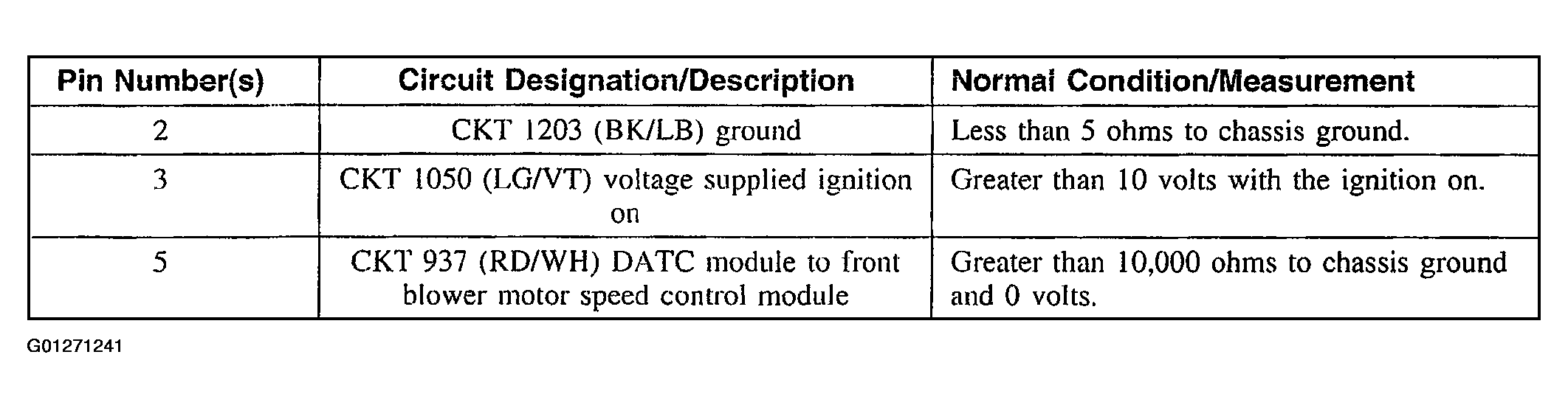

Fig 2: Identifying DATC Module C228B Terminal View (2 Of 3)
G01271241Courtesy of FORD MOTOR CO.

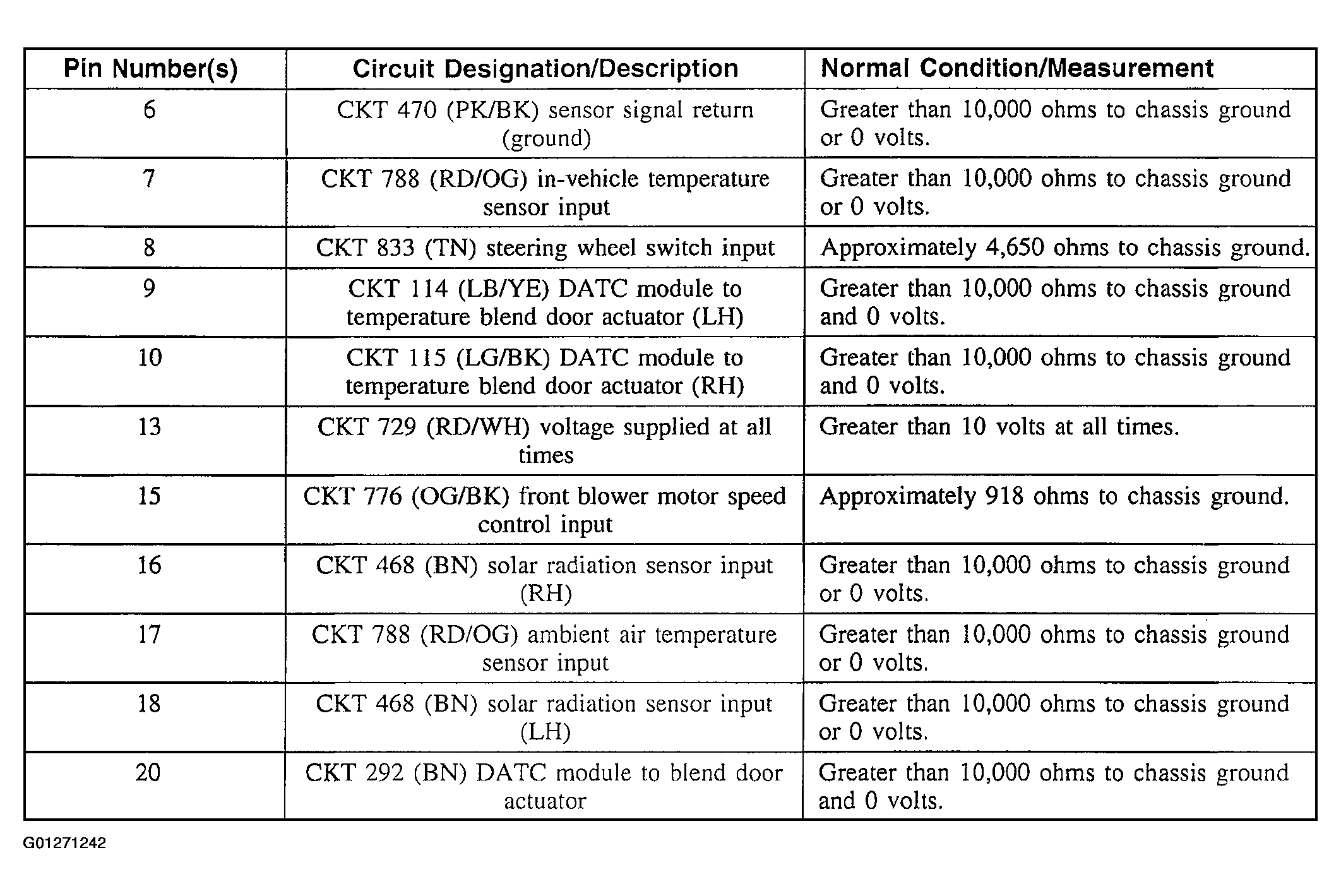

Fig 3: Identifying DATC Module C228B Terminal View (3 Of 3)
G01271242Courtesy of FORD MOTOR CO.
