Pinpoint Test F: No Communication With The Dual Automatic Temperature Control (DATC) Module: Testing

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

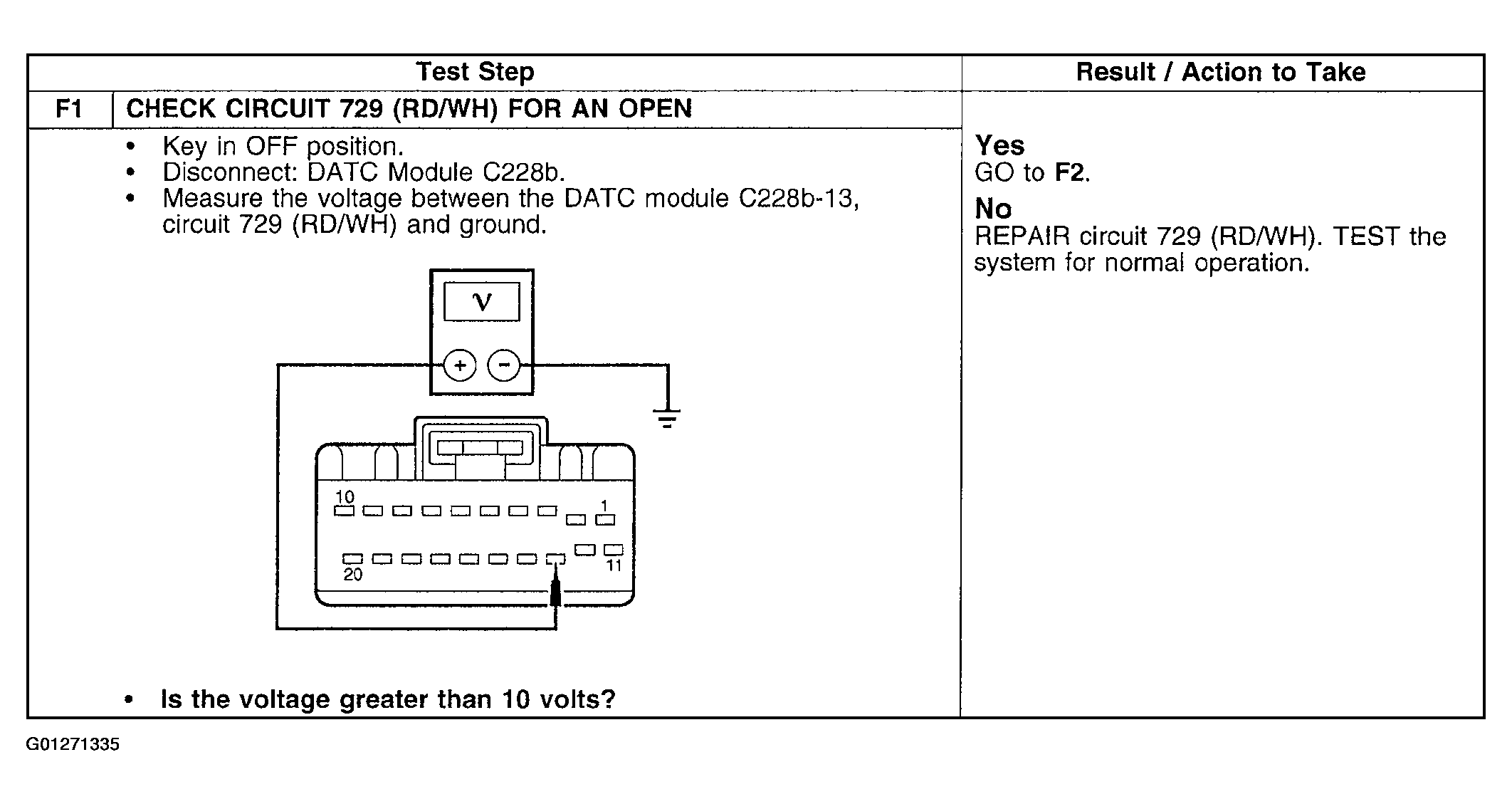

Fig 1: Pinpoint Test F: No Communication With Dual Automatic Temperature Control Module (F1)

Courtesy of FORD MOTOR CO.

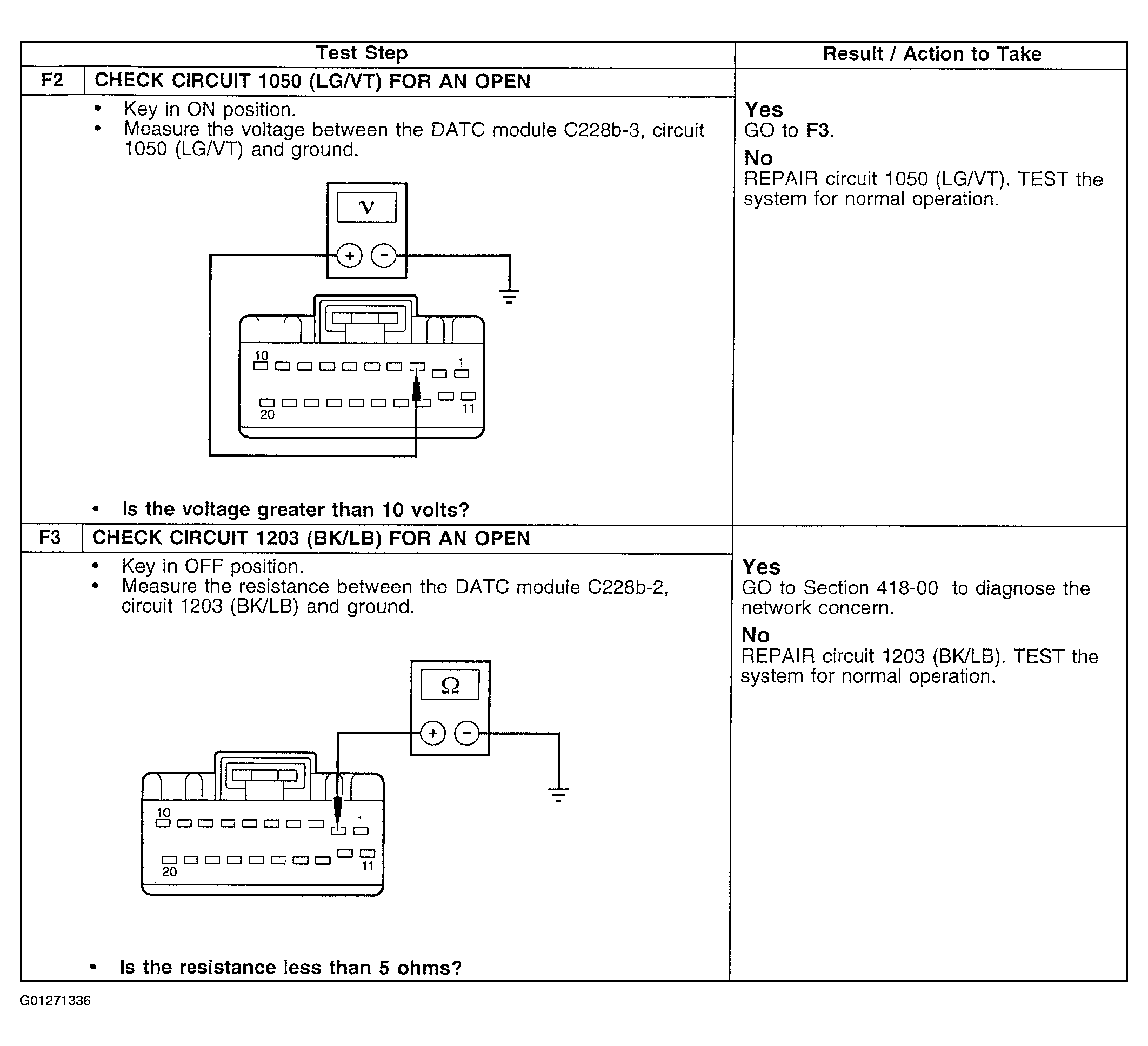

Fig 2: Pinpoint Test F: No Communication With Dual Automatic Temperature Control Module (F2 - F3)

Courtesy of FORD MOTOR CO.
