Pinpoint Test X: The Temperature Control Is Inoperative Using The Rear Auxiliary Climate Controls: Testing

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Carry out this test only if the front auxiliary climate control assembly temperature control operates correctly.

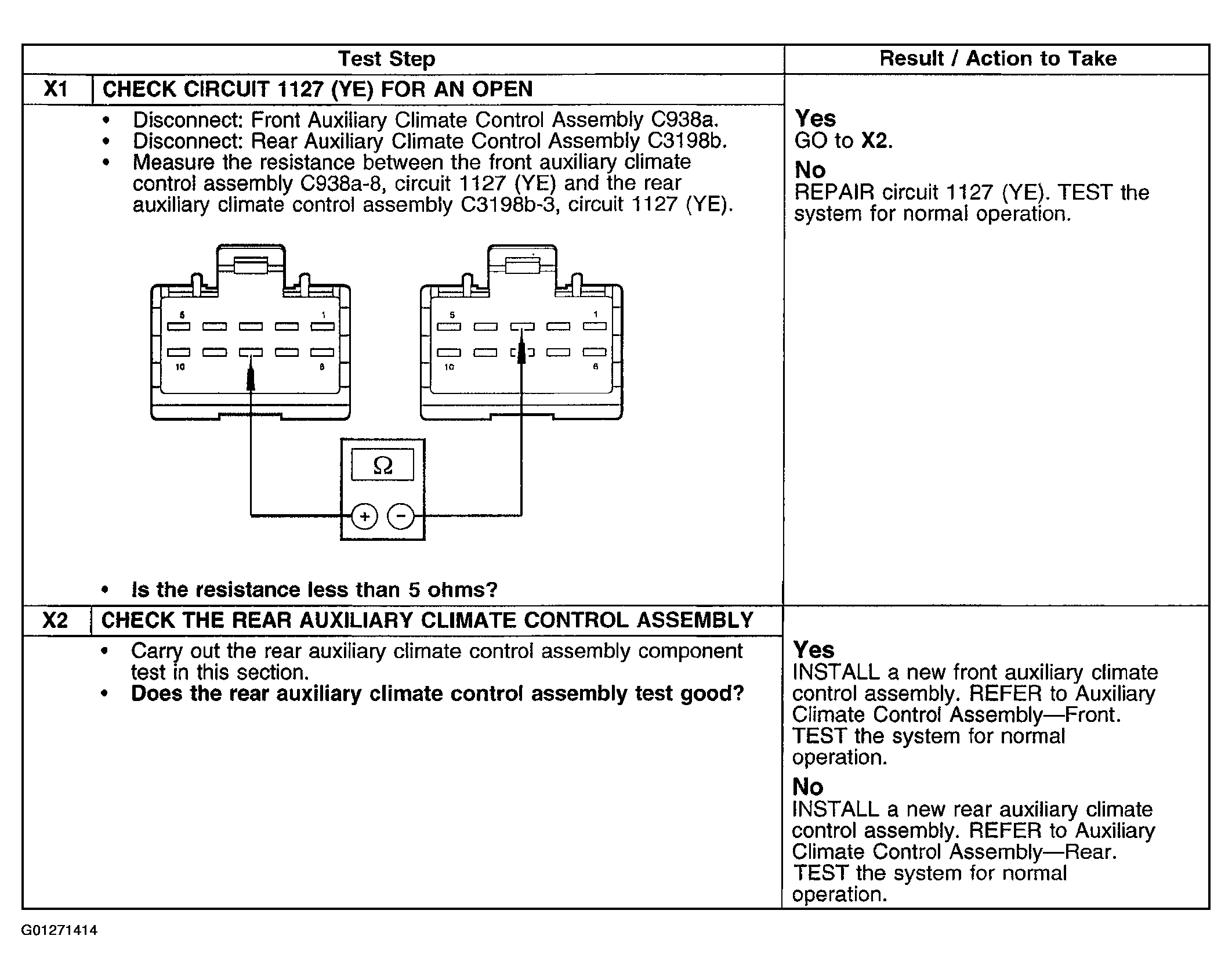

Fig 1: Pinpoint Test X: Temperature Control Is Inoperative Using Rear Auxiliary Climate Controls (X1 - X2)

Courtesy of FORD MOTOR CO.
