Spring Lock Coupling: Connect

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Install the A/C tube lock coupling spring.

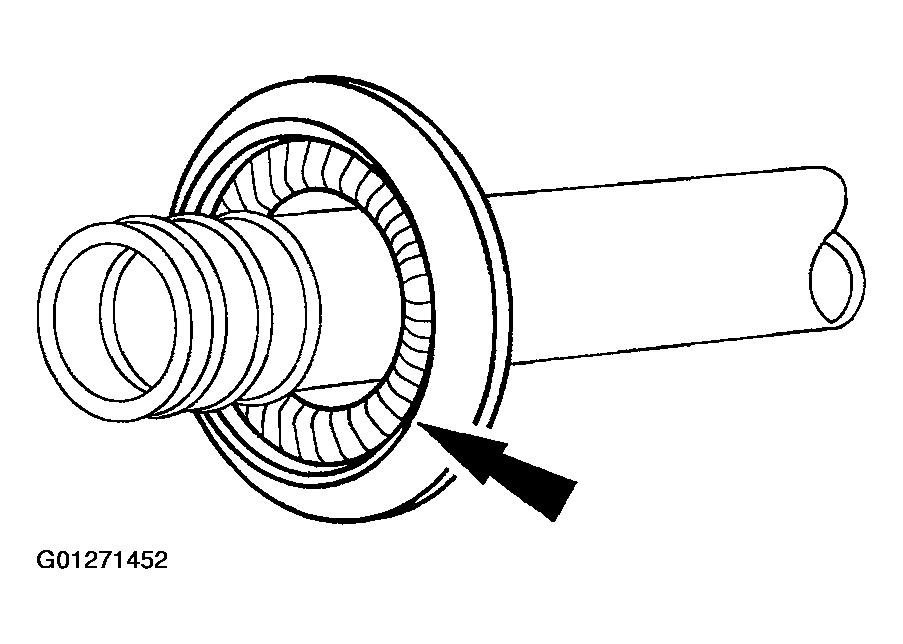

Fig 1: Installing A/C Tube Lock Coupling Spring
Courtesy of FORD MOTOR CO.
Lubricate the inside of the coupling with PAG Refrigerant Compressor Oil (R-134a Systems) or equivalent.

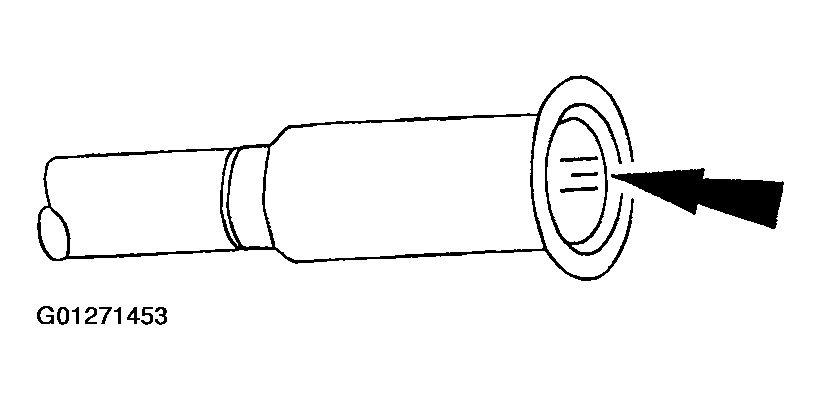

Fig 2: Lubricating Inside Of Coupling With PAG Refrigerant Compressor Oil
Courtesy of FORD MOTOR CO.

CAUTION: Use only the new O-ring seals. The use of any O-ring seals other than those specified in the Ford Master Parts Catalog may result in intermittent leakage during vehicle operation.

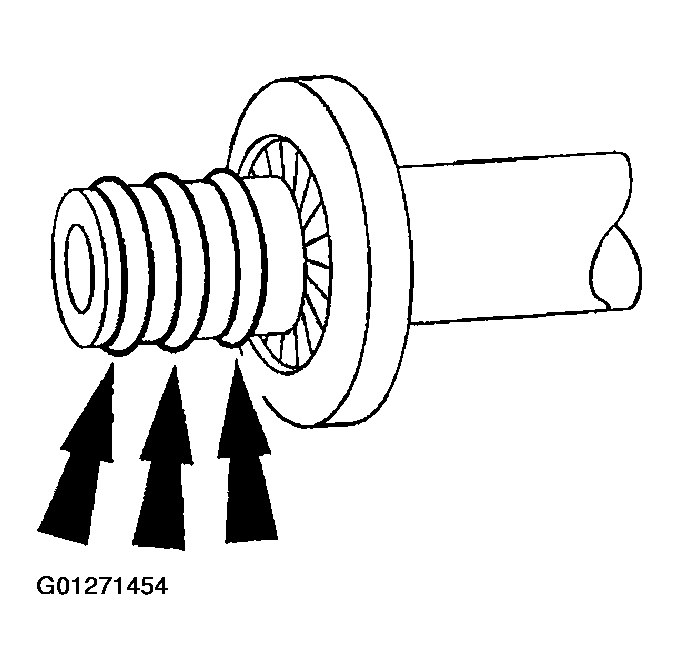

Fig 3: Lubricating O-Ring Seals With PAG Refrigerant Compressor Oil

Courtesy of FORD MOTOR CO.

Install the O-ring seals.
- Lubricate the O-ring seals with PAG Refrigerant Compressor Oil (R-134a Systems) or equivalent.
Connect the spring lock coupling fittings with a twisting motion until the A/C tube lock coupling spring snaps over the flared end of the female fitting.

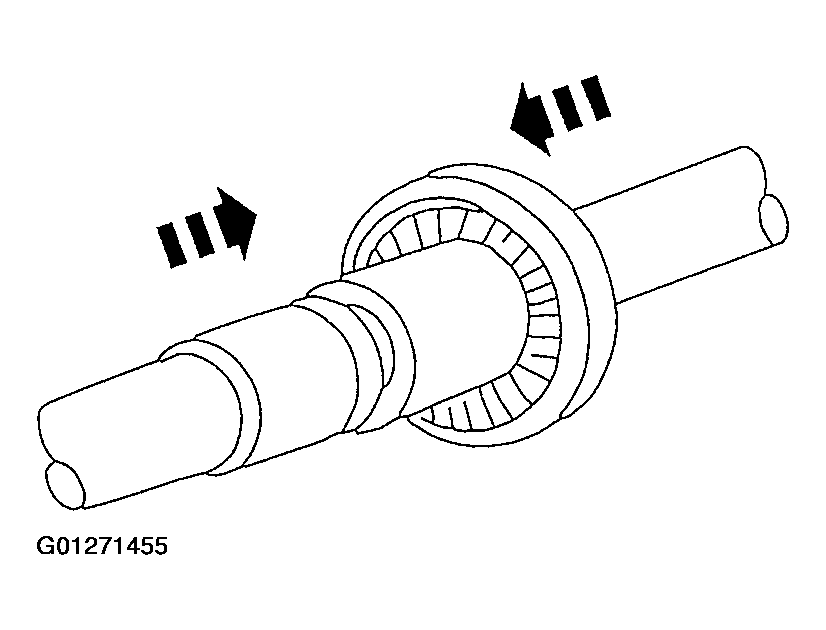

Fig 4: Connecting Spring Lock Coupling Fittings
Courtesy of FORD MOTOR CO.
Install the A/C tube lock coupling clip.

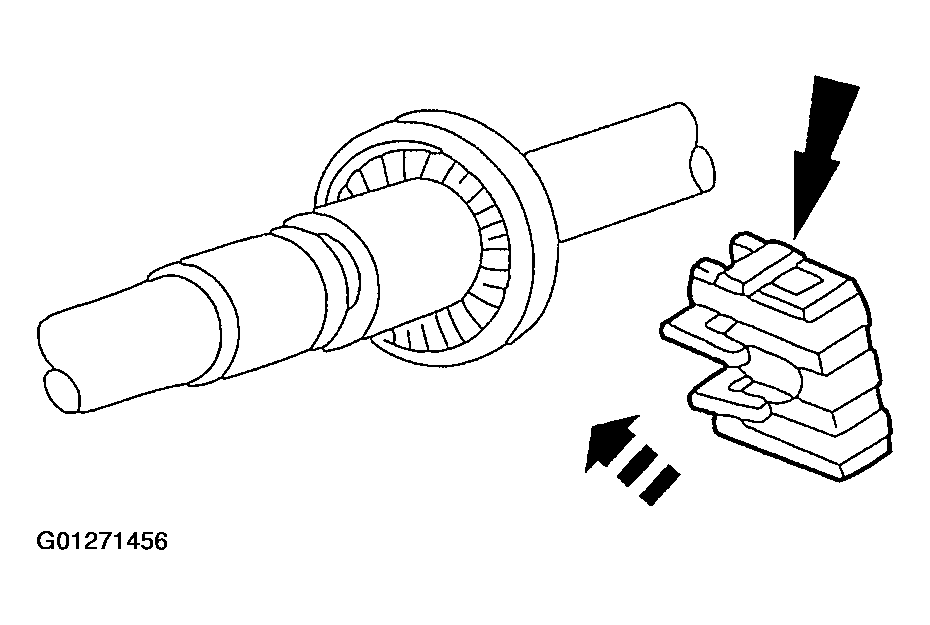

Fig 5: Installing A/C Tube Lock Coupling Clip
Courtesy of FORD MOTOR CO.
