Special Tool(s)

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

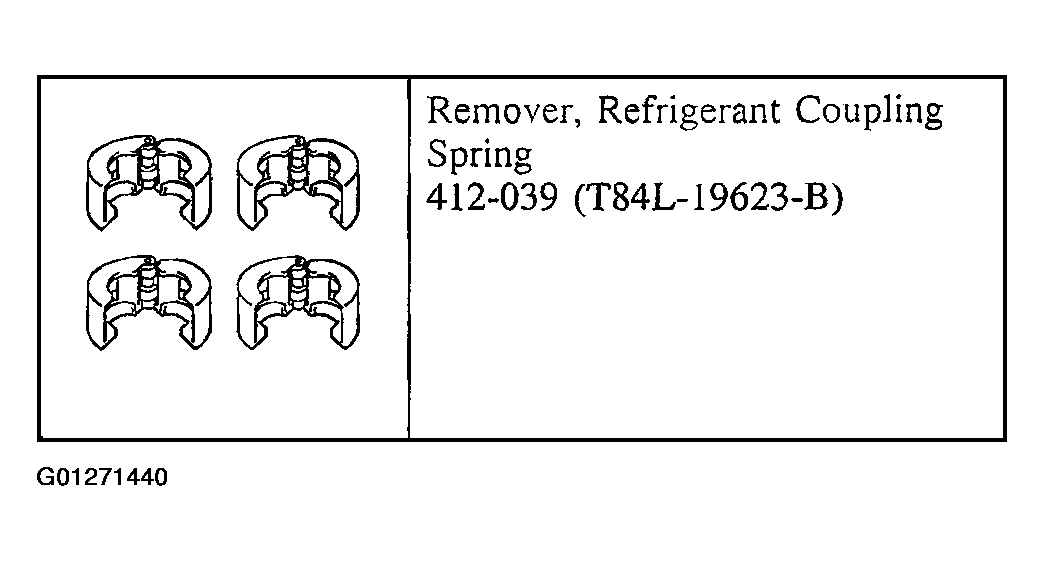

Fig 1: Identifying Spring Lock Coupling Special Tool
G01271440Courtesy of FORD MOTOR CO.
