Multifunction Switch, Wiper/Washer Portion

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

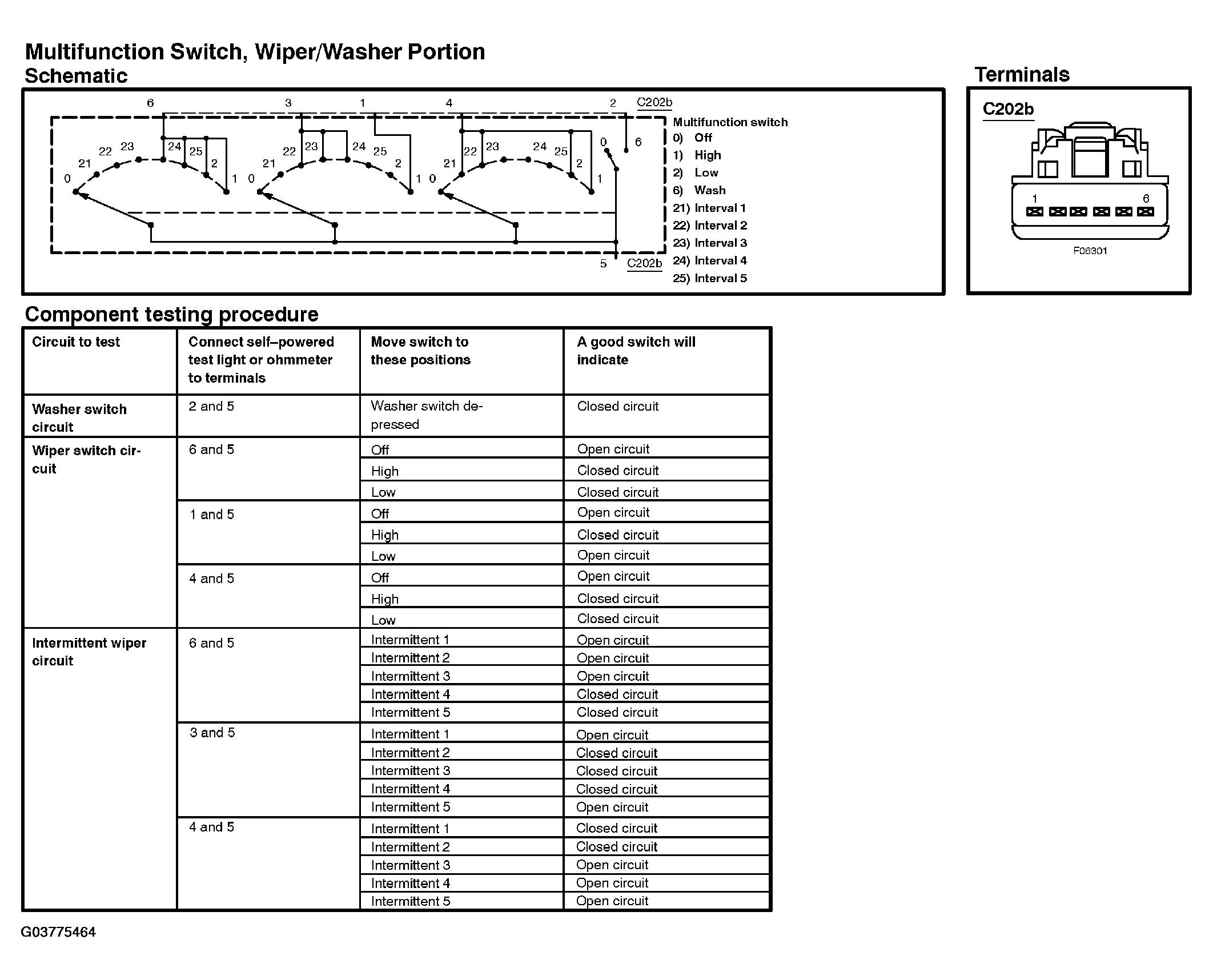

Fig 1: Testing Multifunction Switch - Wiper/Washer Portion
G03775464Courtesy of FORD MOTOR CO.
