DATC

CLIMATE CONTROL ASSEMBLY - DATC

REMOVAL

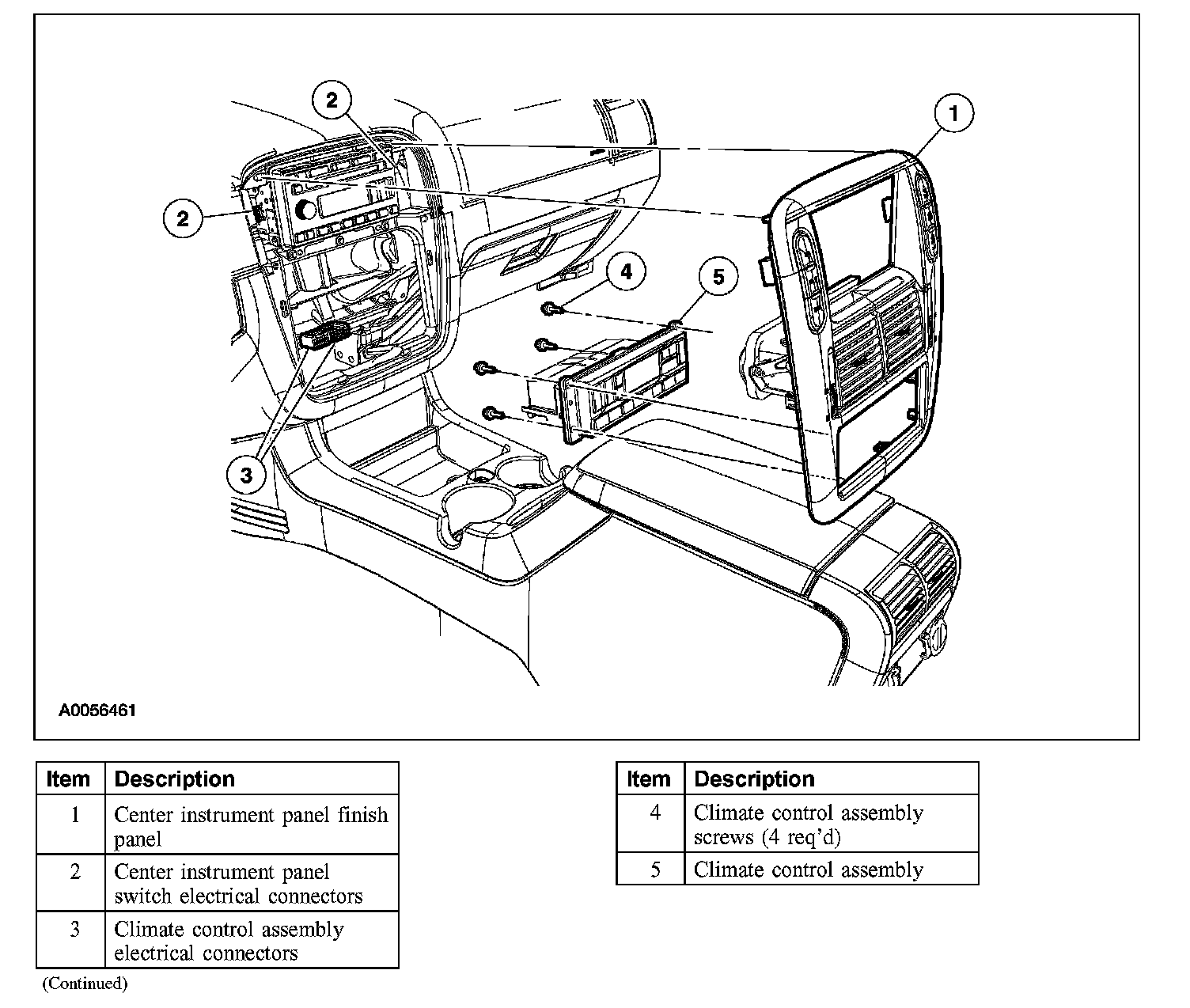

1. Remove the parts in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
