ABS Control Module Diagnostic Trouble Code (DTC) Index

Anti-Lock Brake System (ABS) Module Diagnostic Trouble Code (DTC) Index

NOTE: If DTC B2900, C1805 and U1900 are set at the time, diagnose the concern for U1900 first.

NOTE: DTC C1730 (Reference Voltage Out Of Range) must be repaired before DTC C1279, C1280, C1281, C1282, C1288, C1289.

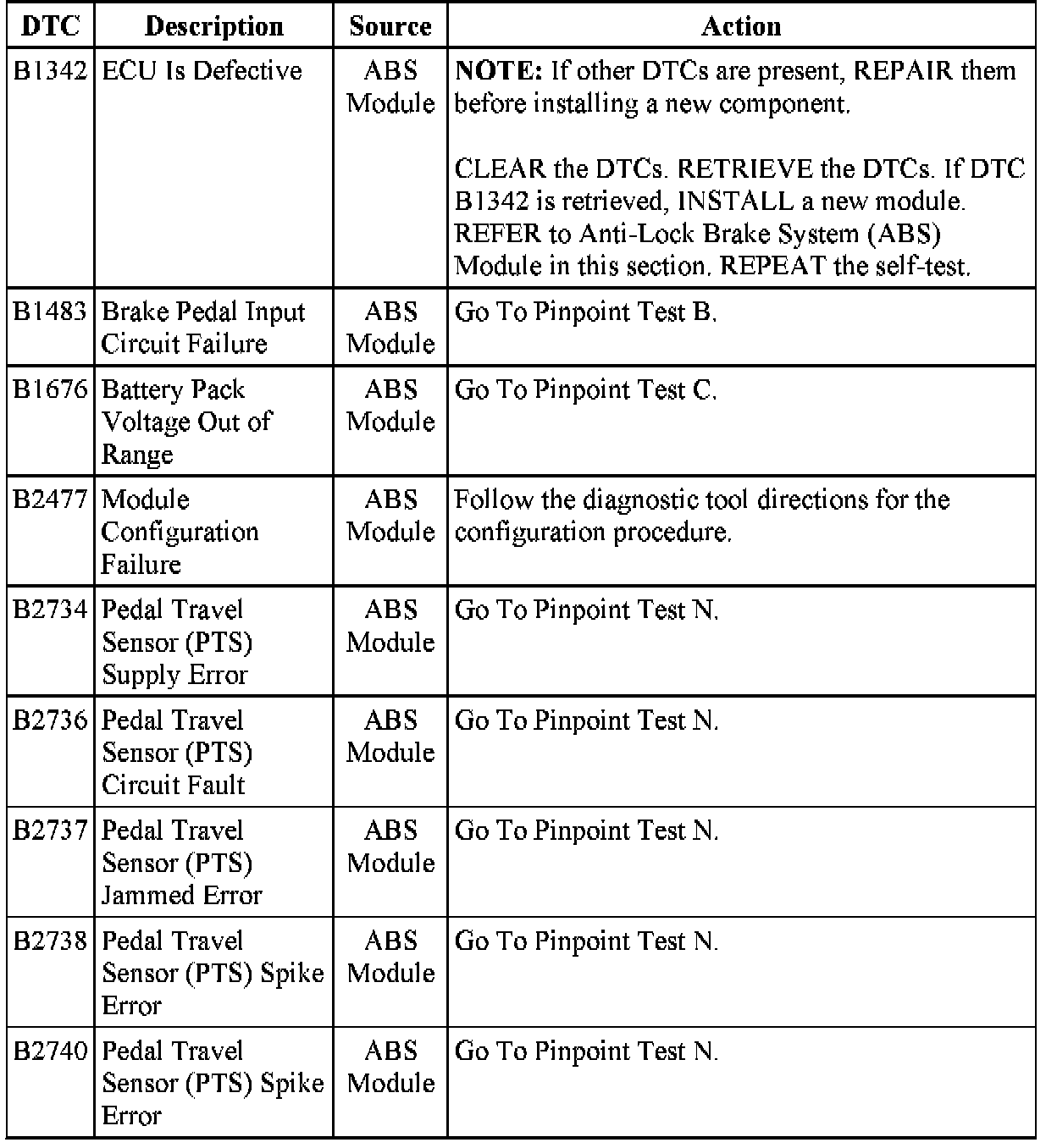

1 Of 5:

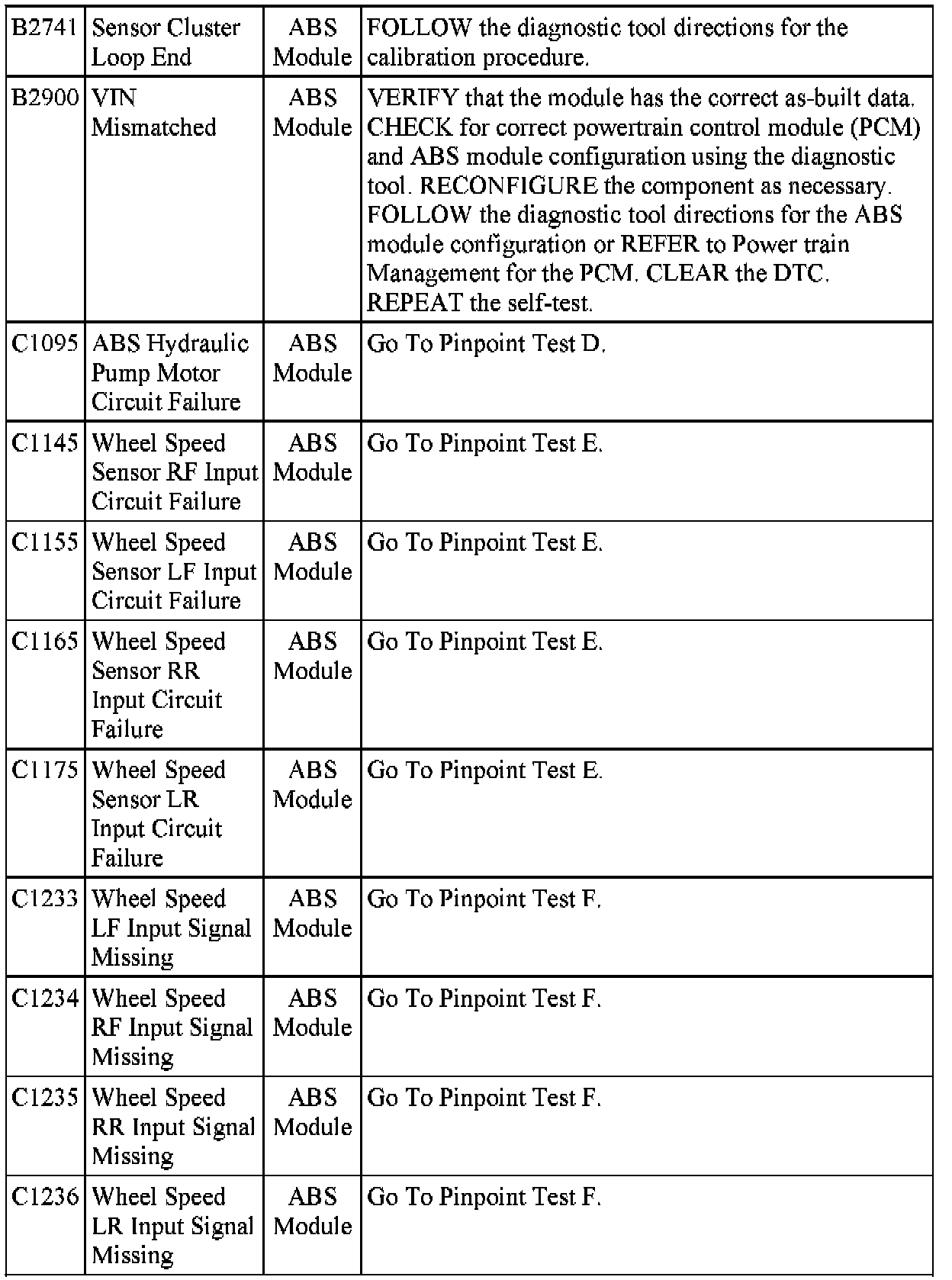

2 Of 5:

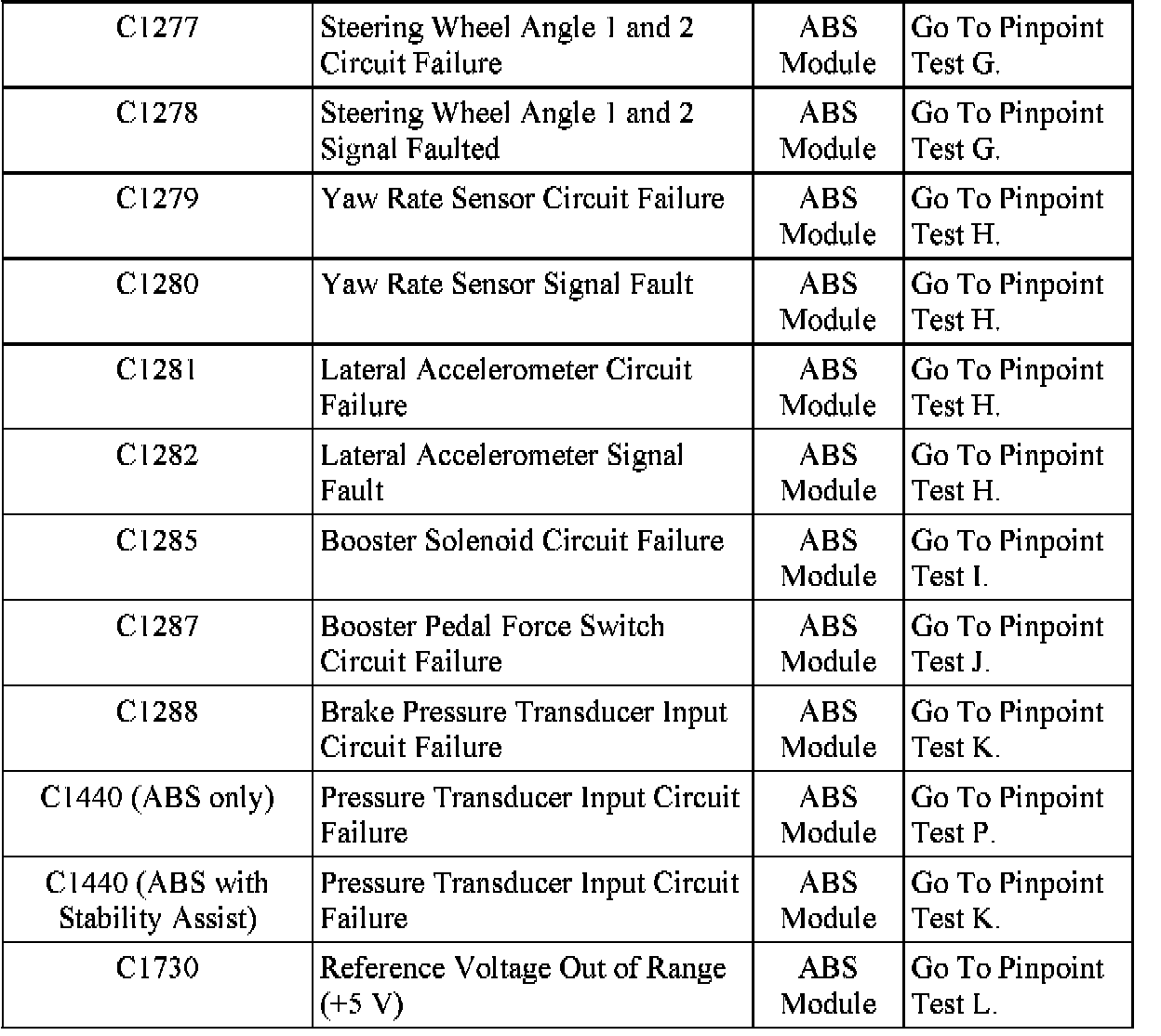

3 Of 5:

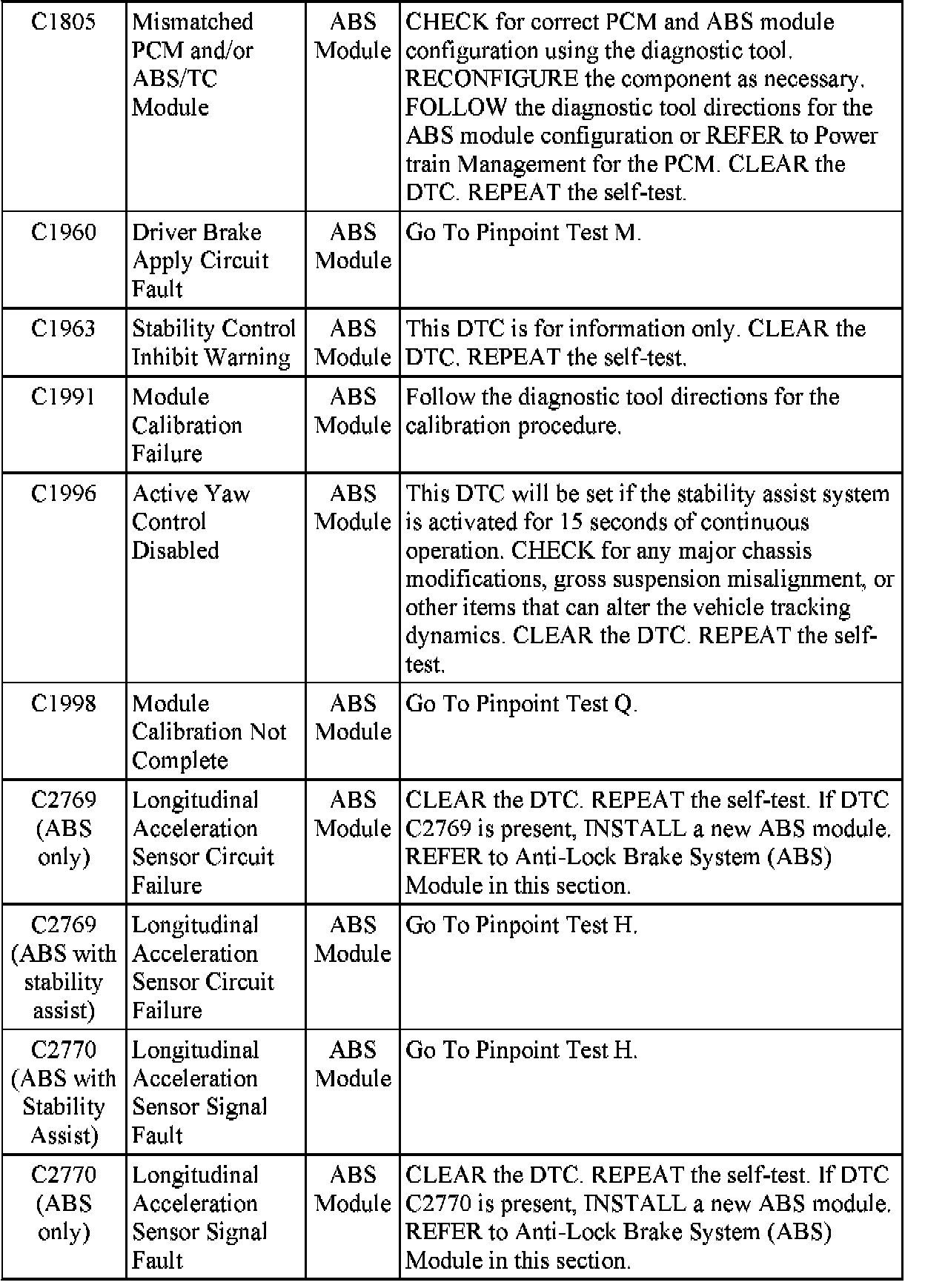

4 Of 5:

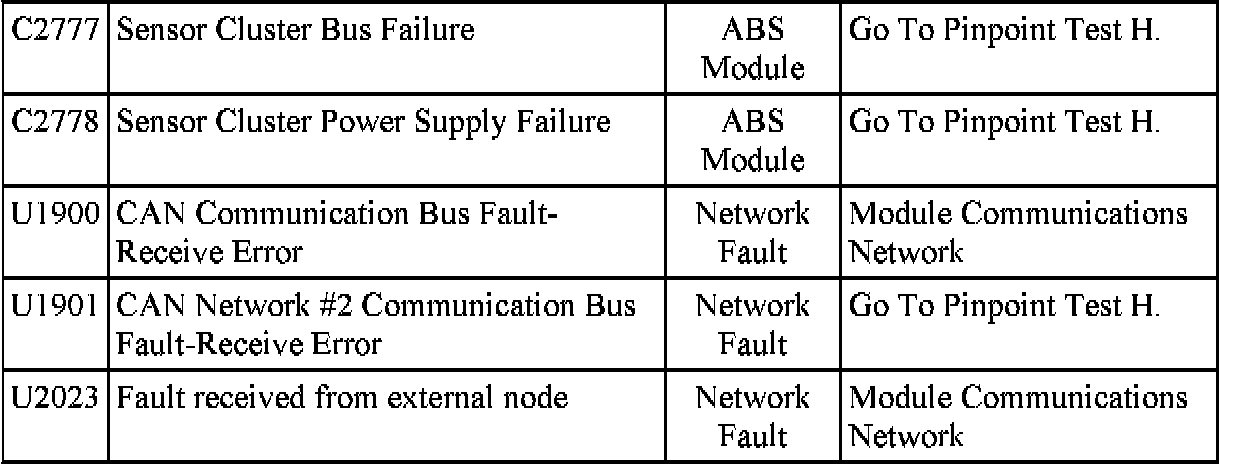

5 Of 5:
