Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00257254

Courtesy of FORD MOTOR CO.

Fig 2: Engine Compartment

G00257255

Courtesy of FORD MOTOR CO.

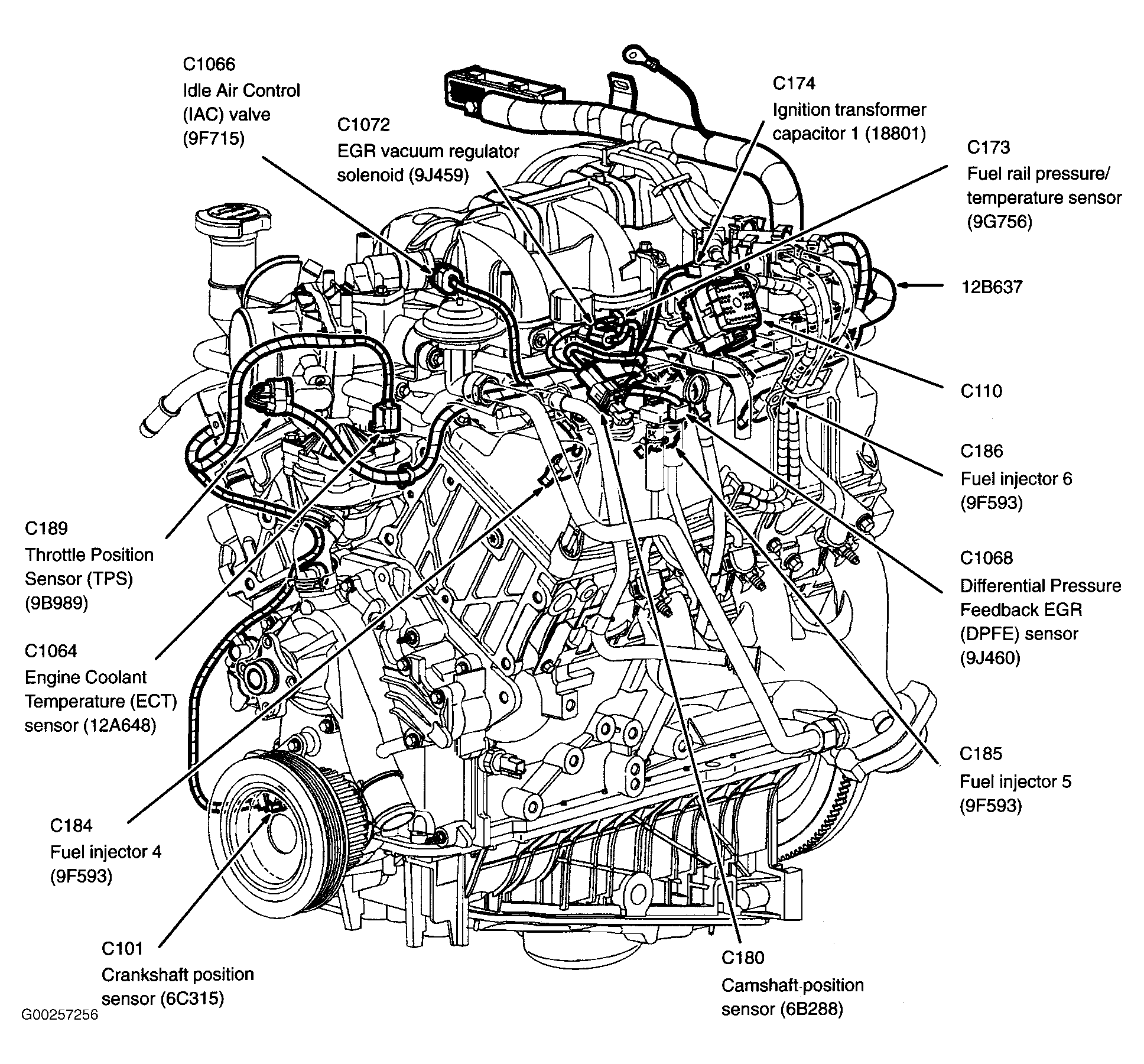

Fig 3: Front Of Engine

G00257256

Courtesy of FORD MOTOR CO.

Fig 4: Rear Of Engine

G00257257

Courtesy of FORD MOTOR CO.

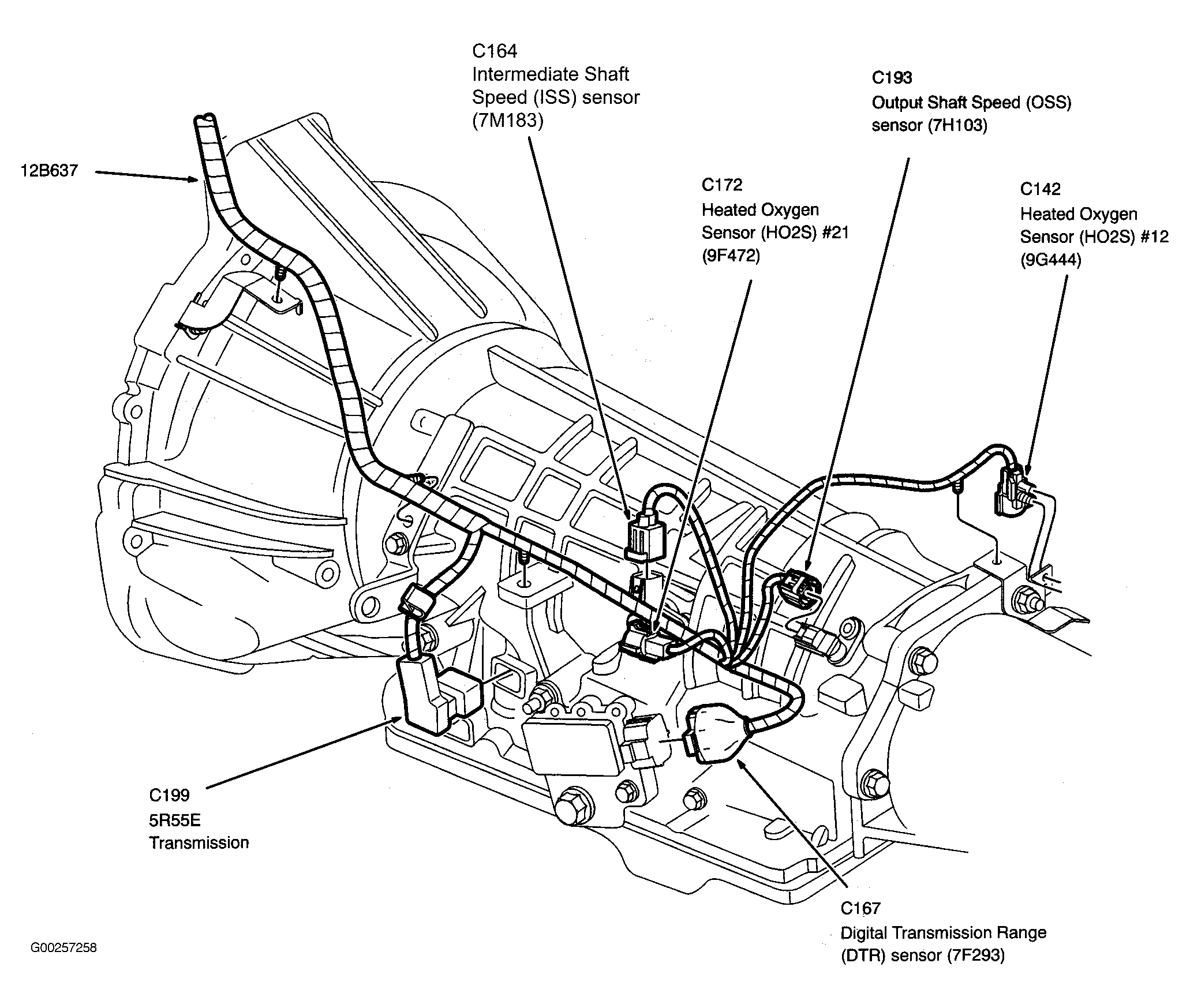

Fig 5: Transmission

G00257258

Courtesy of FORD MOTOR CO.

Fig 6: Steering Column

G00257259

Courtesy of FORD MOTOR CO.

Fig 7: Rear Of Dash

G00257260

Courtesy of FORD MOTOR CO.

Fig 8: Rear Of Dash

G00257261

Courtesy of FORD MOTOR CO.

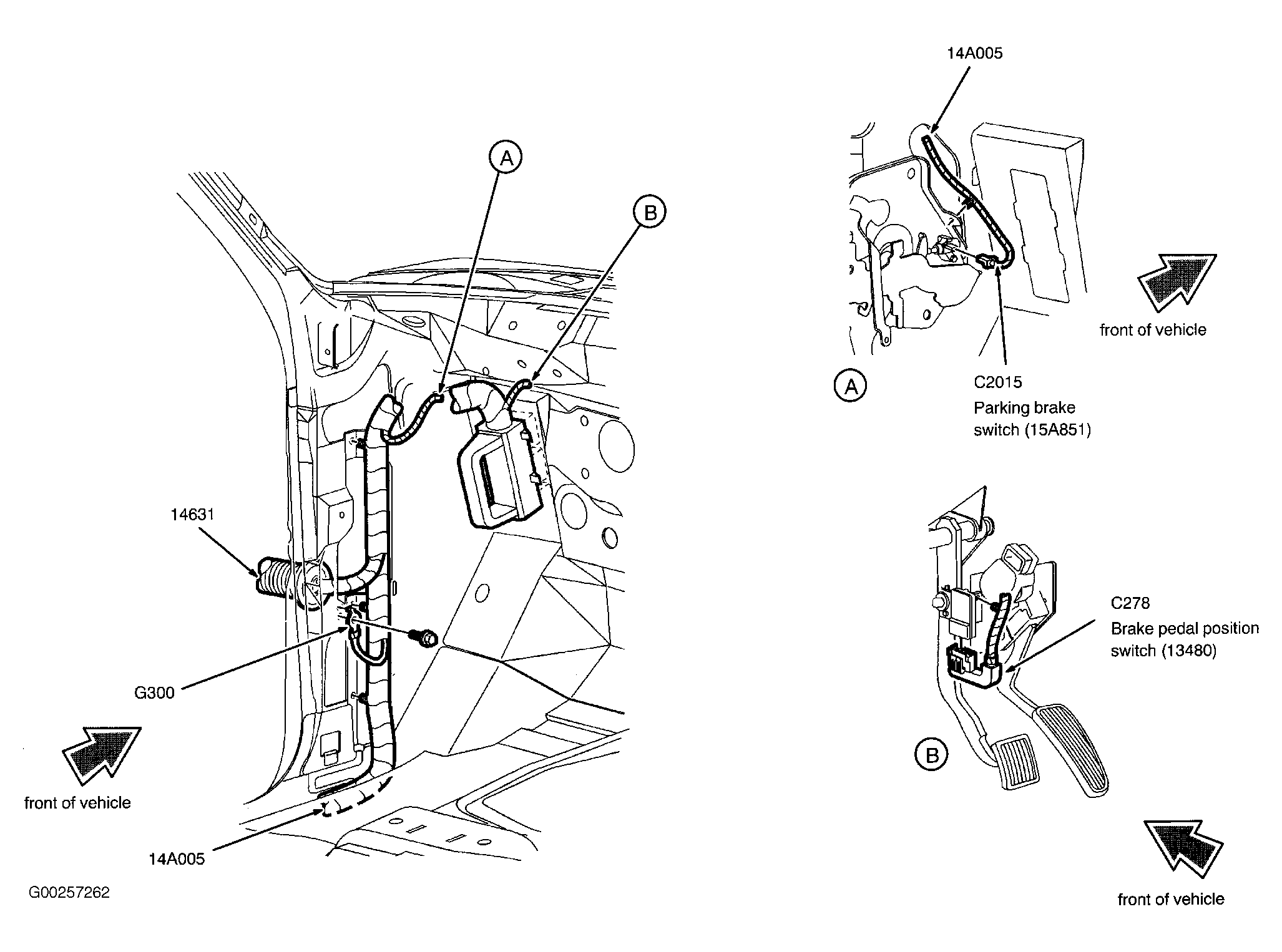

Fig 9: Left Kick Panel

G00257262

Courtesy of FORD MOTOR CO.

Fig 10: Right Kick Panel

G00257263

Courtesy of FORD MOTOR CO.

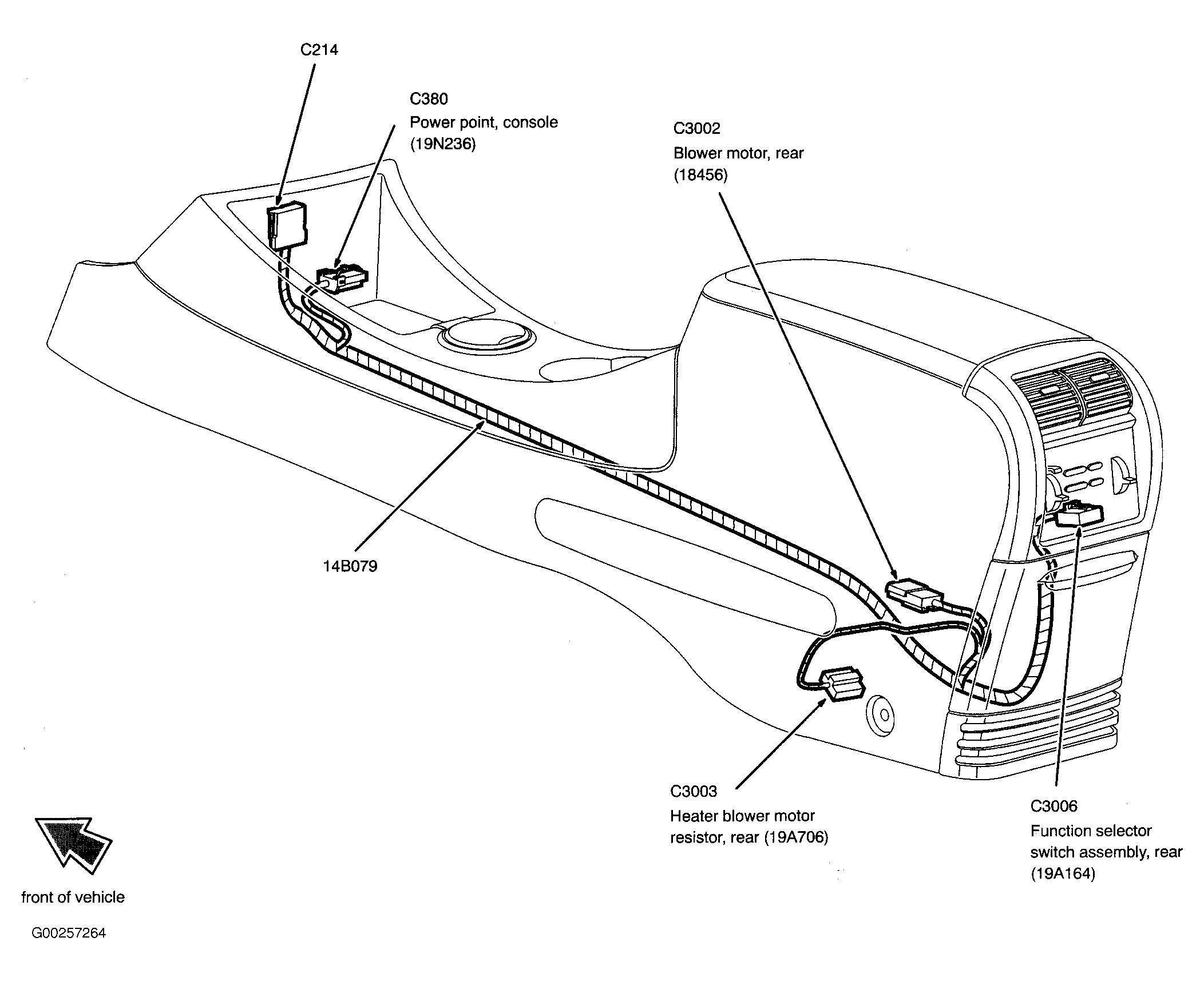

Fig 11: Center Console

G00257264

Courtesy of FORD MOTOR CO.

Fig 12: Full View Of Vehicle

G00257265

Courtesy of FORD MOTOR CO.

Fig 13: Full View Of Vehicle

G00257266

Courtesy of FORD MOTOR CO.

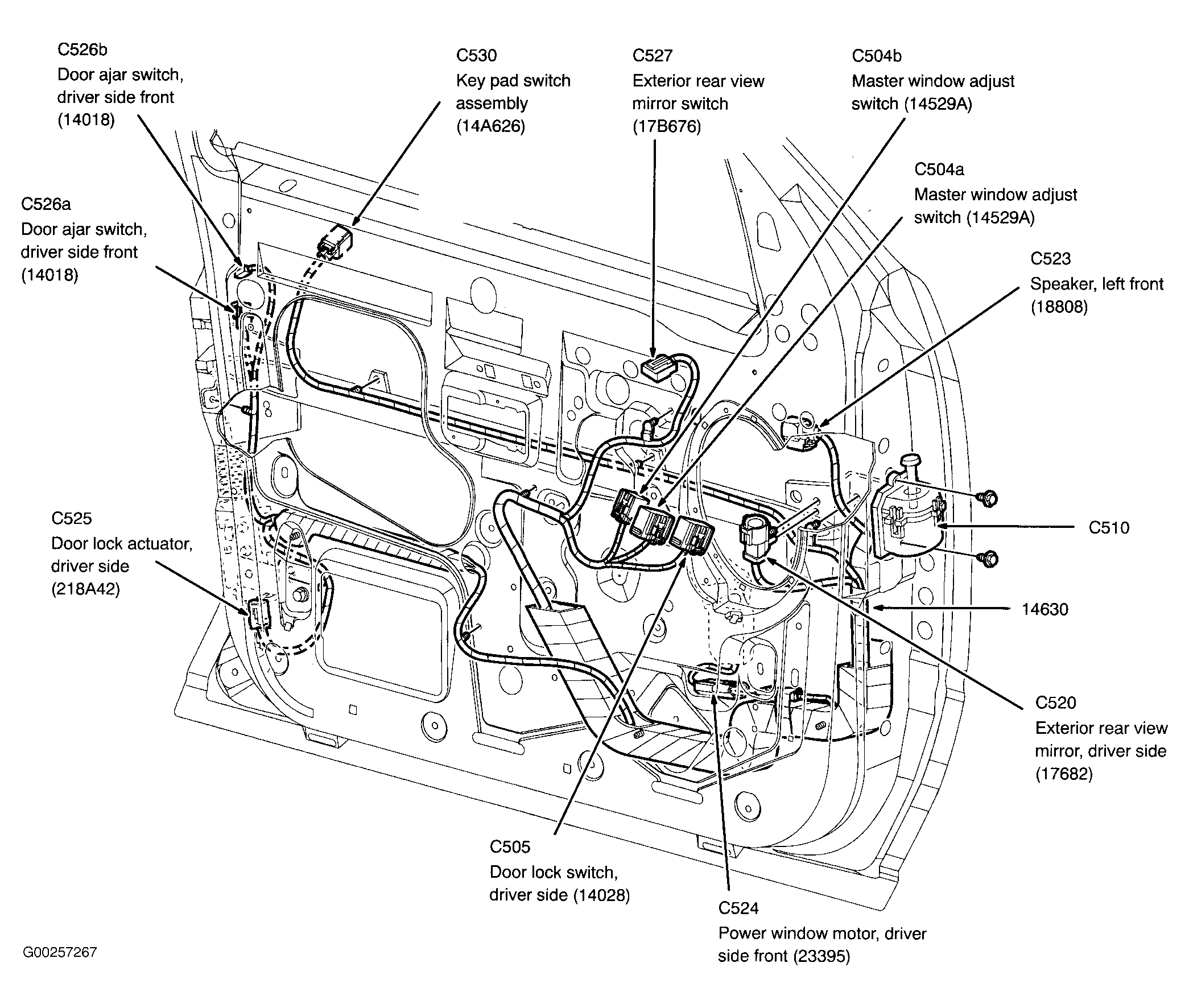

Fig 14: Left Front Door

G00257267

Courtesy of FORD MOTOR CO.

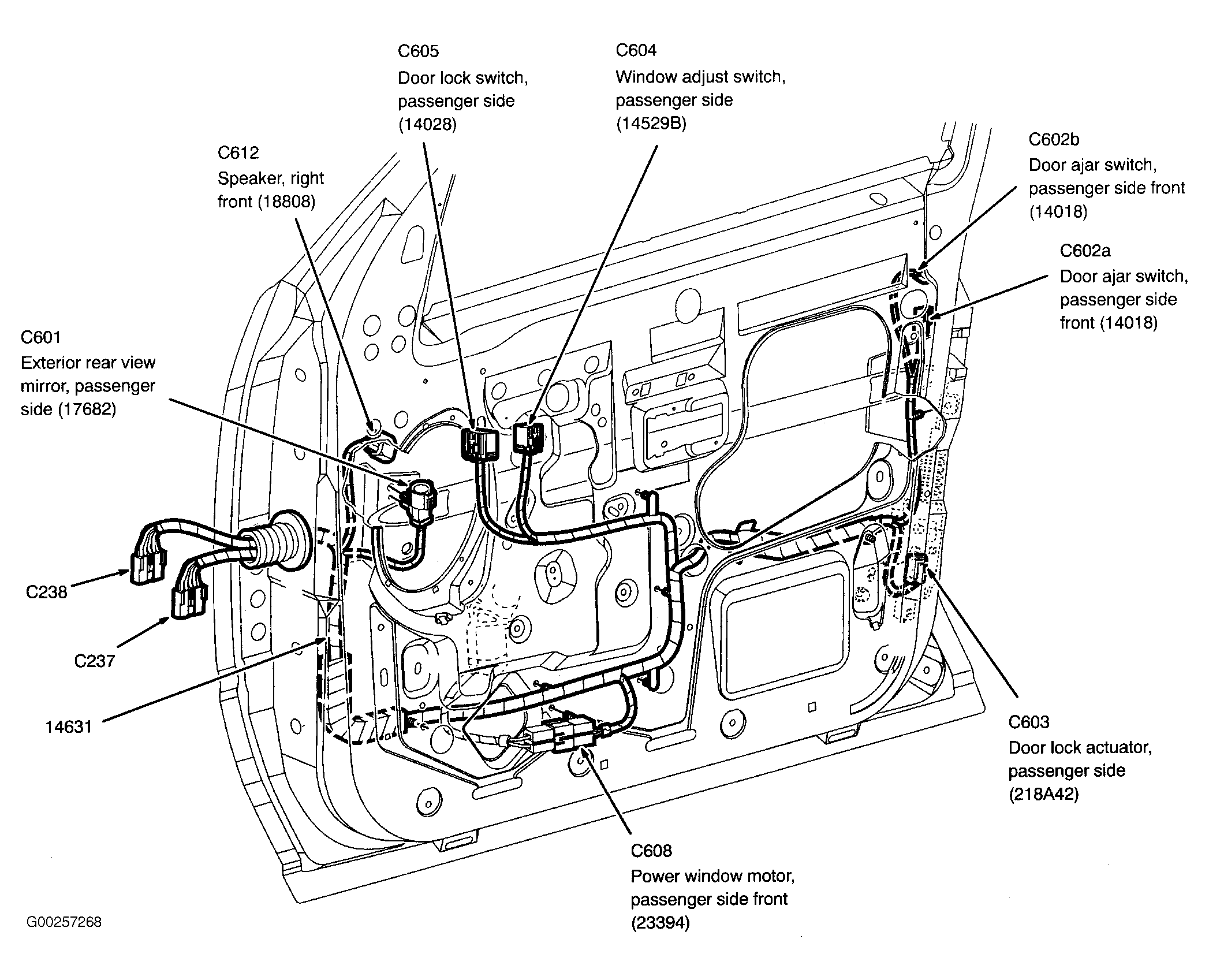

Fig 15: Right Front Door

G00257268

Courtesy of FORD MOTOR CO.

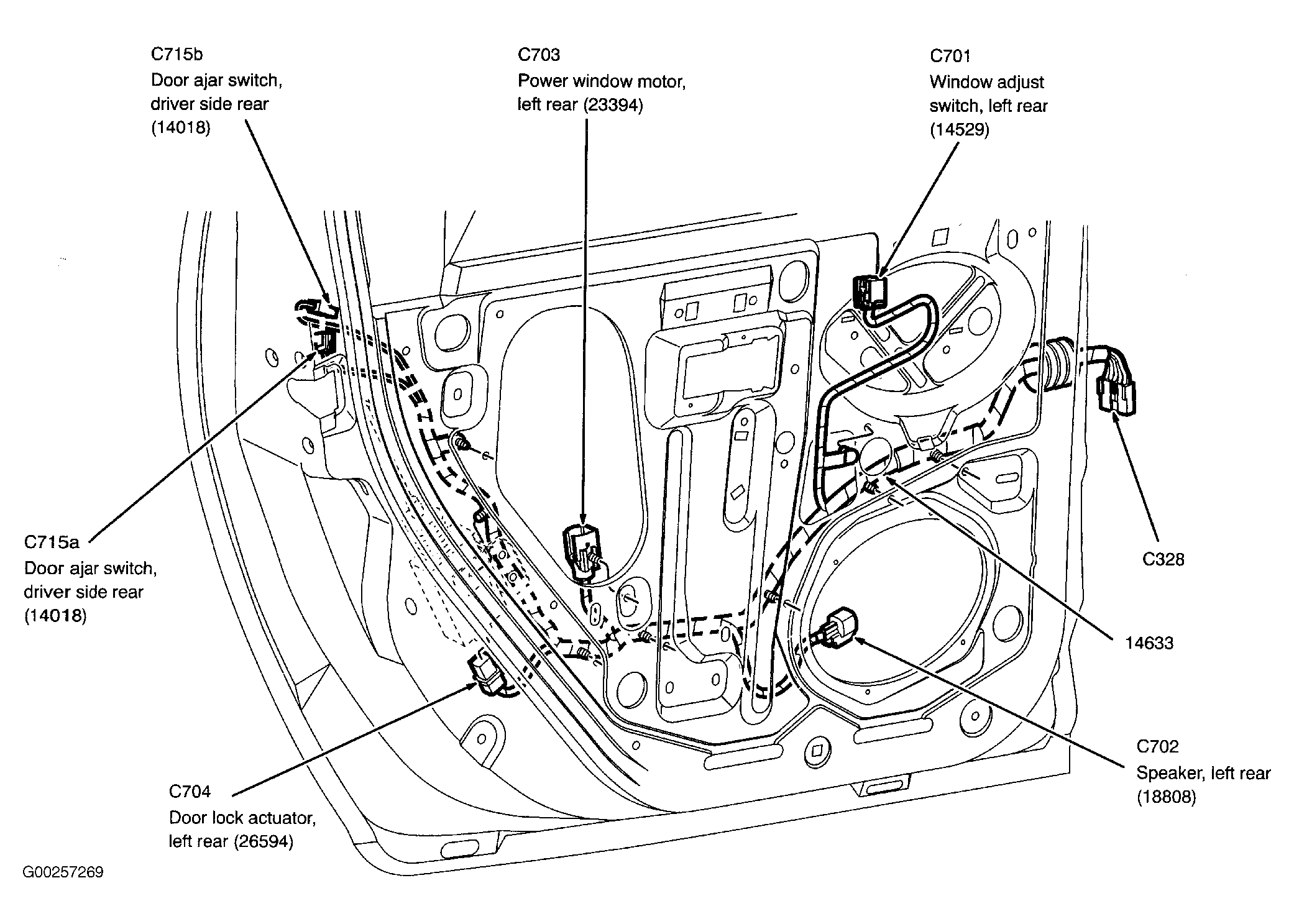

Fig 16: Left Rear Door

G00257269

Courtesy of FORD MOTOR CO.

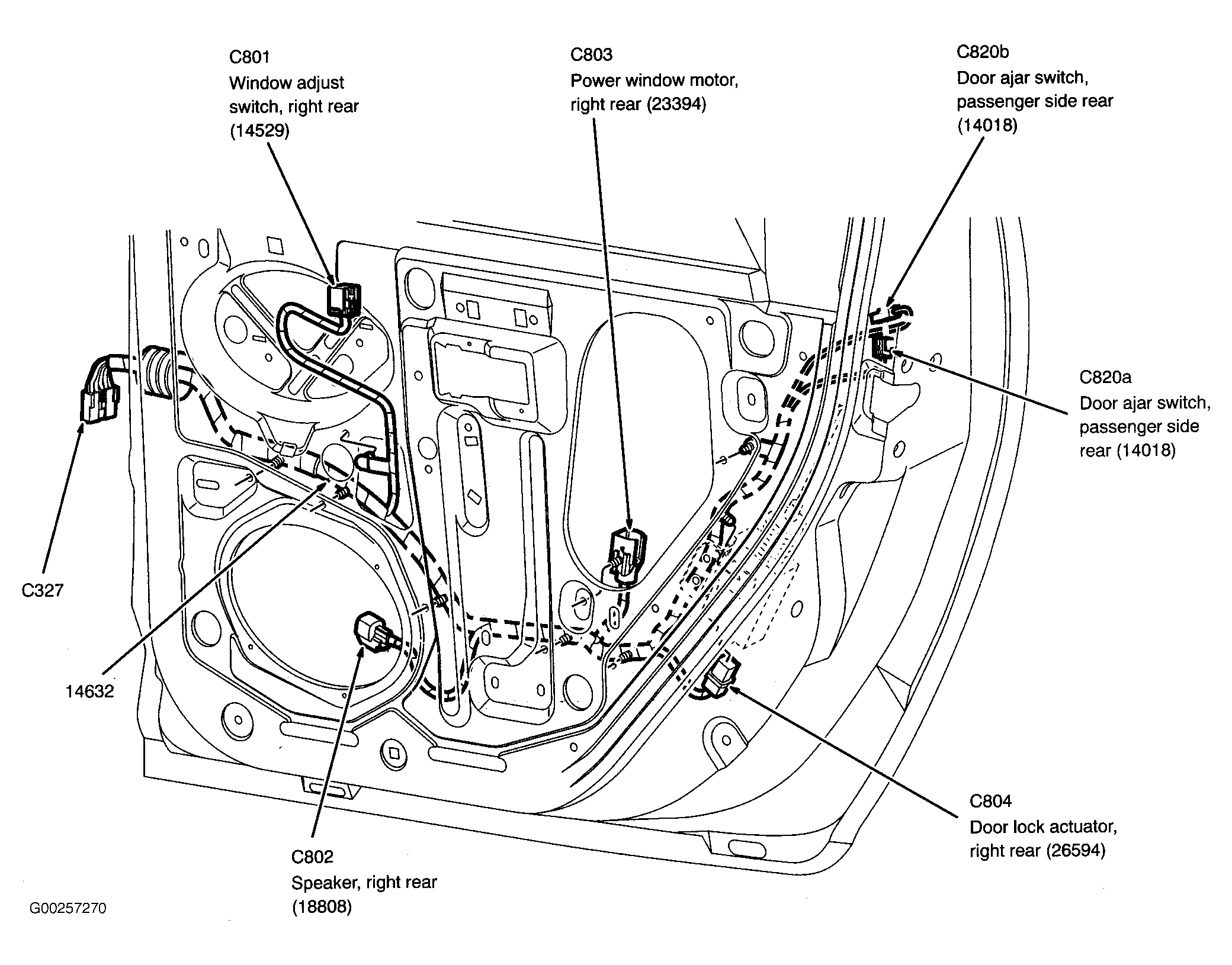

Fig 17: Right Rear Door

G00257270

Courtesy of FORD MOTOR CO.

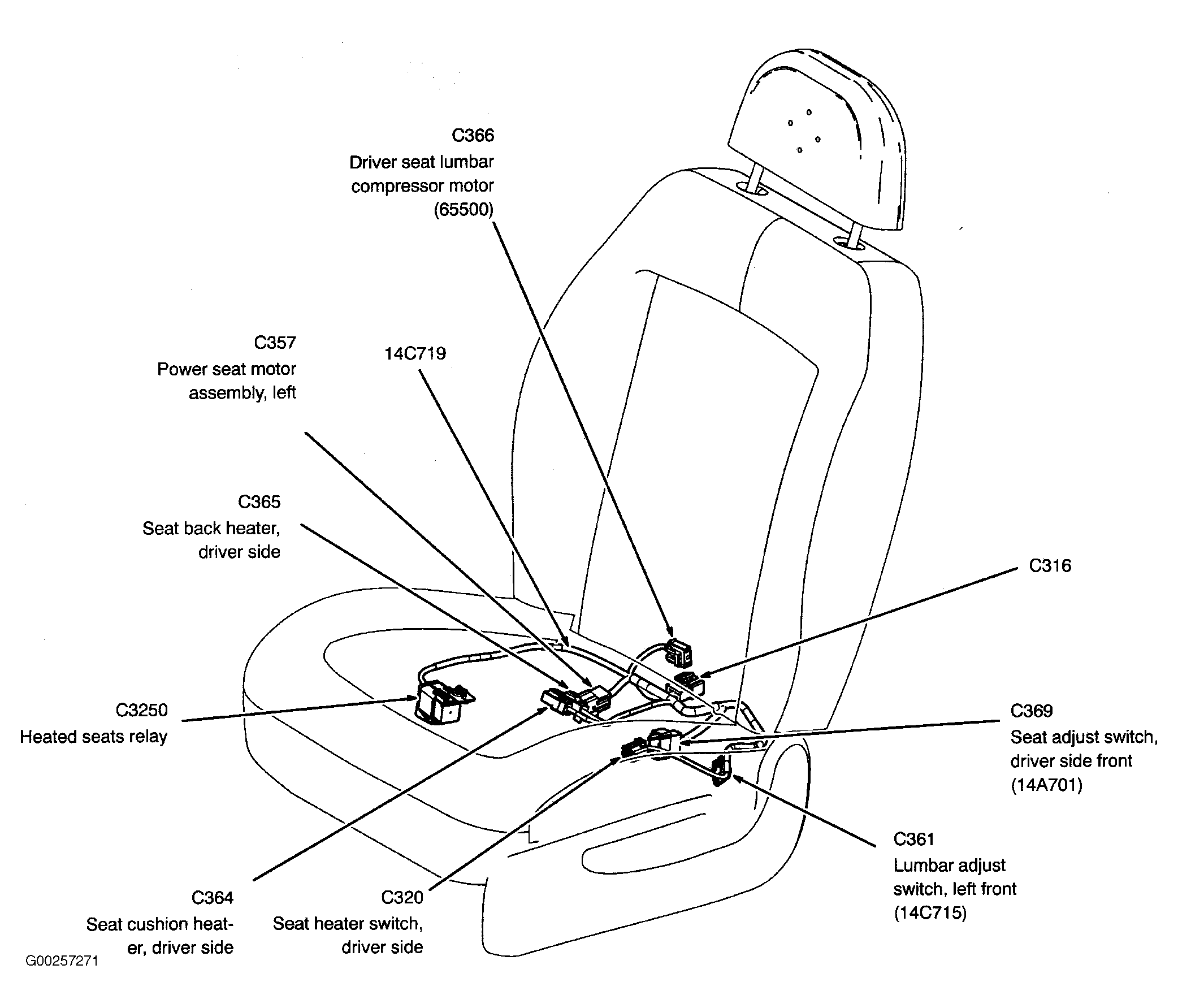

Fig 18: Driver Seat

G00257271

Courtesy of FORD MOTOR CO.

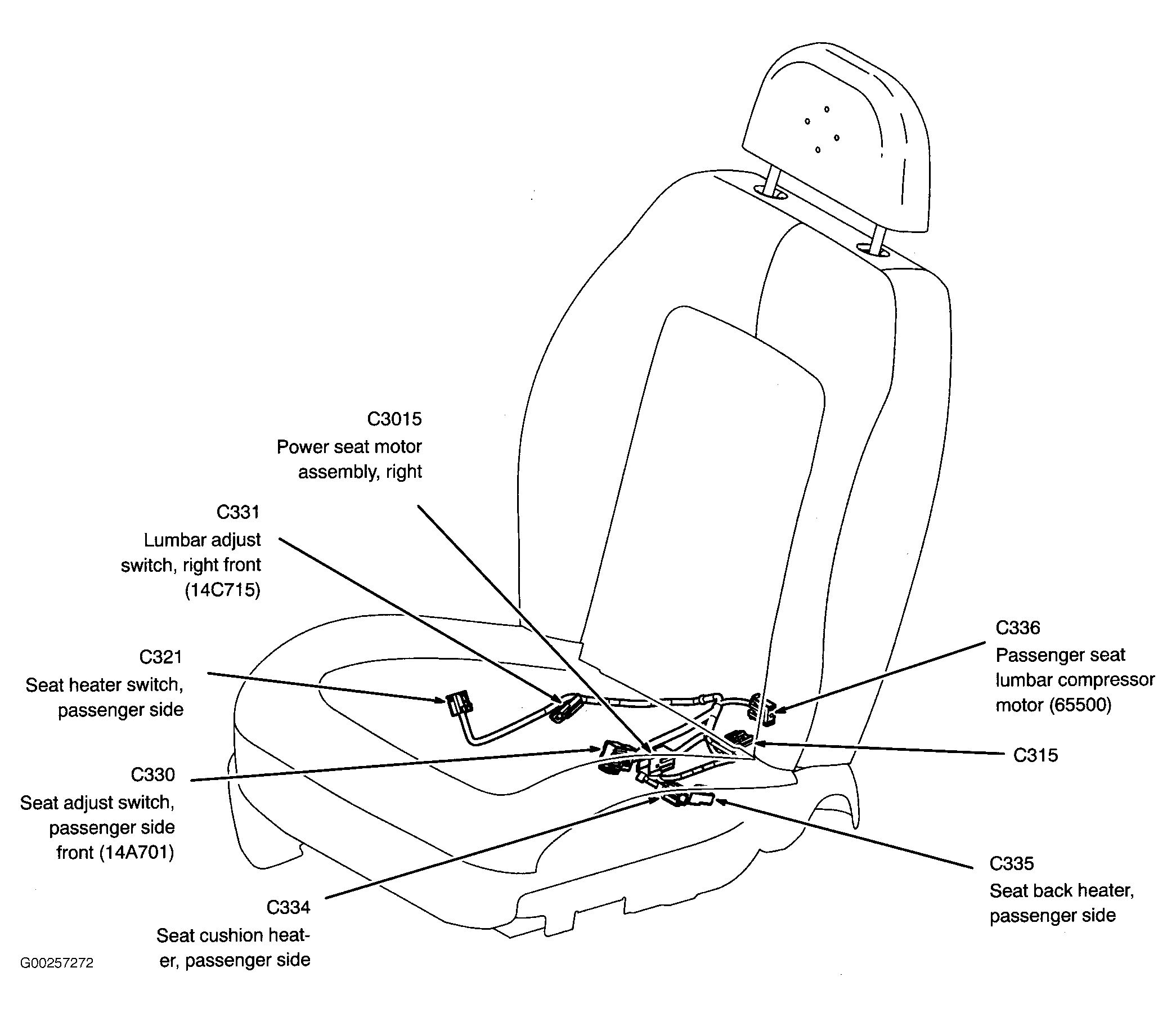

Fig 19: Passenger Seat

G00257272

Courtesy of FORD MOTOR CO.

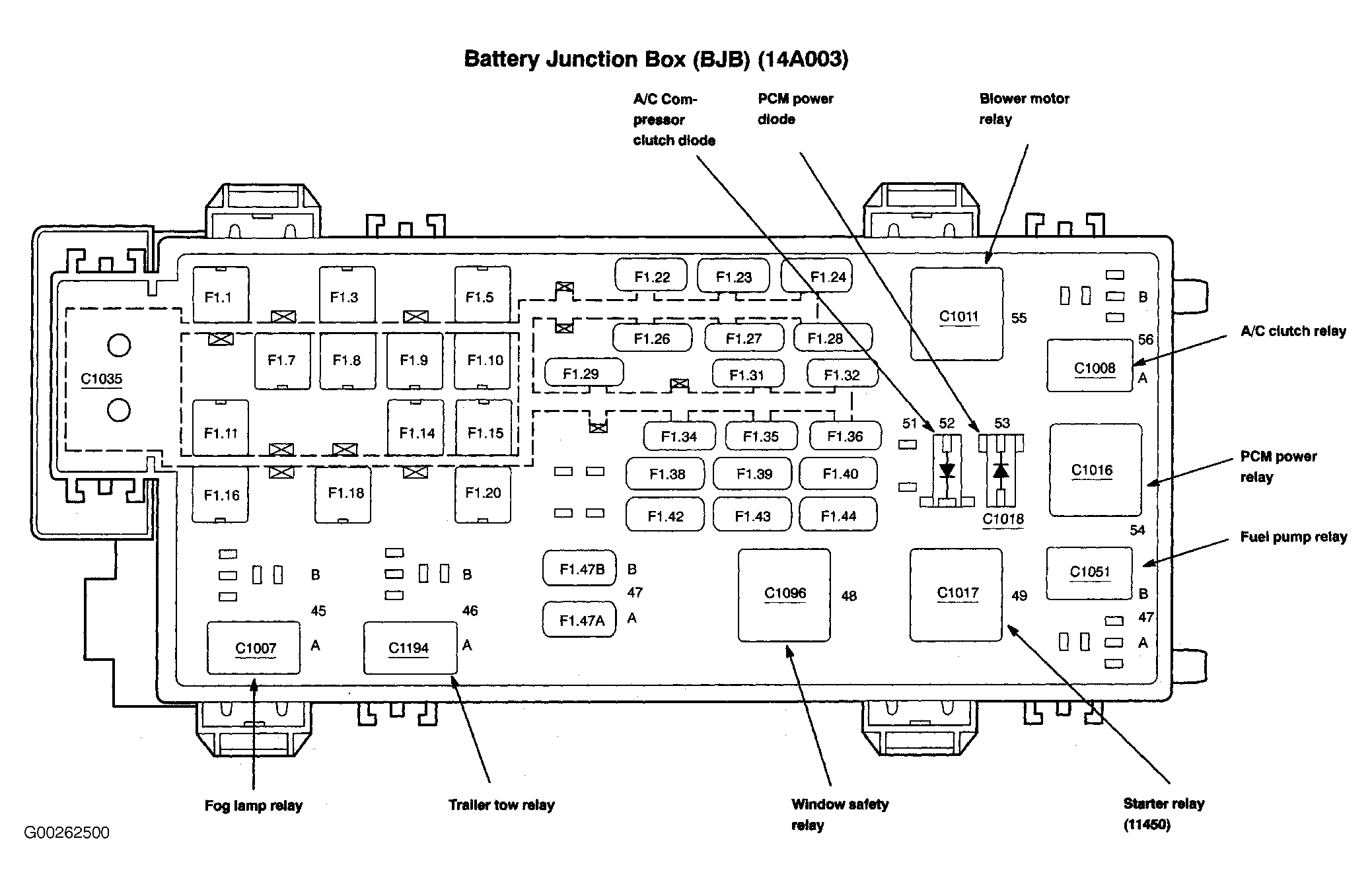

Fig 20: Battery Junction Box (BJB)

G00262500

Courtesy of FORD MOTOR CO.

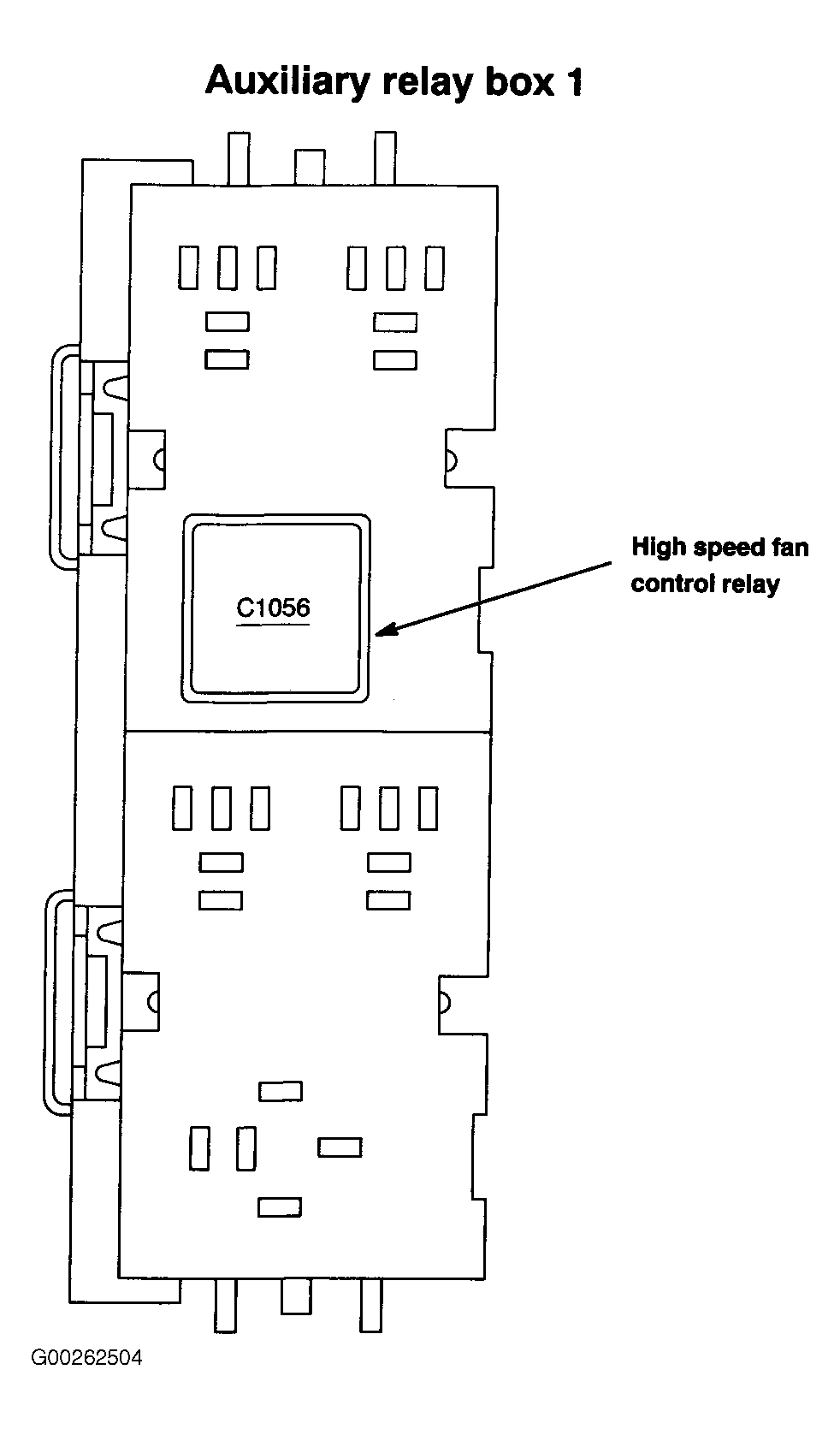

Fig 21: Auxiliary Relay Box 1

G00262504

Courtesy of FORD MOTOR CO.

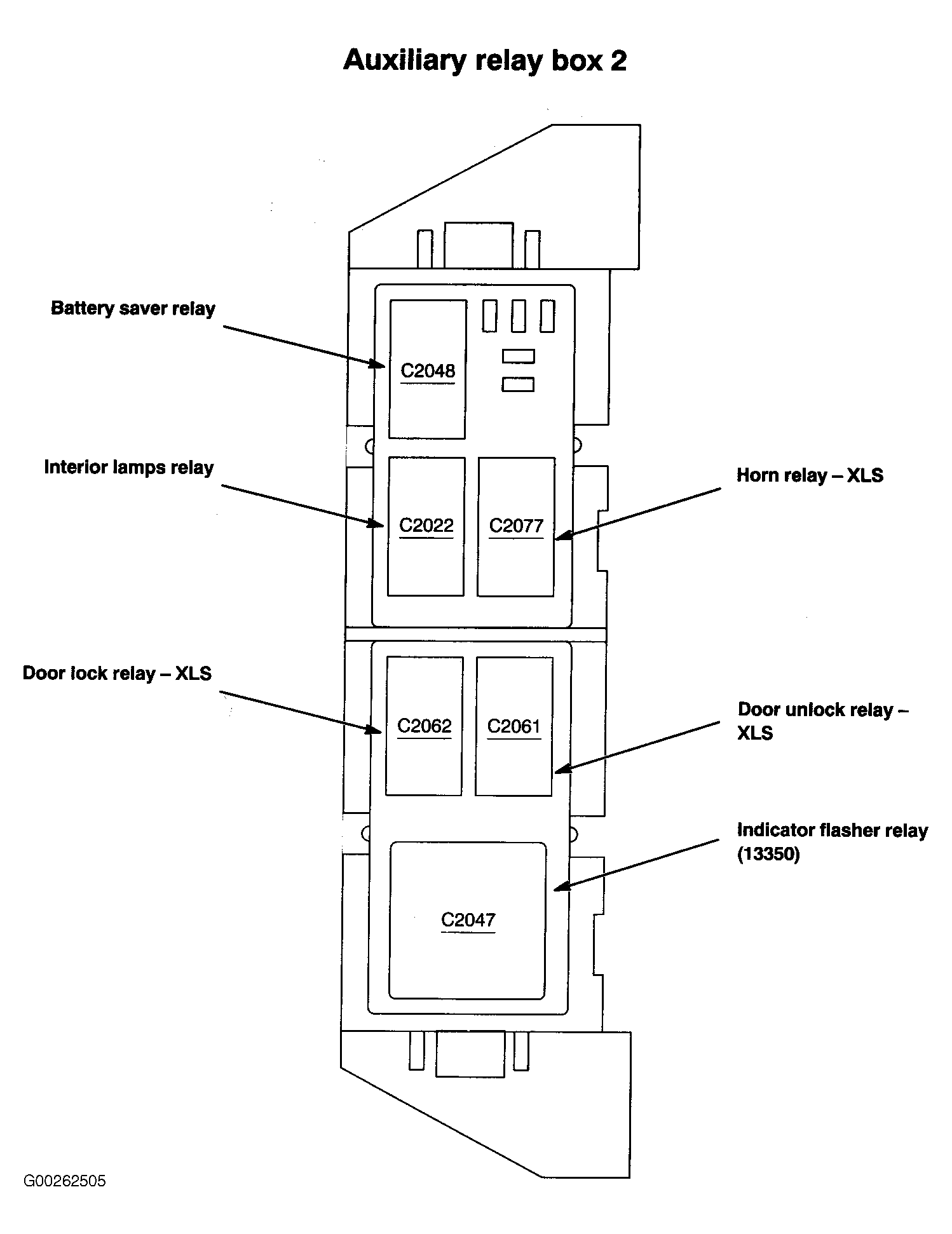

Fig 22: Auxiliary Relay Box 2

G00262505

Courtesy of FORD MOTOR CO.
