Valve - Spring Free Length

  1. Measure the free length of each valve spring.
    • For additional information, refer to SPECIFICATIONS .
    • If out of specification, install new components as necessary. Refer to ENGINE - 4.0L SOHC for the procedure.

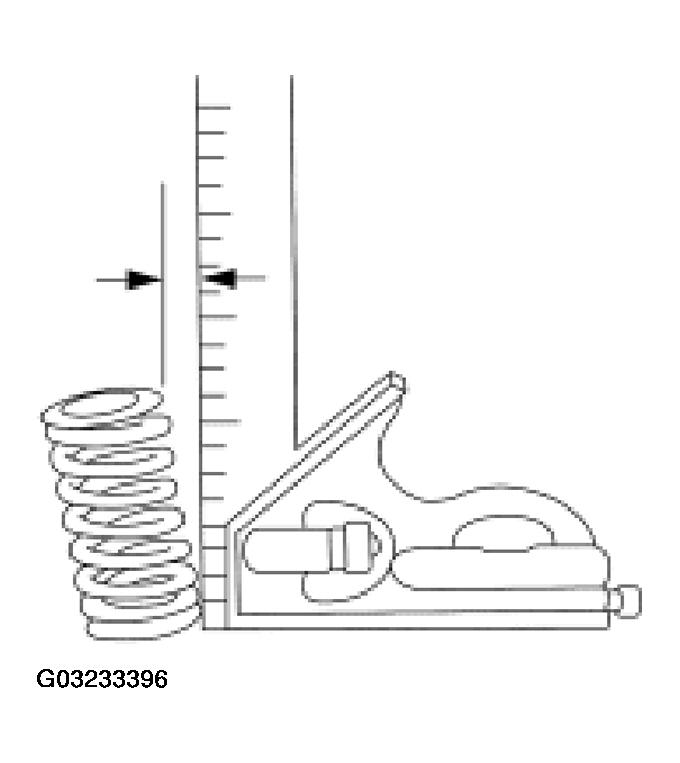

      Fig 1: Measuring Free Length Of Each Valve Spring
      G03233396Courtesy of FORD MOTOR CO.
