Disassembled Views

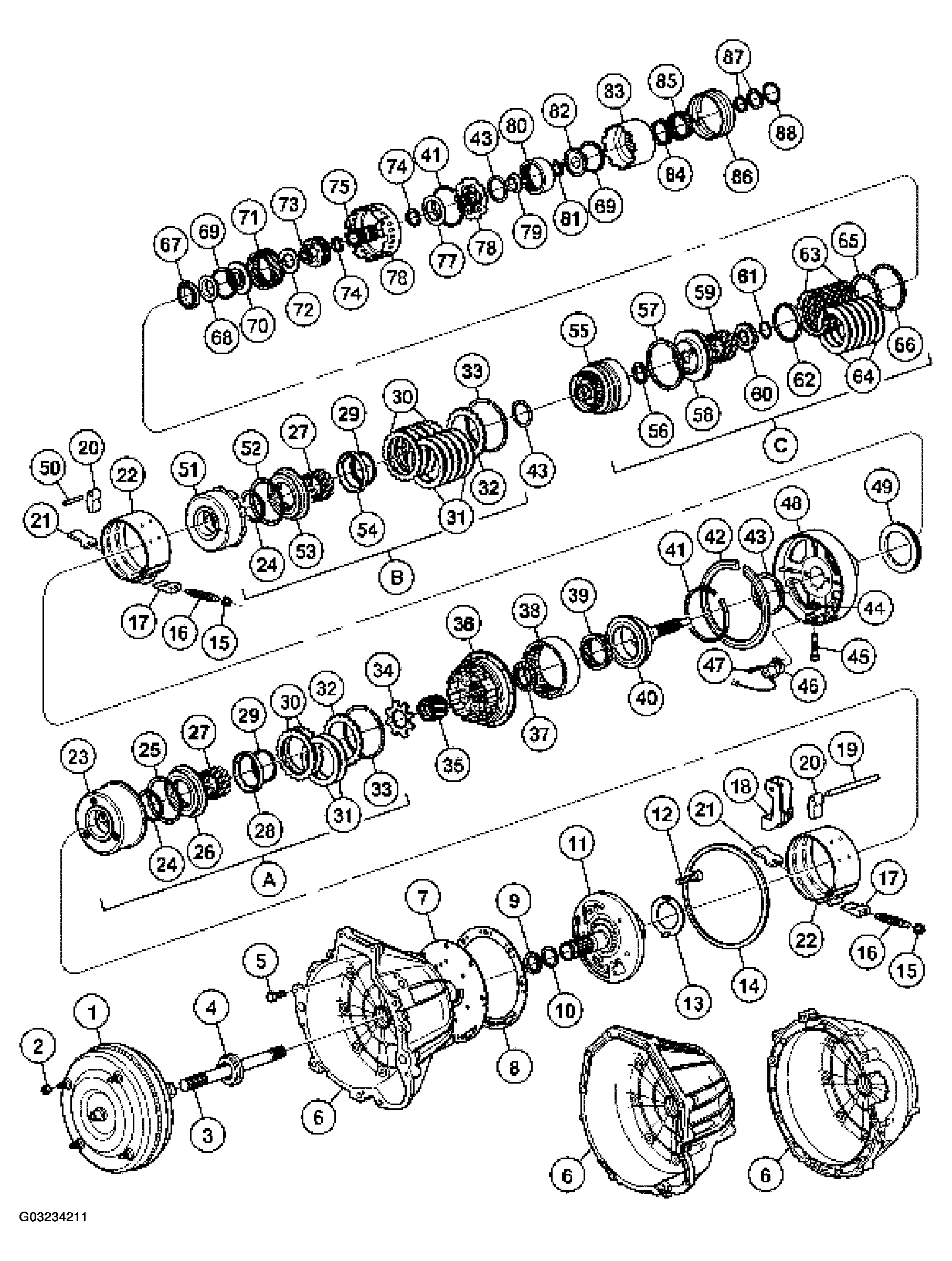

Fig 1: Disassembled Views Of Automatic Transmission Components (1 Of 2)

Courtesy of FORD MOTOR CO.

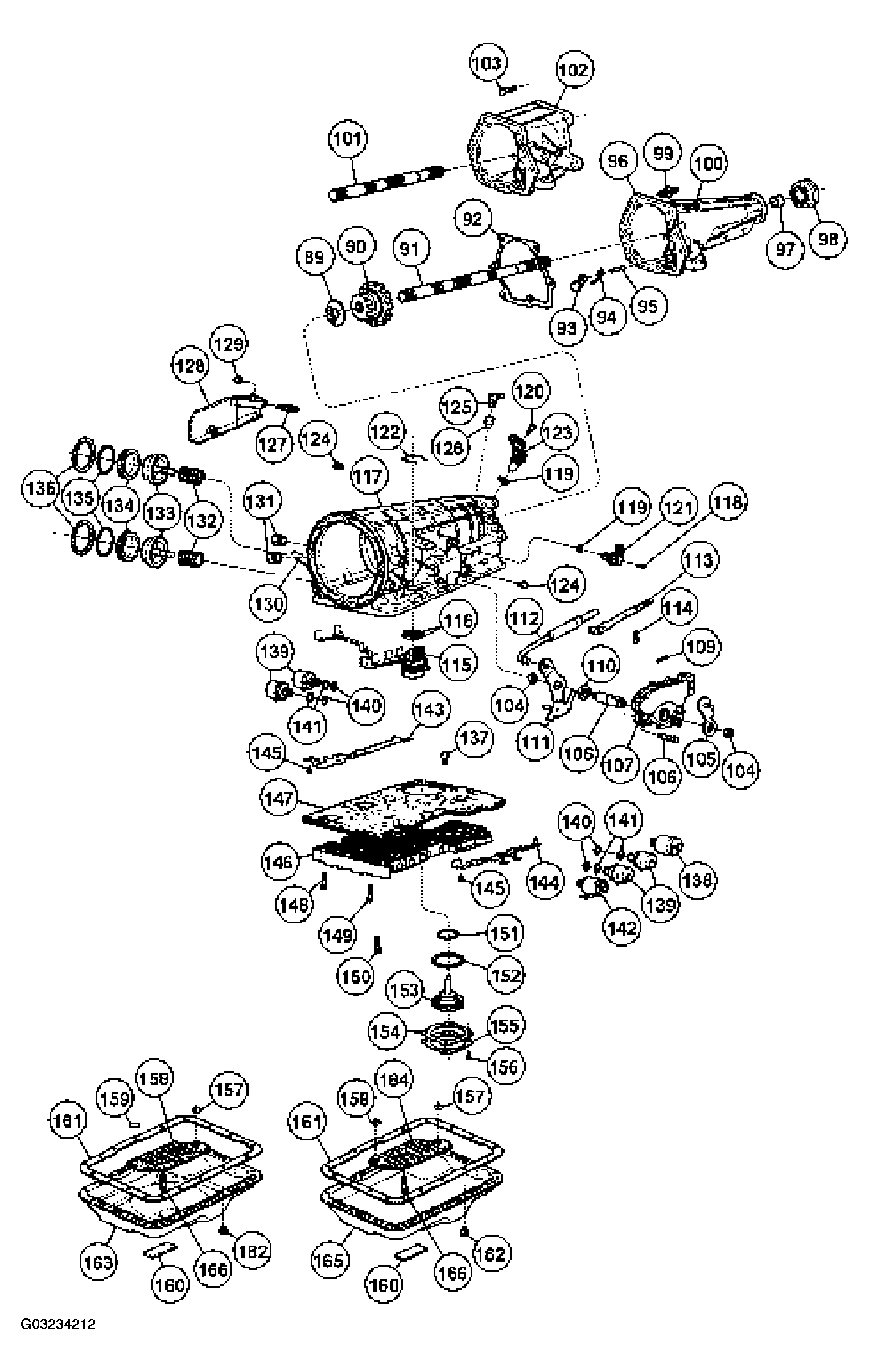

Fig 2: Disassembled Views Of Automatic Transmission Components (2 Of 2)

Courtesy of FORD MOTOR CO.

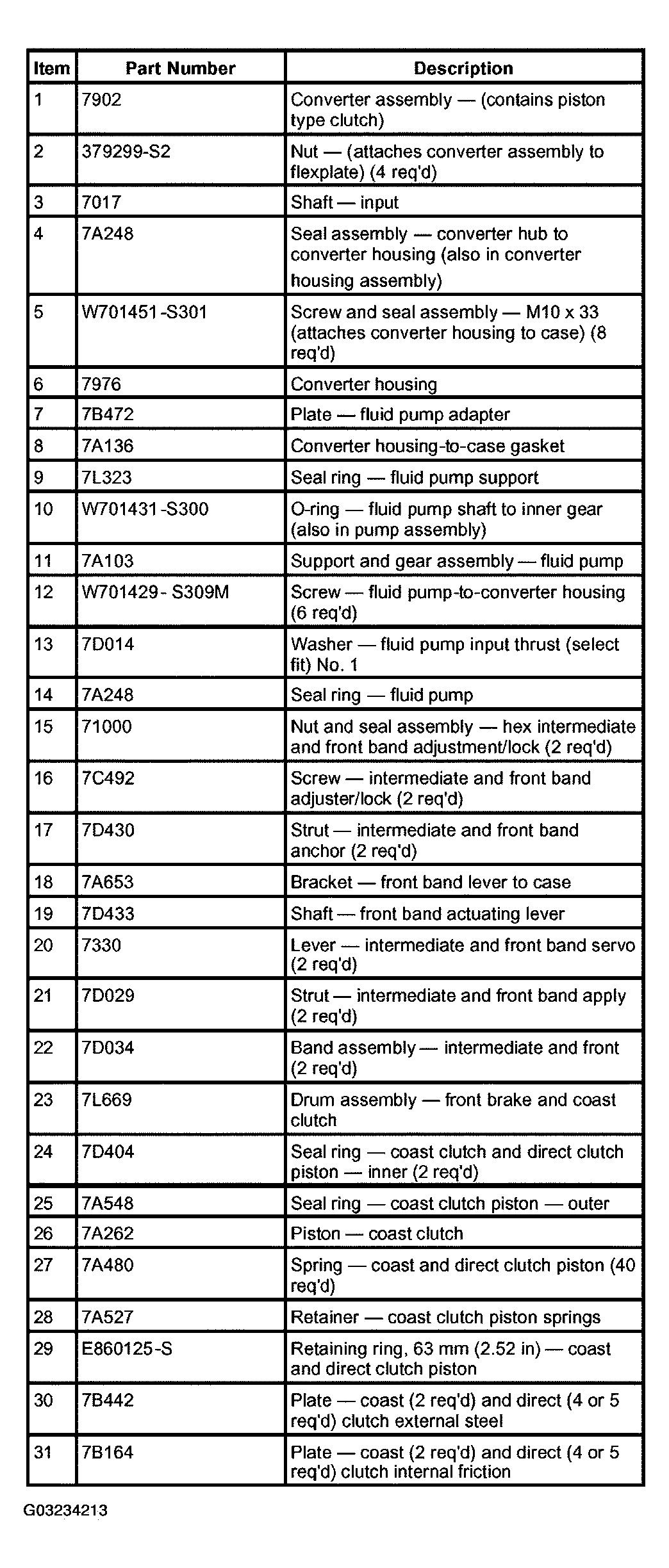

Fig 3: Item Description Of Automatic Transmission Components (Items 1-31)

Courtesy of FORD MOTOR CO.

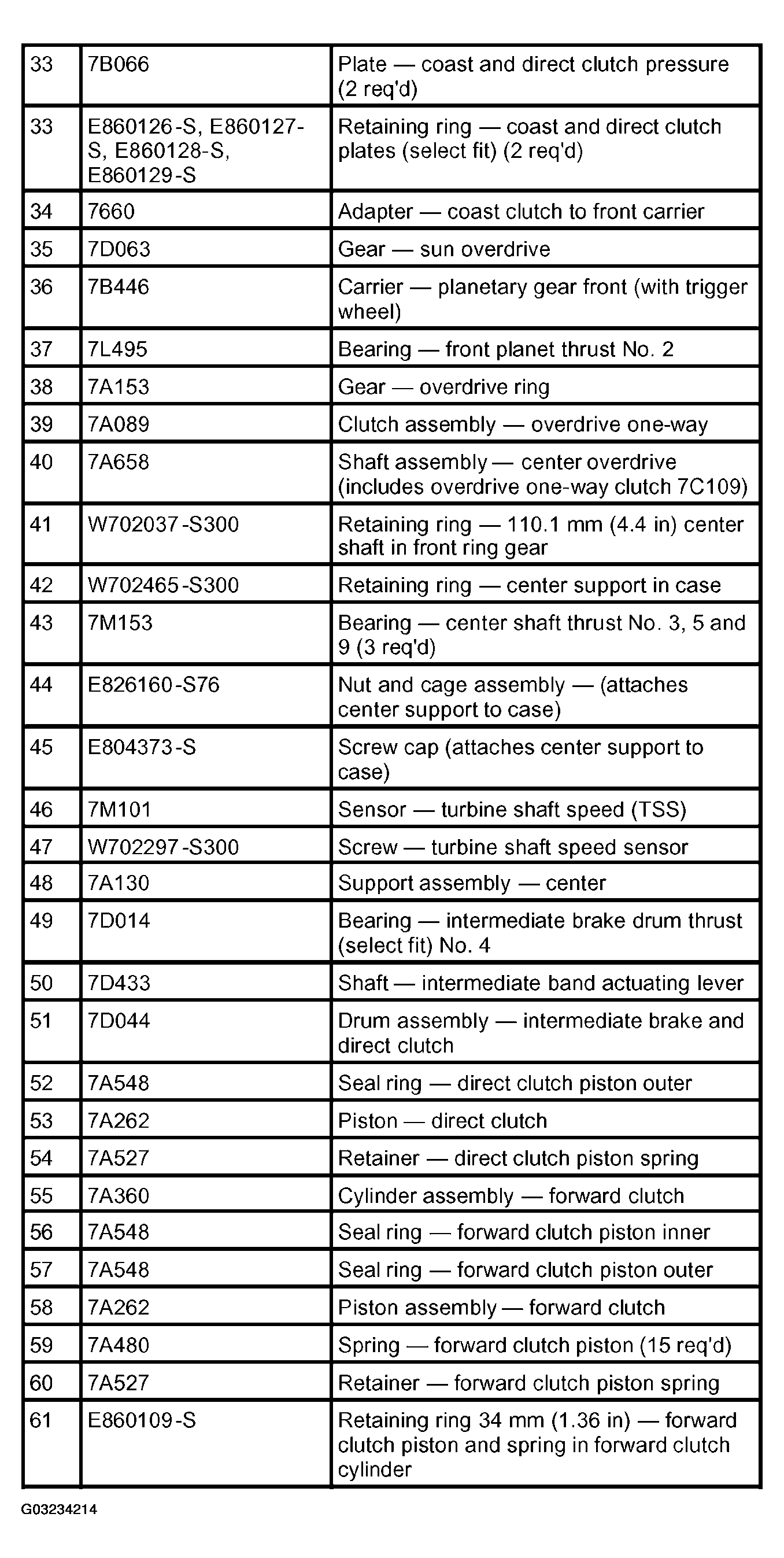

Fig 4: Item Description Of Automatic Transmission Components (Items 32-61)

Courtesy of FORD MOTOR CO.

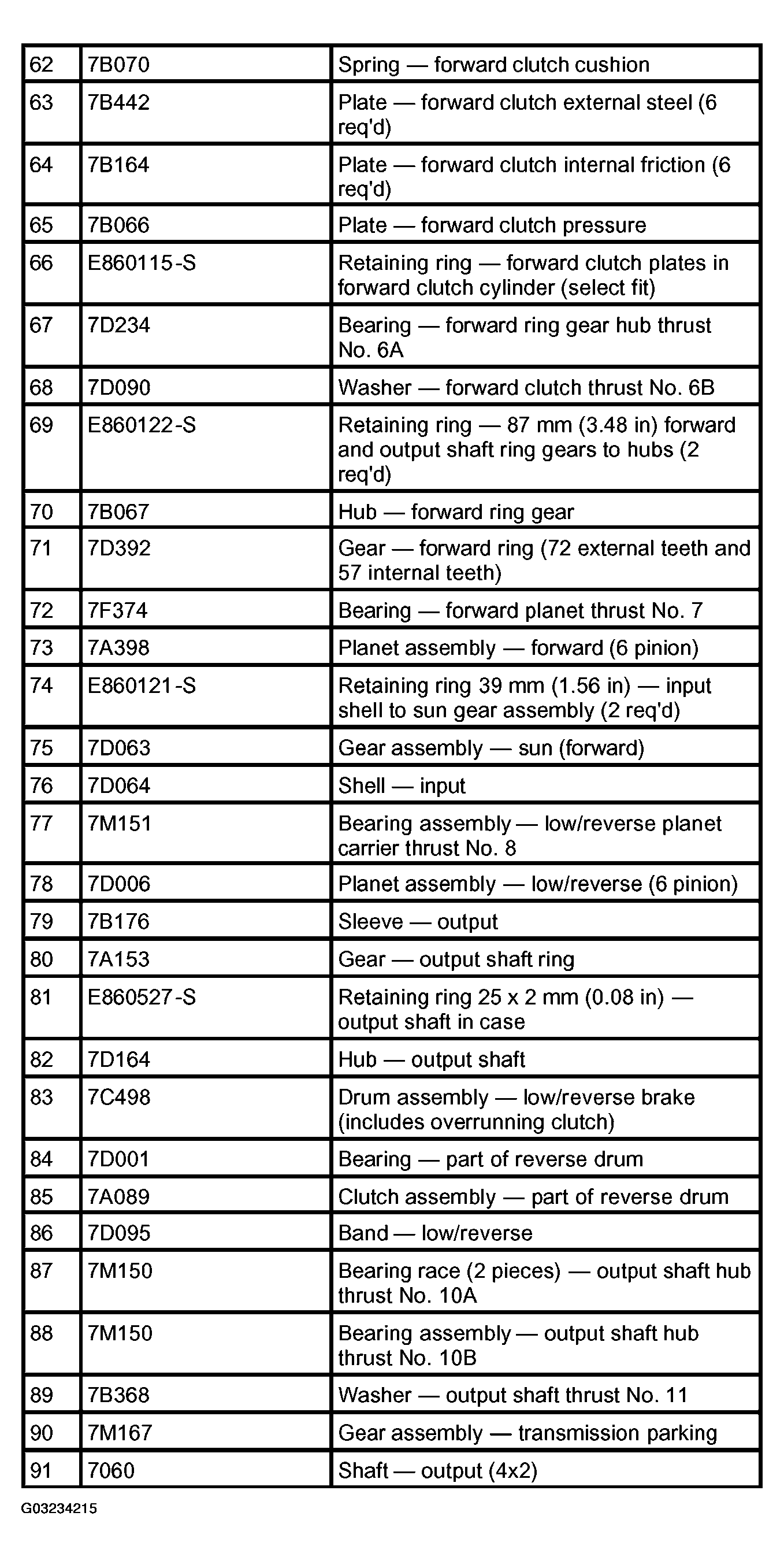

Fig 5: Item Description Of Automatic Transmission Components (Items 62-91)

Courtesy of FORD MOTOR CO.

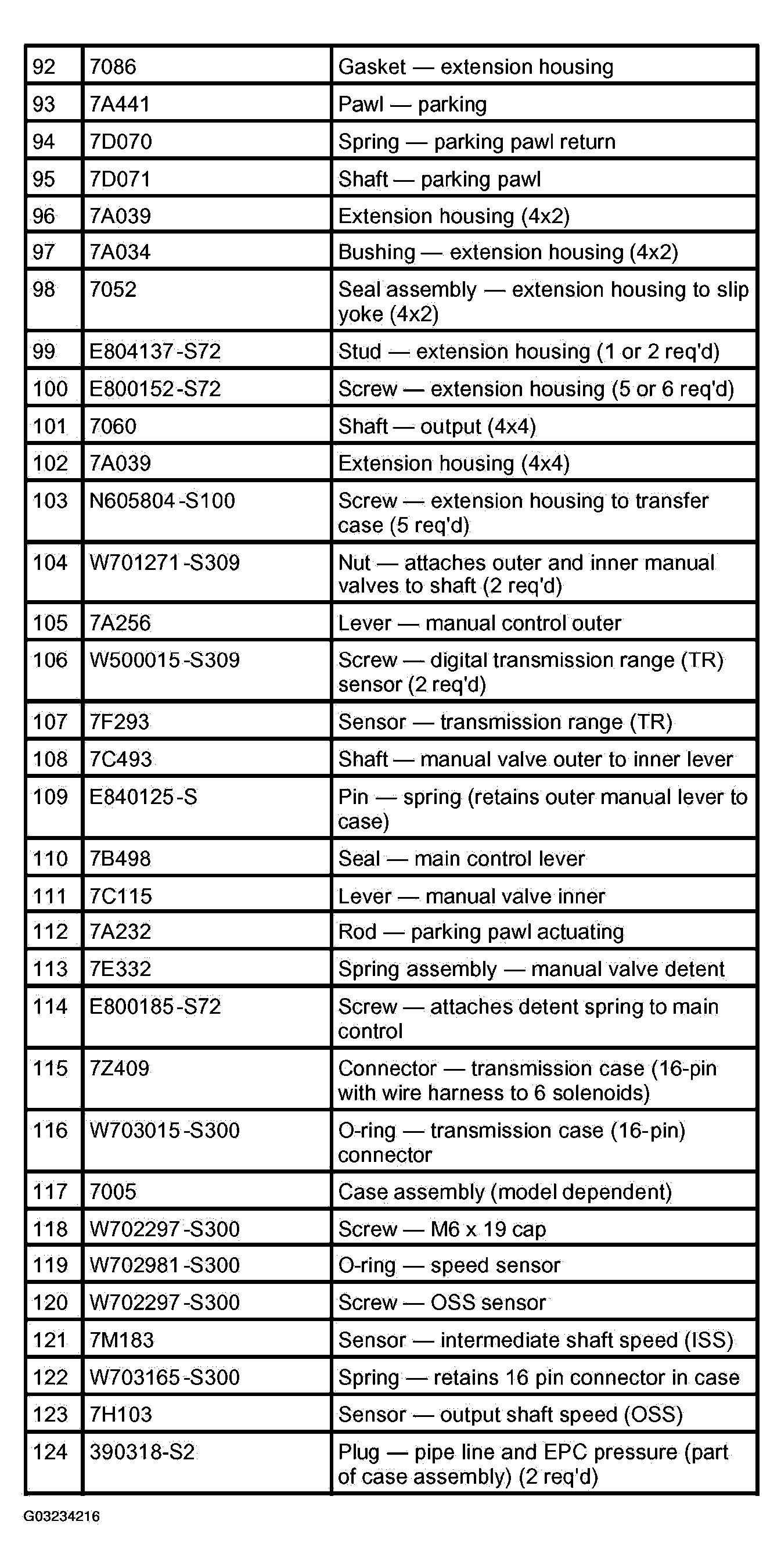

Fig 6: Item Description Of Automatic Transmission Components (Items 92-124)

Courtesy of FORD MOTOR CO.

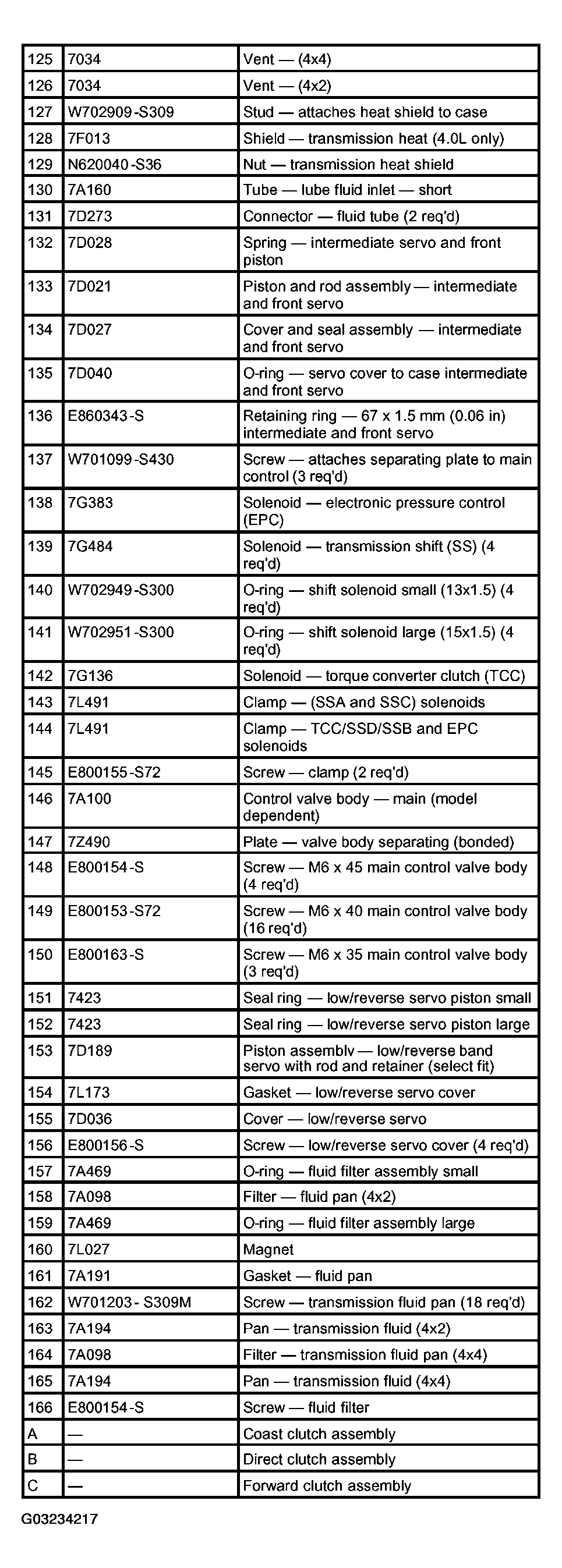

Fig 7: Item Description Of Automatic Transmission Components (Items 125-166/A-C)

Courtesy of FORD MOTOR CO.
