Center Support: Check

NOTE: Thoroughly clean center support assembly and blow dry with compressed air.

NOTE: The center support is serviced as an assembly. Any damage to the center support will require the installation of a new center support.

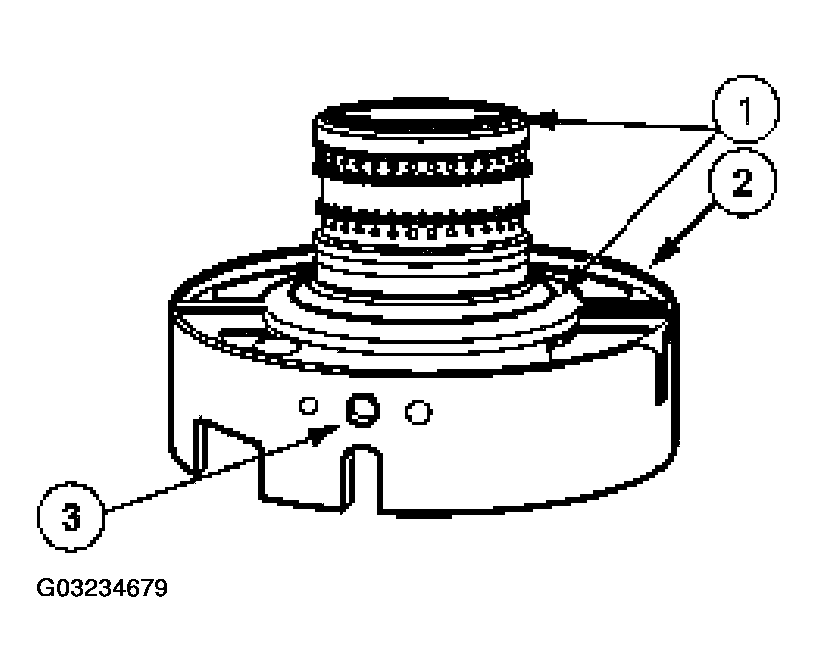

Inspect the center support assembly for wear or damage.
1. Inspect the thrust surfaces for wear, scoring or damage.
2. Inspect the center support sealing surface.
3. Inspect the fluid passage for blockage or damage.
Fig 1: Inspecting Center Support Assembly For Wear Or Damage
Courtesy of FORD MOTOR CO.

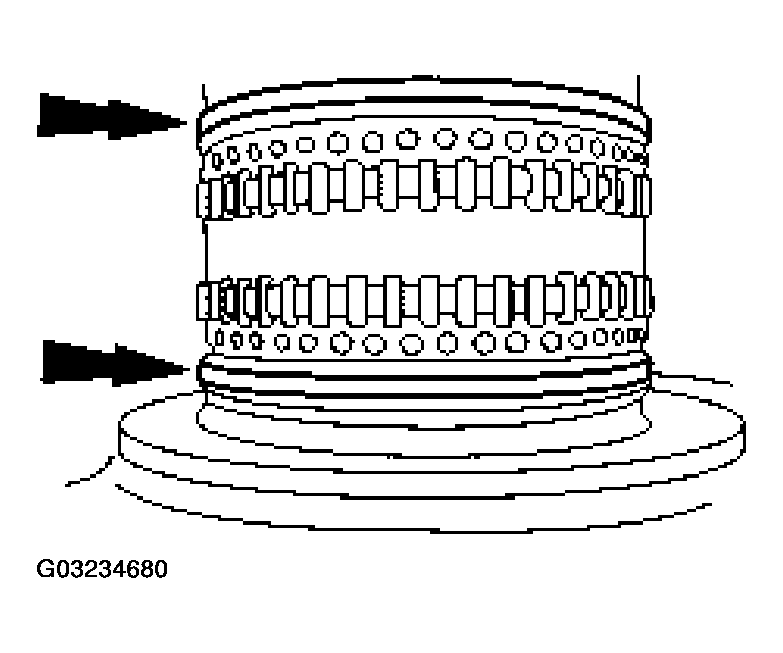

Inspect the seal rings for damage.

Fig 2: Inspecting Seal Rings For Damage
Courtesy of FORD MOTOR CO.

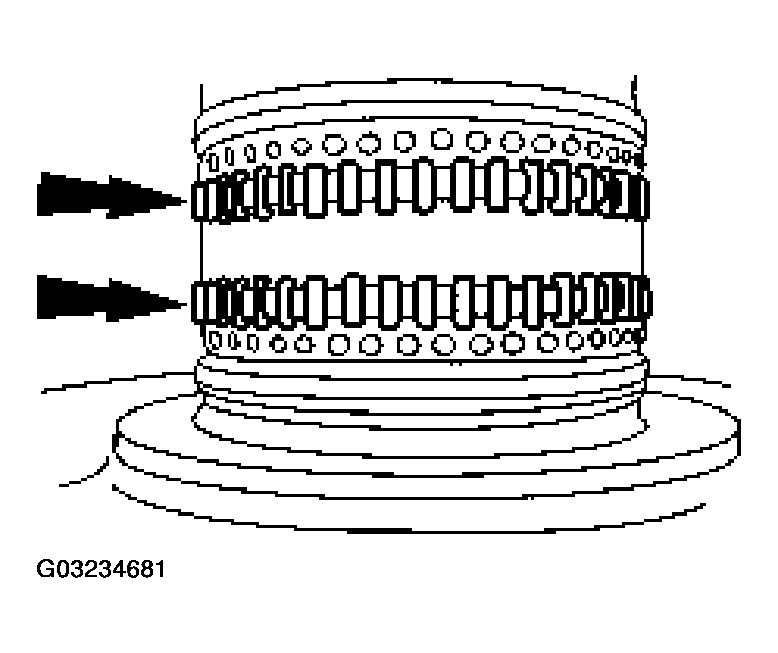

Inspect the bearing for missing rollers or damage.

Fig 3: Inspecting Bearing For Missing Rollers Or Damage
Courtesy of FORD MOTOR CO.

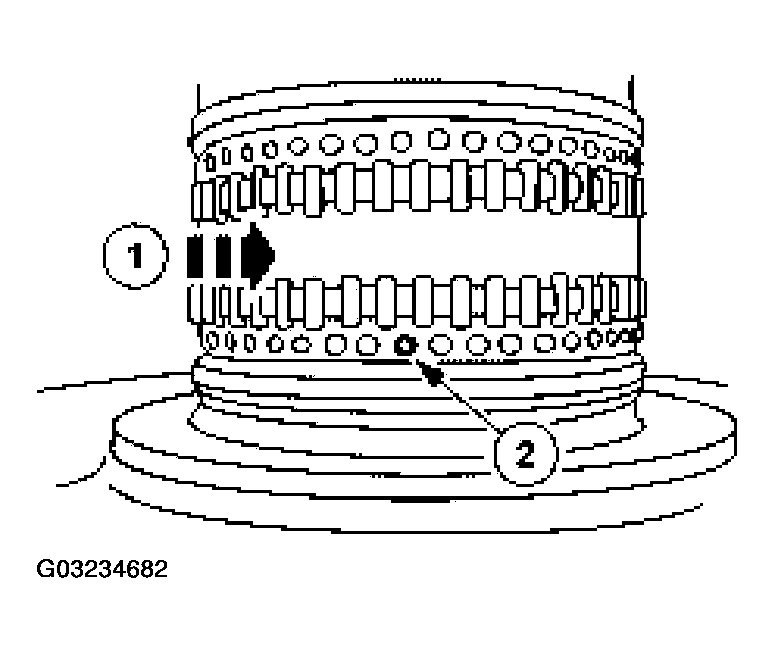

Inspect the direct clutch feed hole for blockage or damage.
1. Rotate the center support bearing to locate the direct clutch feed hole.
2. Inspect the direct clutch feed hole for blockage or damage.
Fig 4: Inspecting Direct Clutch Feed Hole For Blockage Or Damage
Courtesy of FORD MOTOR CO.
