Forward Geartrain: Notes

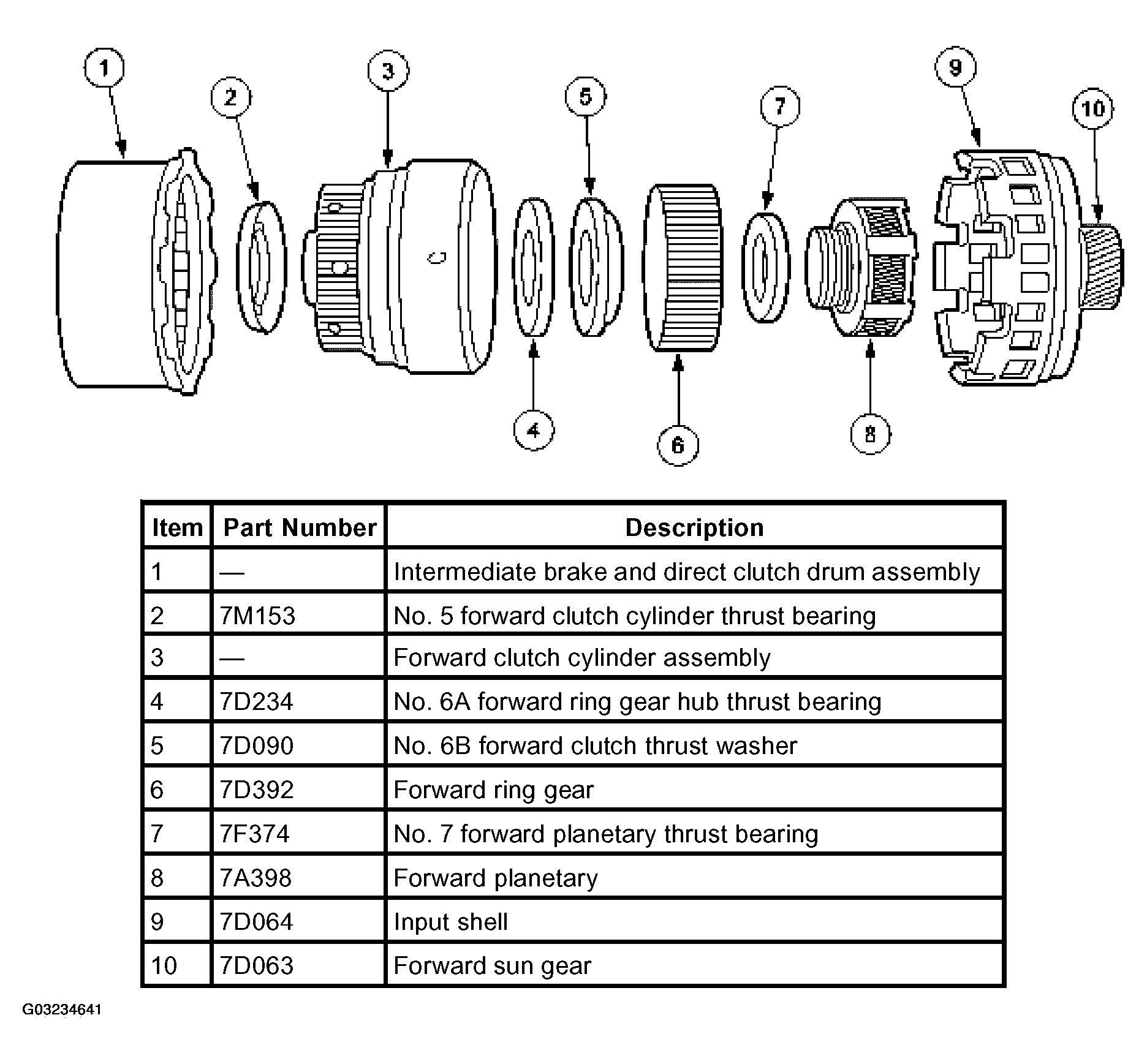

Fig 1: Exploded View Of Forward Geartrain Assembly
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
