Main Control Valve Body: Notes

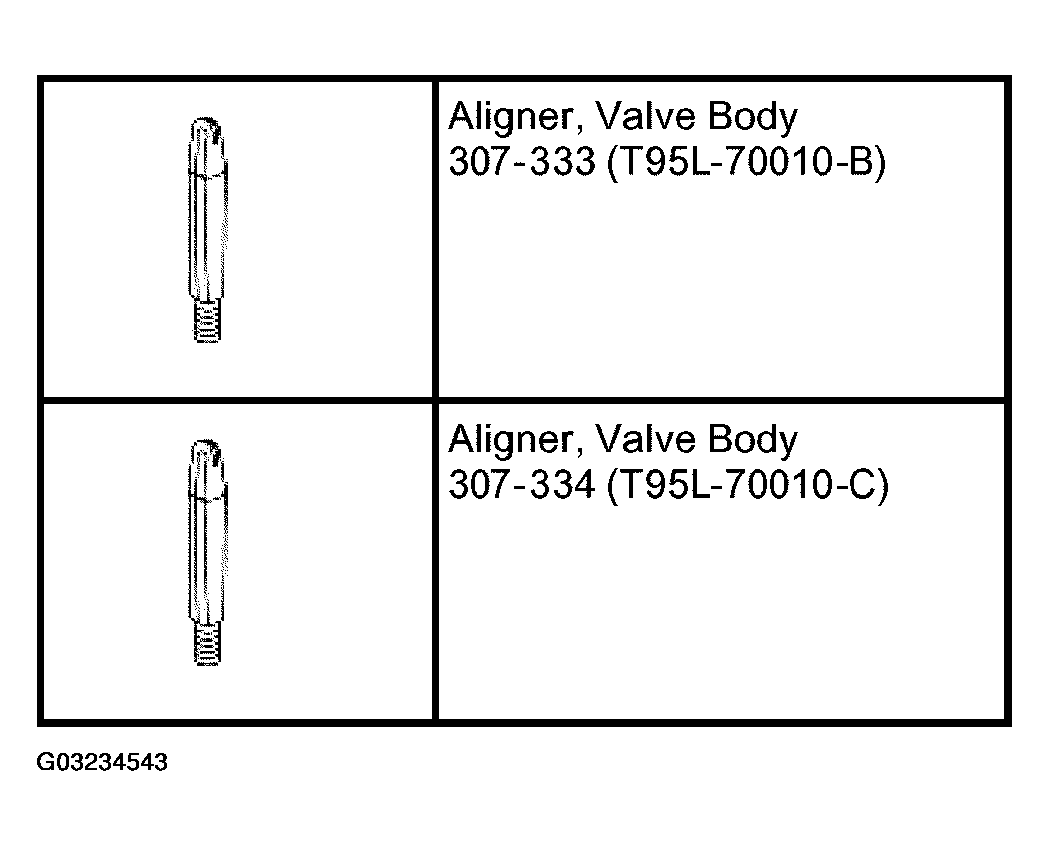

Fig 1: Identifying Special Tools

Courtesy of FORD MOTOR CO.

Fig 2: Exploded View Of Main Control Valve Body

Courtesy of FORD MOTOR CO.

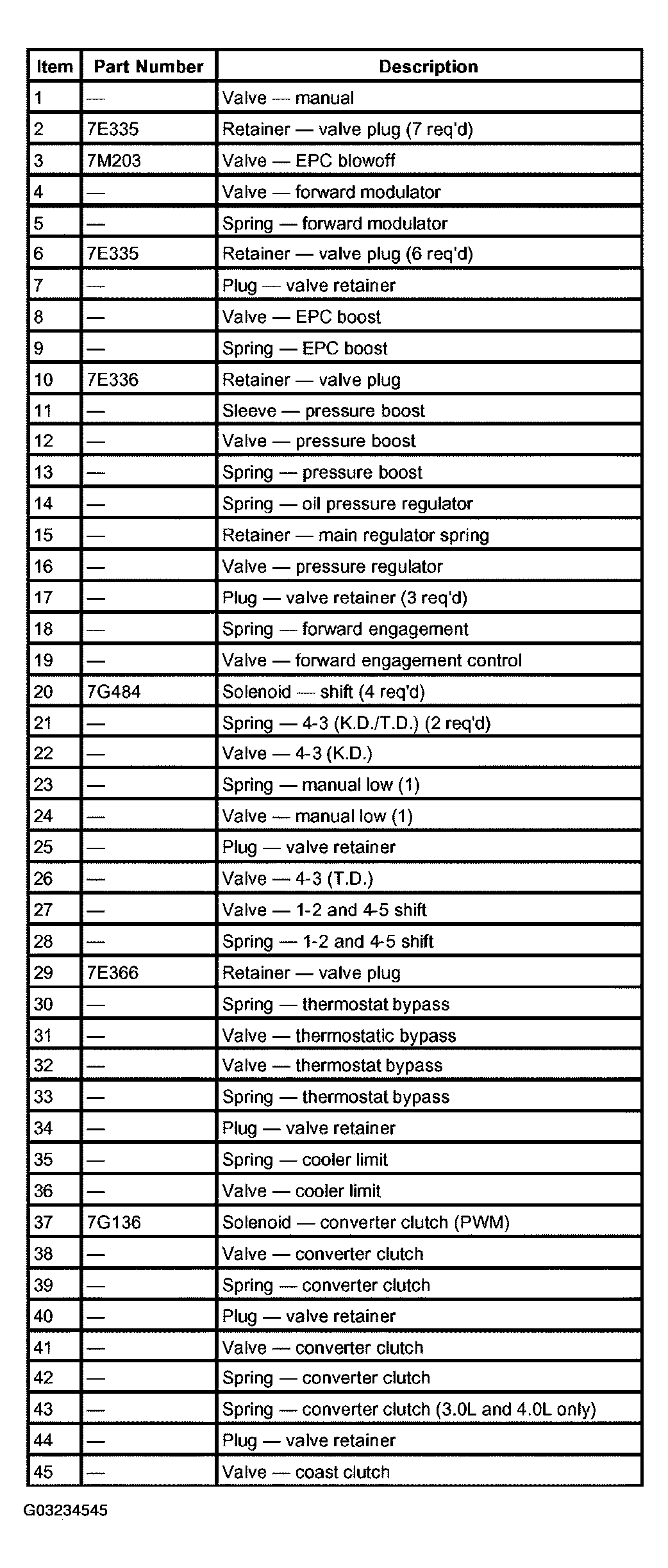

Fig 3: Item Description Of Main Control Valve Body (Items 1-45)

Courtesy of FORD MOTOR CO.

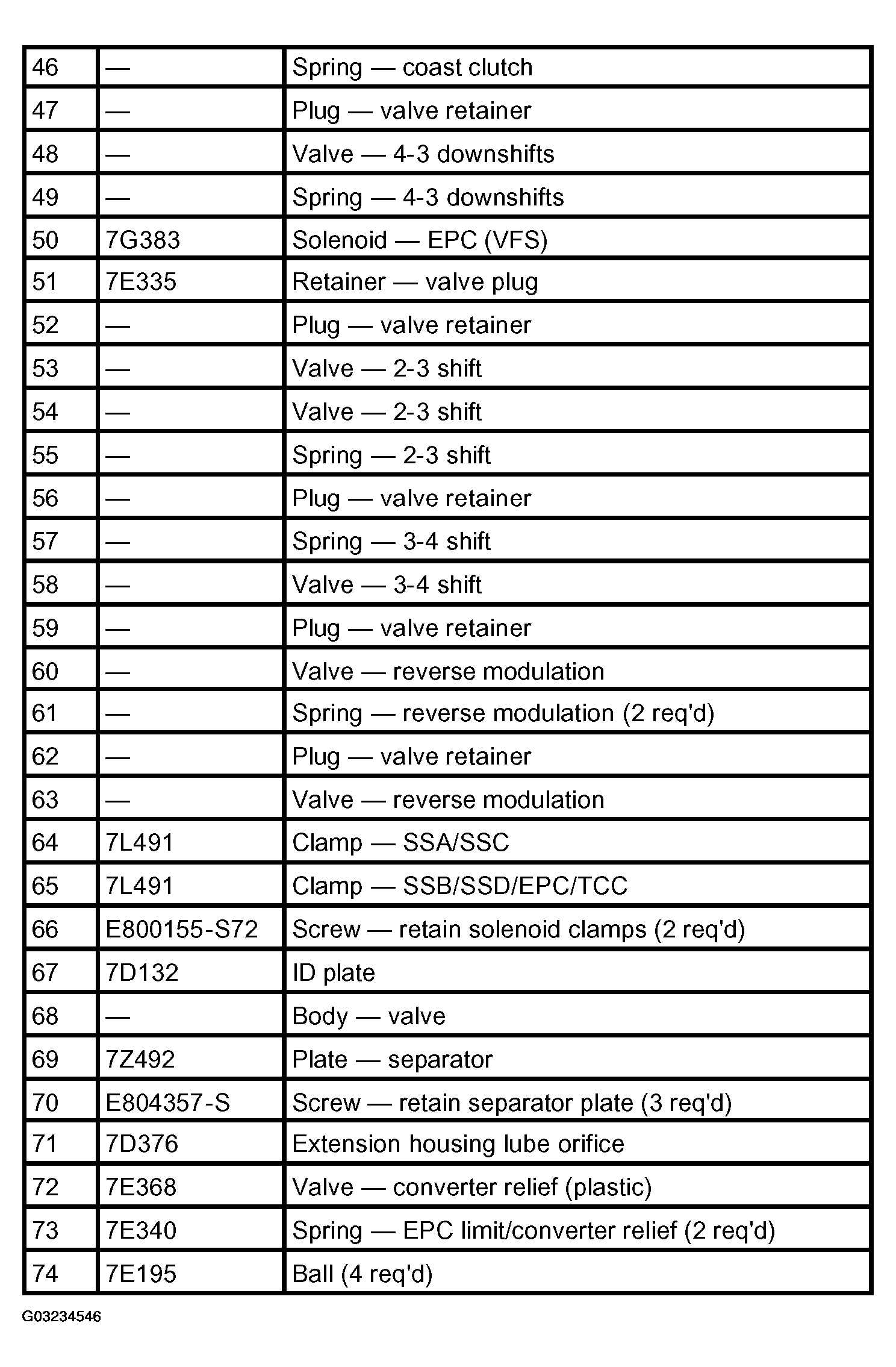

Fig 4: Item Description Of Main Control Valve Body (Items 46-74)

Courtesy of FORD MOTOR CO.
