Air Flow Meter/Sensor: Service and Repair

MASS AIR FLOW (MAF) SENSOR

REMOVAL

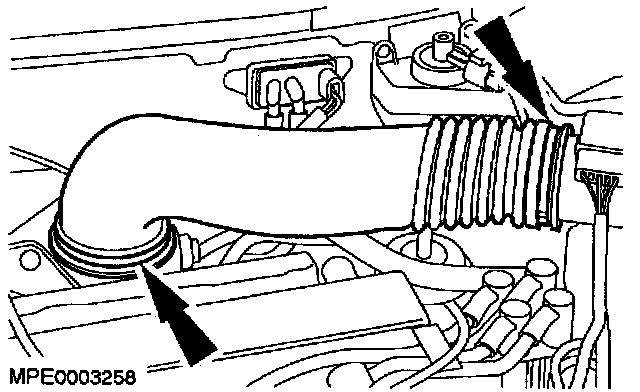

1. Remove the air cleaner outlet pipe.

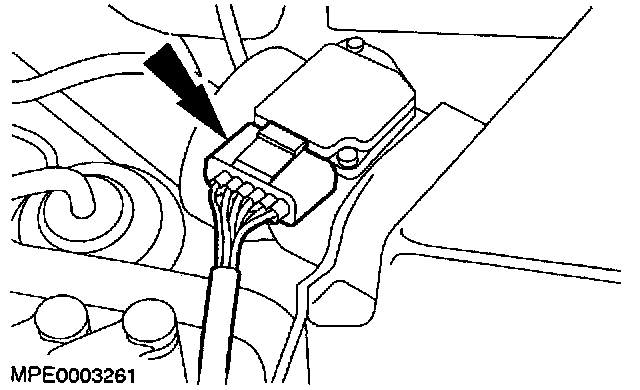

2. Disconnect the mass air flow (MAF) sensor electrical connector.

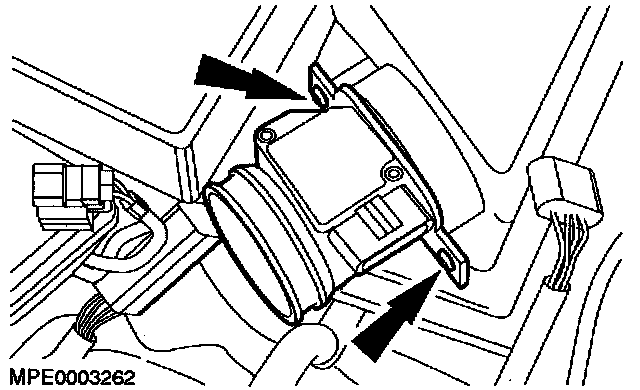

3. Remove the MAF sensor.

INSTALLATION
1. To install, reverse the removal procedure.
