Pinpoint Test D: DTC C1095 - Abs Hydraulic Pump Motor Circuit Failure

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

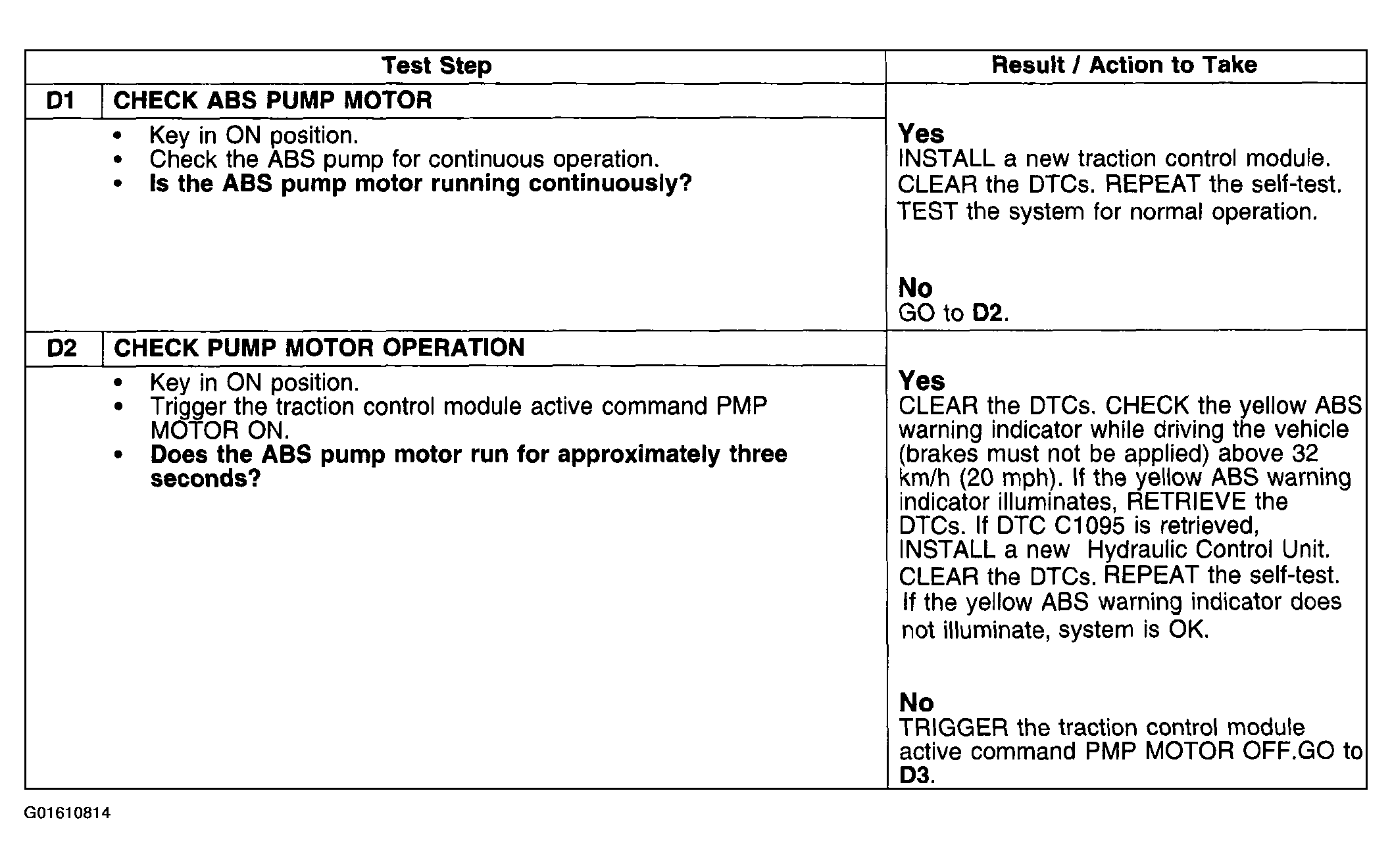

Fig 1: Pinpoint Test D: DTC C1095 - ABS Hydraulic Pump Motor Circuit Failure (D1-D2)
G01610814Courtesy of FORD MOTOR CO.

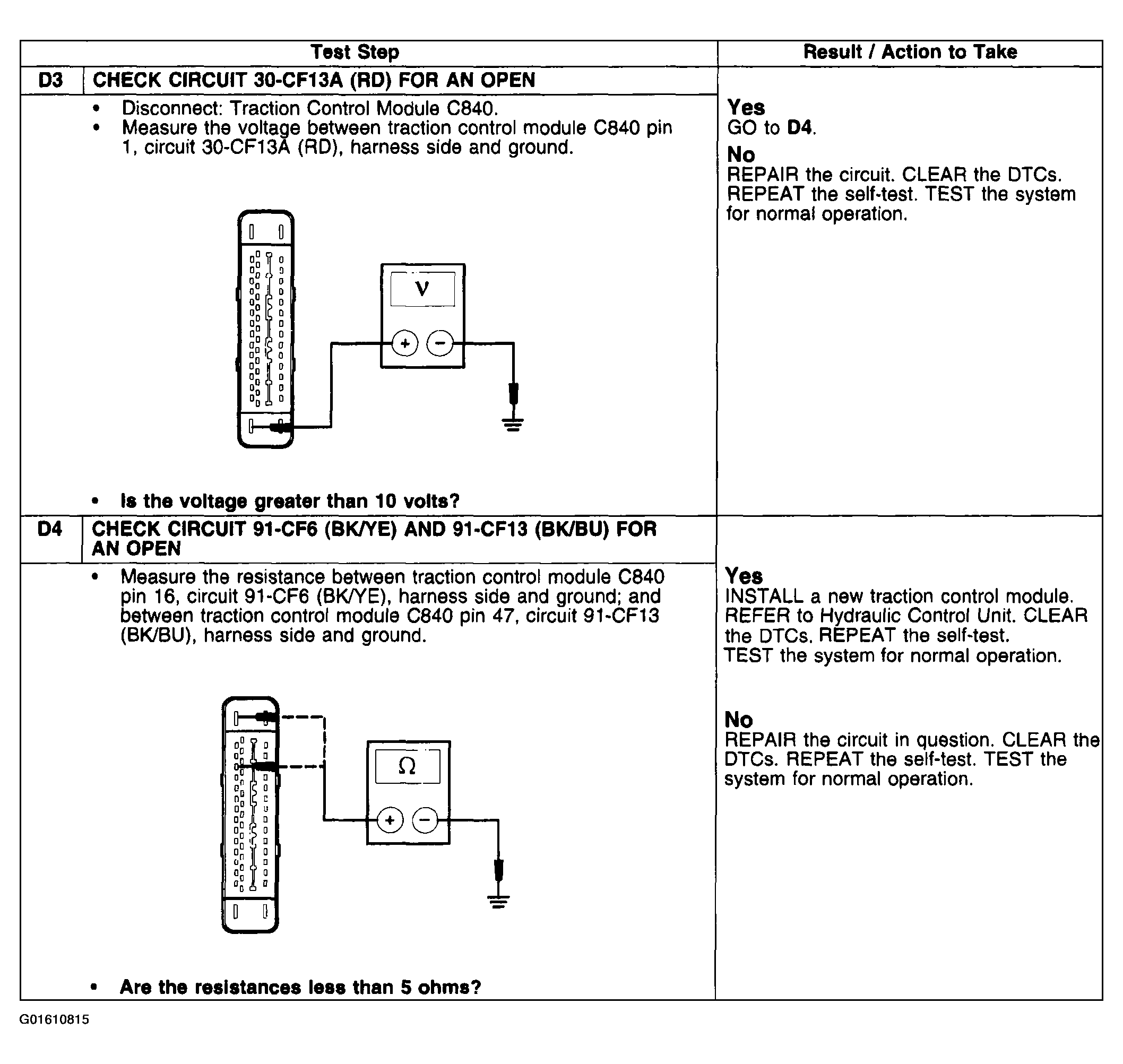

Fig 2: Pinpoint Test D: DTC C1095 - ABS Hydraulic Pump Motor Circuit Failure (D3-D4)
G01610815Courtesy of FORD MOTOR CO.
