Pinpoint Test E: The RCM Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

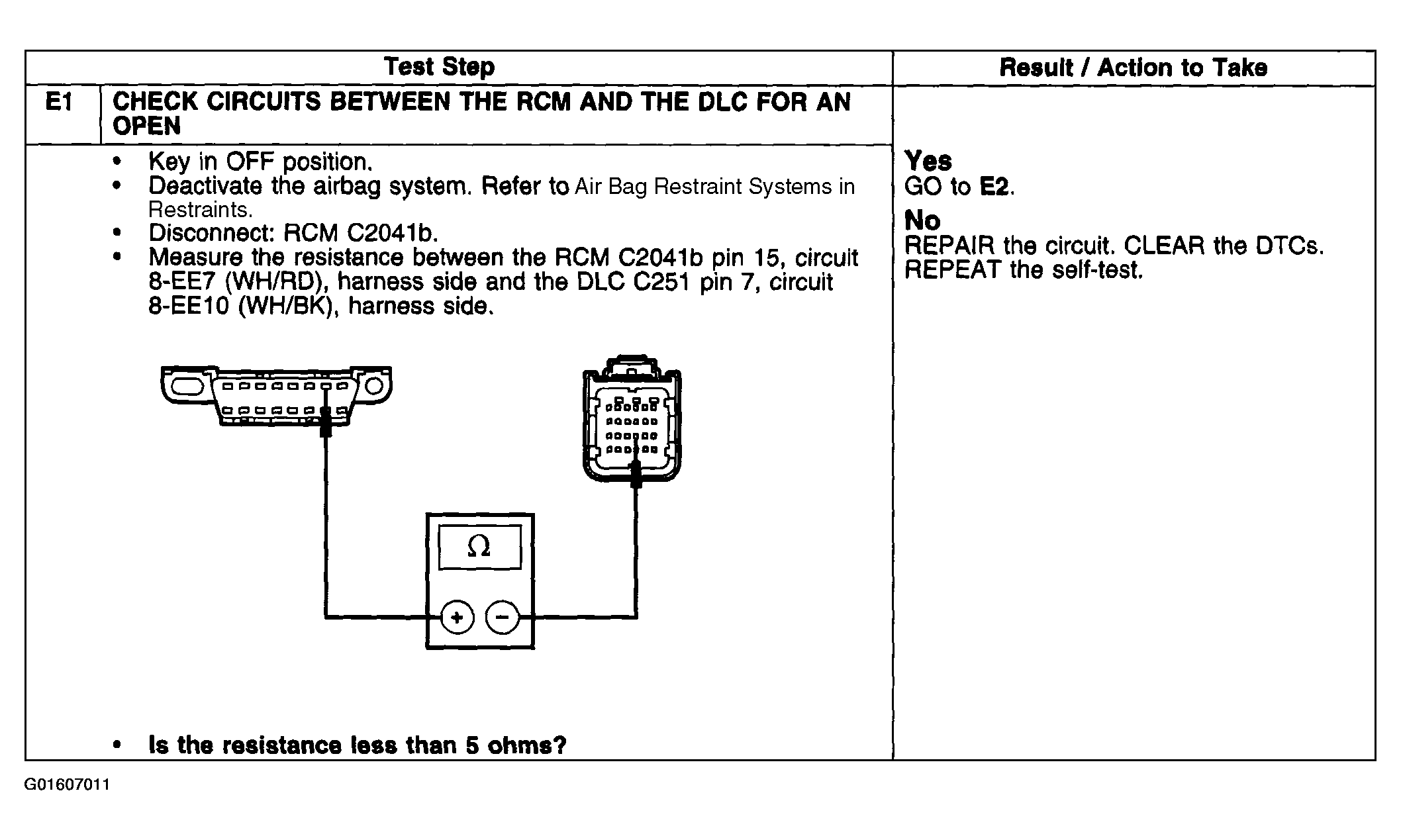

Fig 1: Pinpoint Test E: RCM Does Not Respond To Diagnostic Tool (E1)
G01607011Courtesy of FORD MOTOR CO.

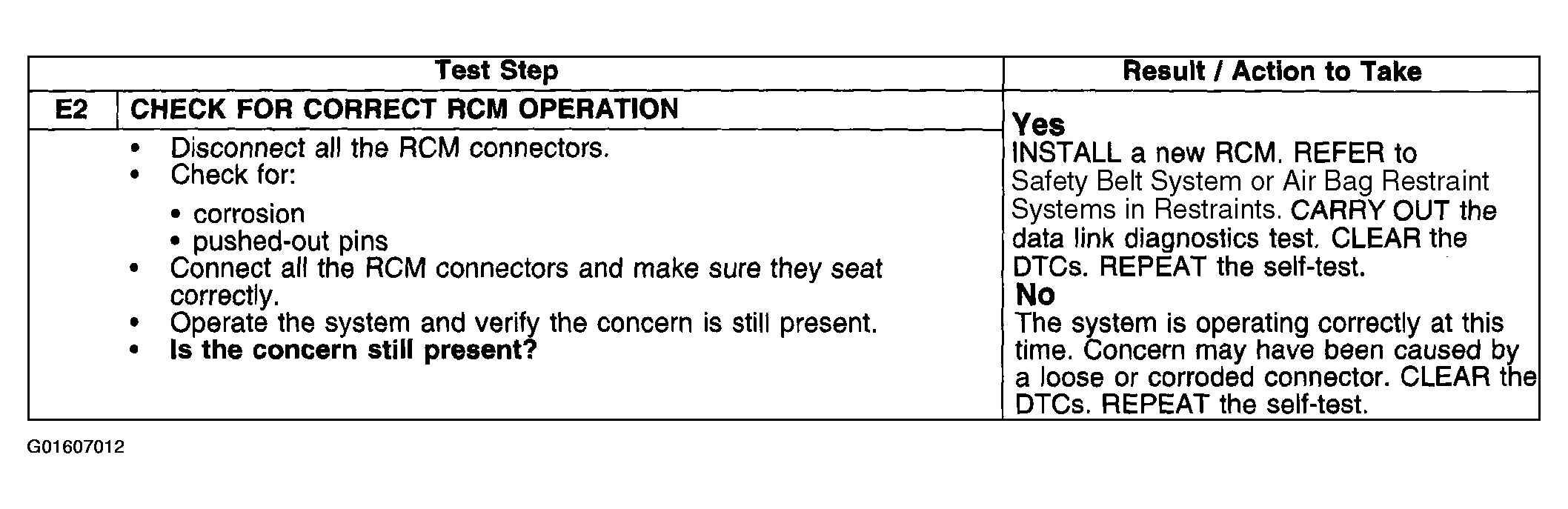

Fig 2: Pinpoint Test E: RCM Does Not Respond To Diagnostic Tool (E2)
G01607012Courtesy of FORD MOTOR CO.
