Differential Assembly And Final Drive Input

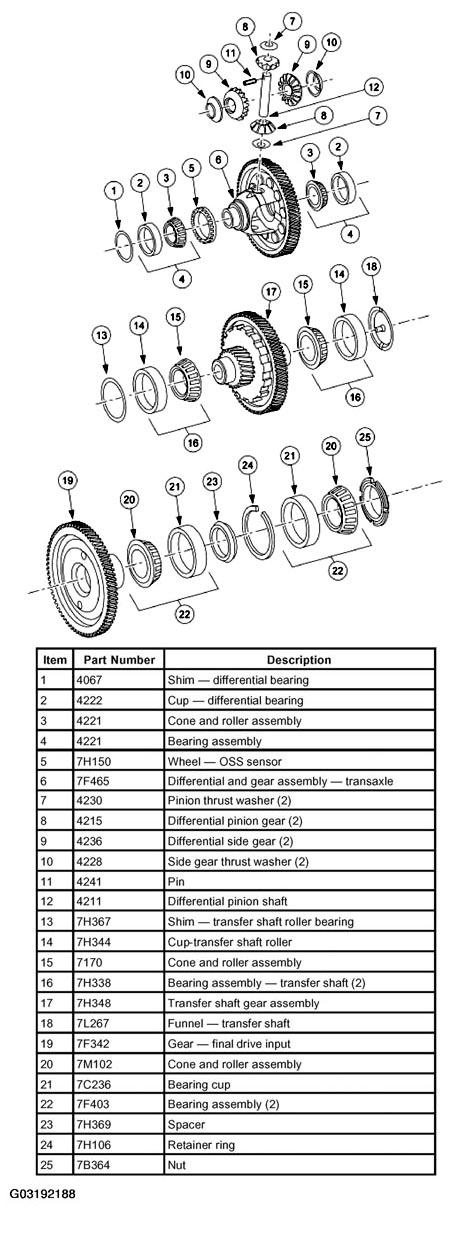

Fig 1: Identifying Differential Assembly And Final Drive Input Components
G03192188Courtesy of FORD MOTOR CO.
