Pinpoint Test JD: Crankshaft Position (CKP) Sensor: Introduction: Notes

NOTE: This pinpoint test is intended to diagnose the following:

• Crankshaft Position (CKP) Sensor (6C135).
• Harness Circuits: CKP(+) and CKP(-)
• Powertrain control module (PCM) (12A650)

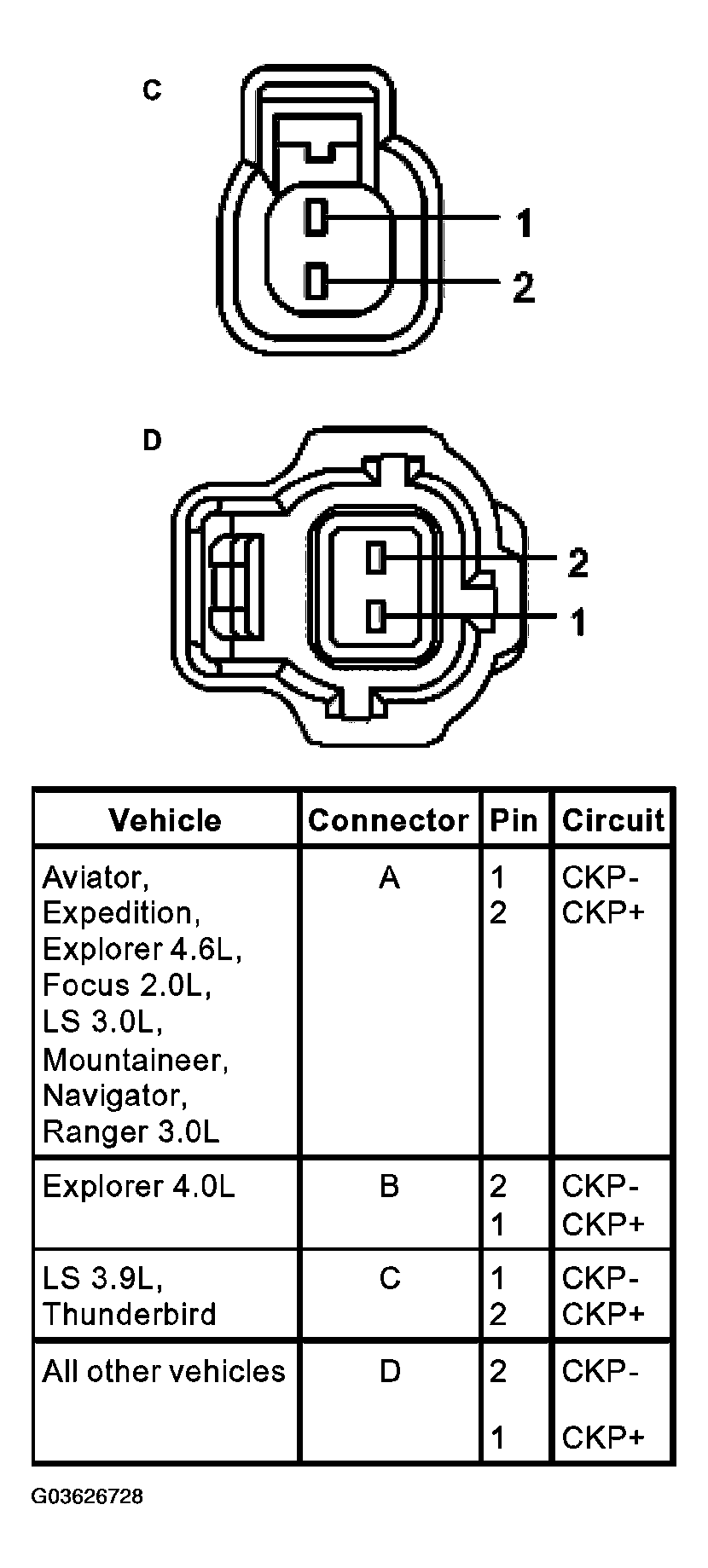

Fig 1: Identifying Crankshaft Position (CKP) Sensor Connector (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Crankshaft Position (CKP) Sensor Connector (2 Of 2)

Courtesy of FORD MOTOR CO.
