Pinpoint Test KJ: Supercharger Bypass Control: Introduction: Notes

NOTE: This pinpoint test is intended to diagnose the following:

Supercharger (boost) bypass solenoid (9H465) (part name is: thermactor air control solenoid/vacuum valve assembly).
Vacuum reservoir assembly (9J442).
Vacuum Hoses.
Harness circuits: SCBC, VPWR and PWRGND.
Powertrain control module (PCM) (12A650).
Supercharger assembly (including the supercharger bypass actuator) (6F076).

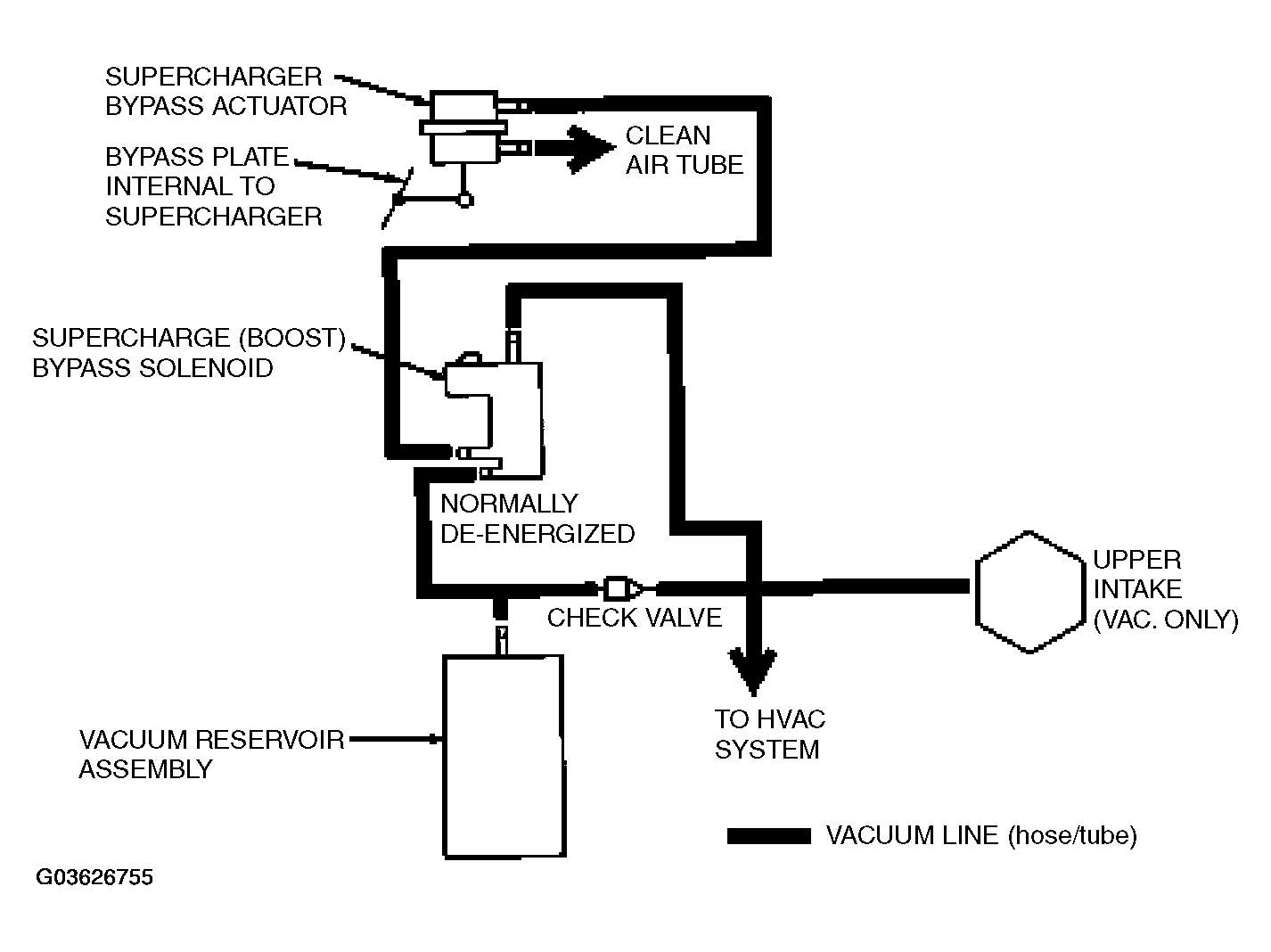

Fig 1: Supercharger Bypass Control Vacuum Diagram

Courtesy of FORD MOTOR CO.

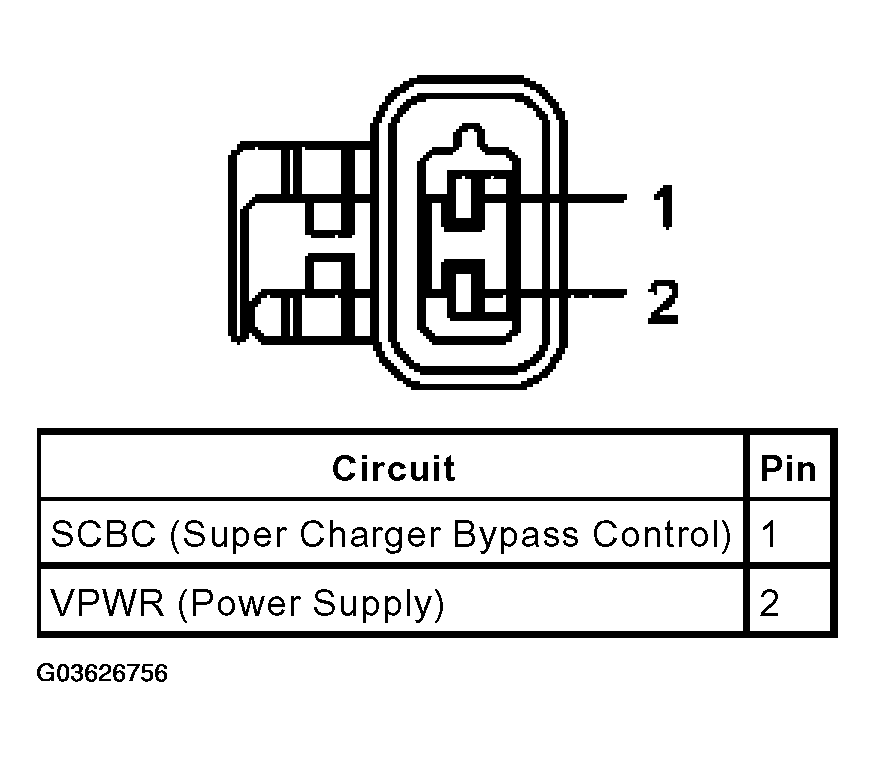

Fig 2: Identifying Super Charger Bypass Control (SCBC) Solenoid Connector

Courtesy of FORD MOTOR CO.
