Upper Engine Components

WARNING: This page is about a different variant/trim than selected.

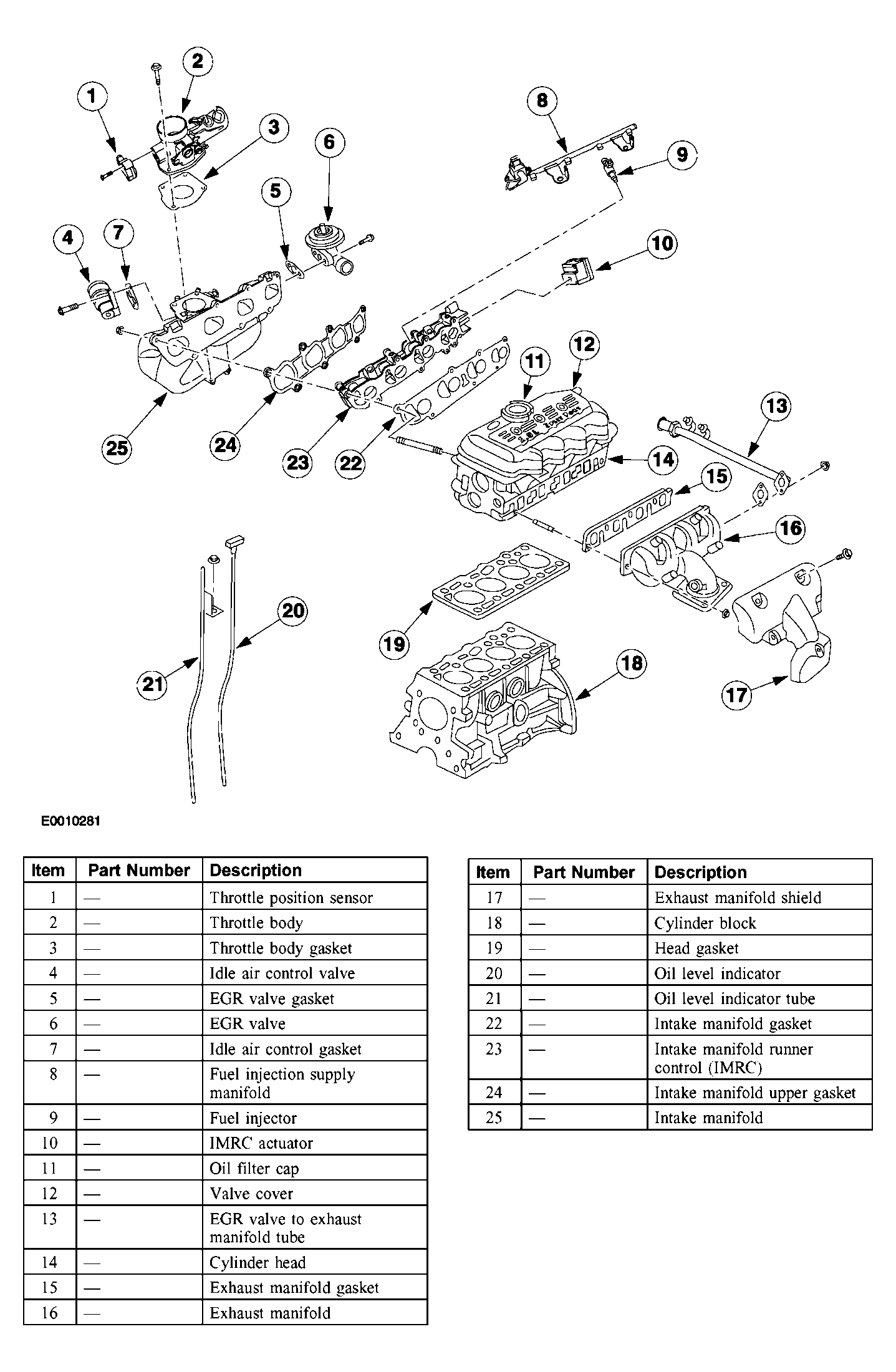

Fig 1: Identifying Upper Engine Components
G04034338Courtesy of FORD MOTOR CO.
