Pinpoint Test O: DTC C1233 (LF), C1234 (RF), C1235 (RR), C1236 (LR), Wheel Speed Sensor Input Signal Missing

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

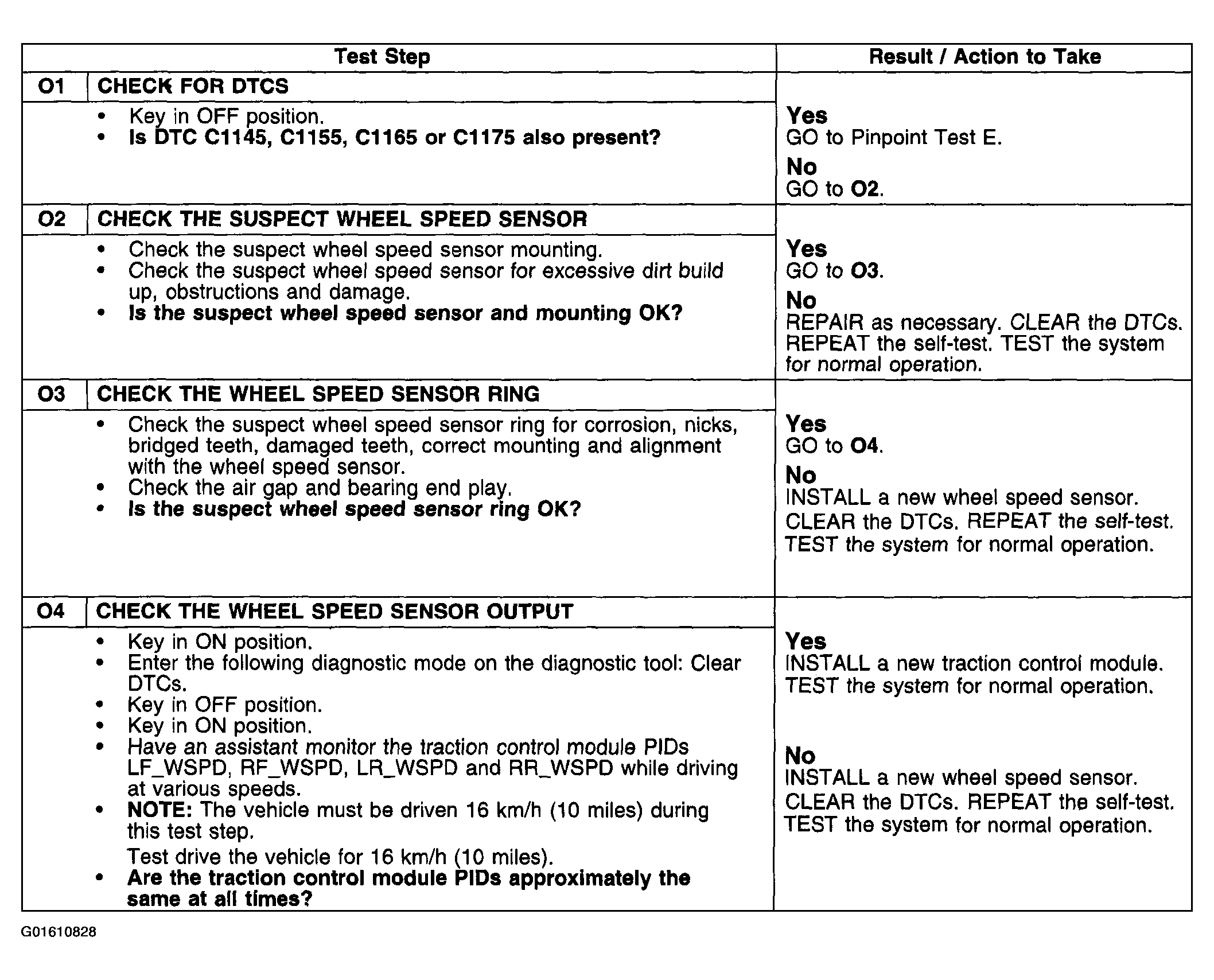

Fig 1: Pinpoint Test O: Wheel Speed Sensor Input Signal Missing (O1-O4)
G01610828Courtesy of FORD MOTOR CO.
