Pinpoint Test A: No Communication With The Stability Assist Module

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

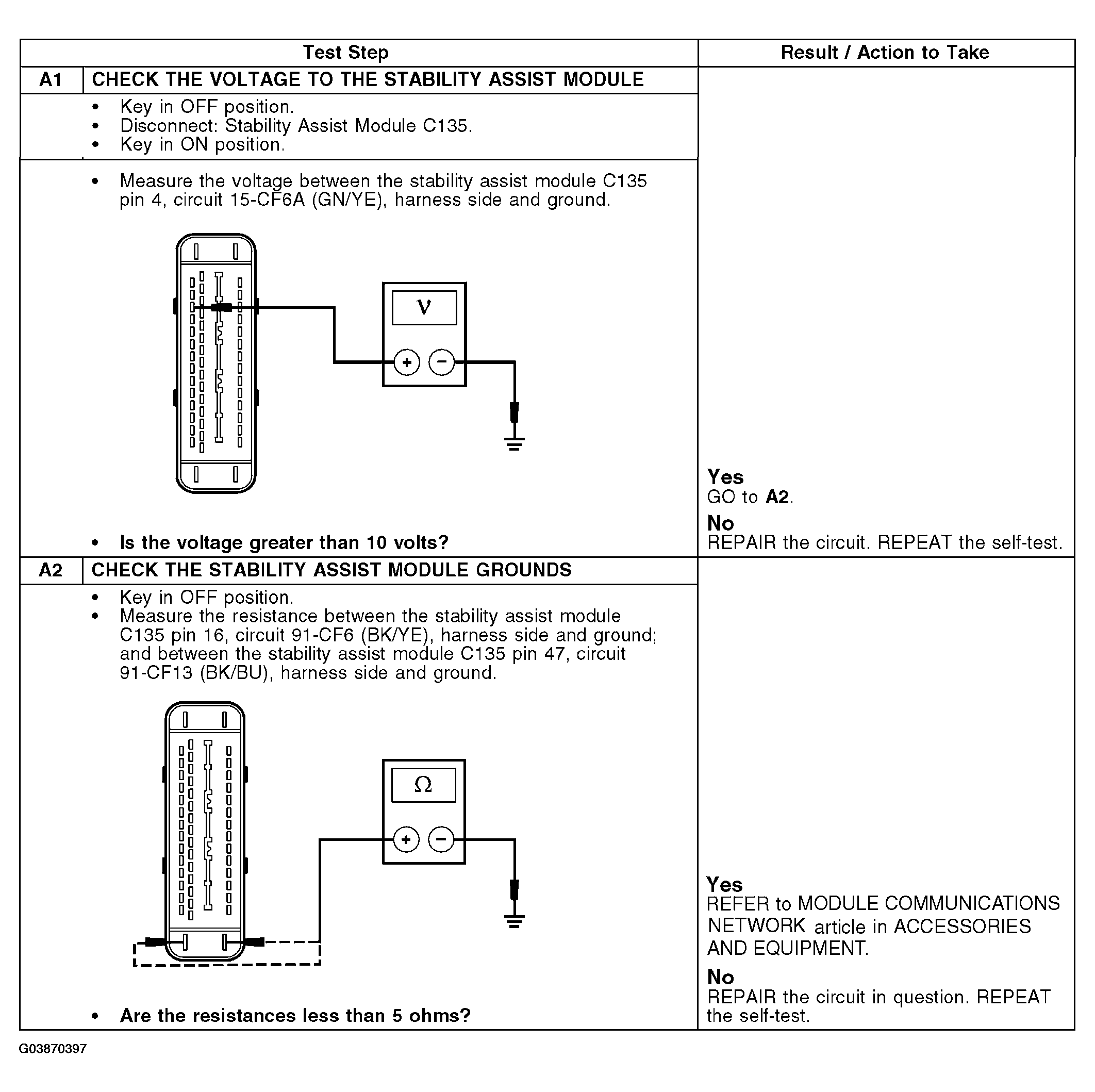

Fig 1: Pinpoint Test A: No Communication With Stability Assist Module (Step A1-A2)
G03870397Courtesy of FORD MOTOR CO.
