Pinpoint Test L: The Resume Switch Is Inoperative

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

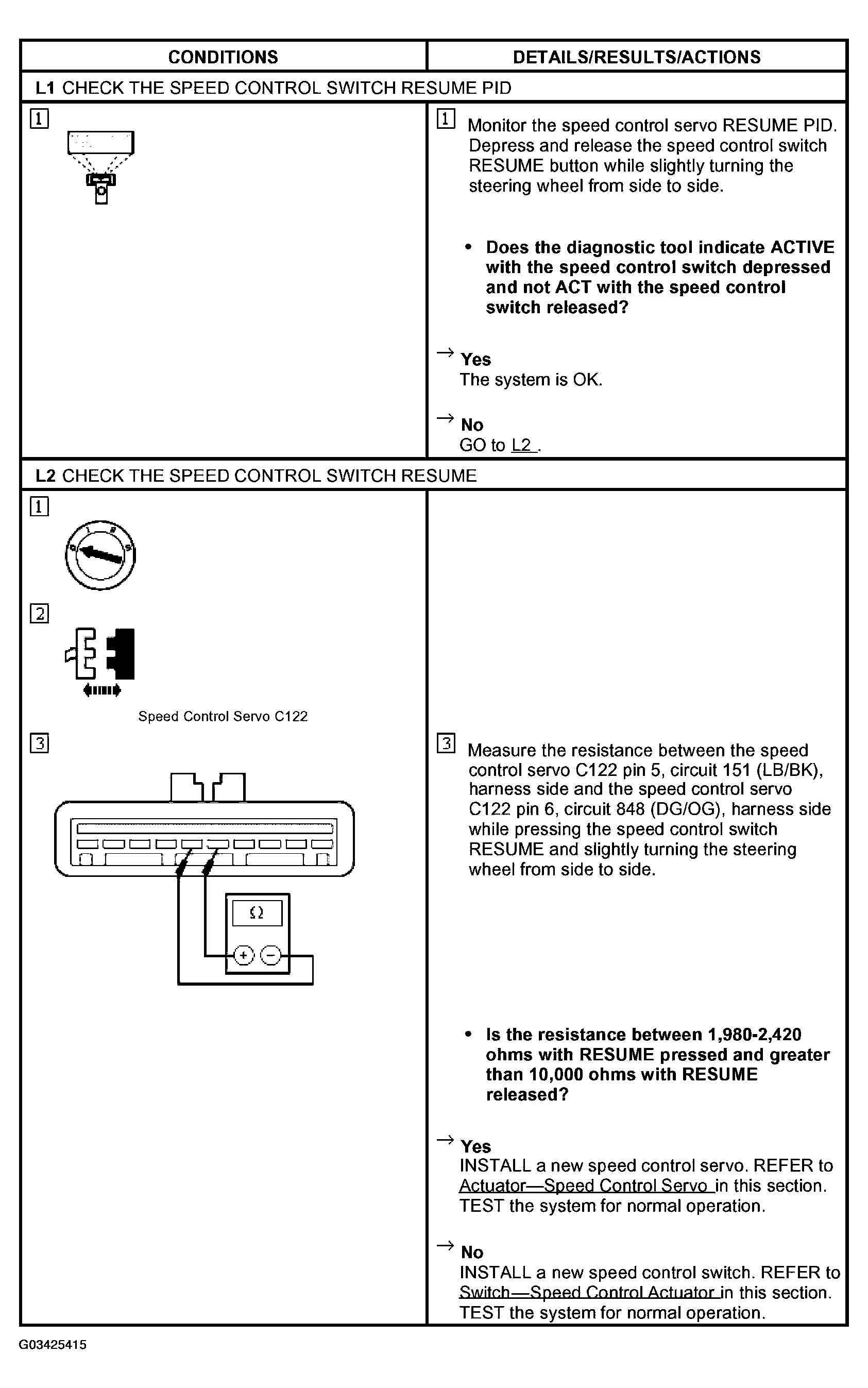

Fig 1: Pinpoint Test L: Resume Switch Is Inoperative (L1 & L2)
G03425415Courtesy of FORD MOTOR CO.
