Pinpoint Test L: The Resume Switch Is Inoperative

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

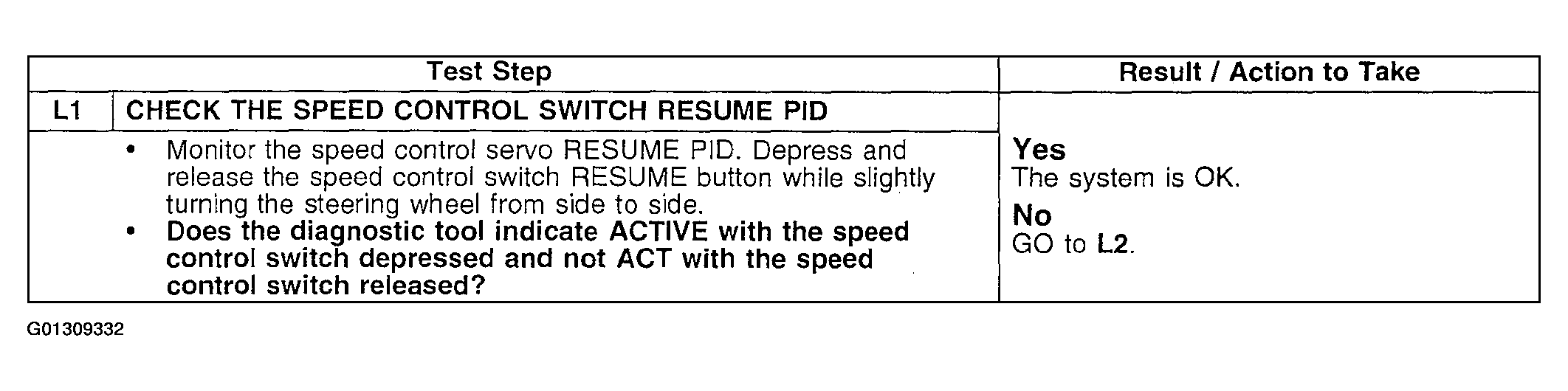

Fig 1: Pinpoint Test L: Resume Switch Is Inoperative (Steps L1)
G01309332Courtesy of FORD MOTOR CO.

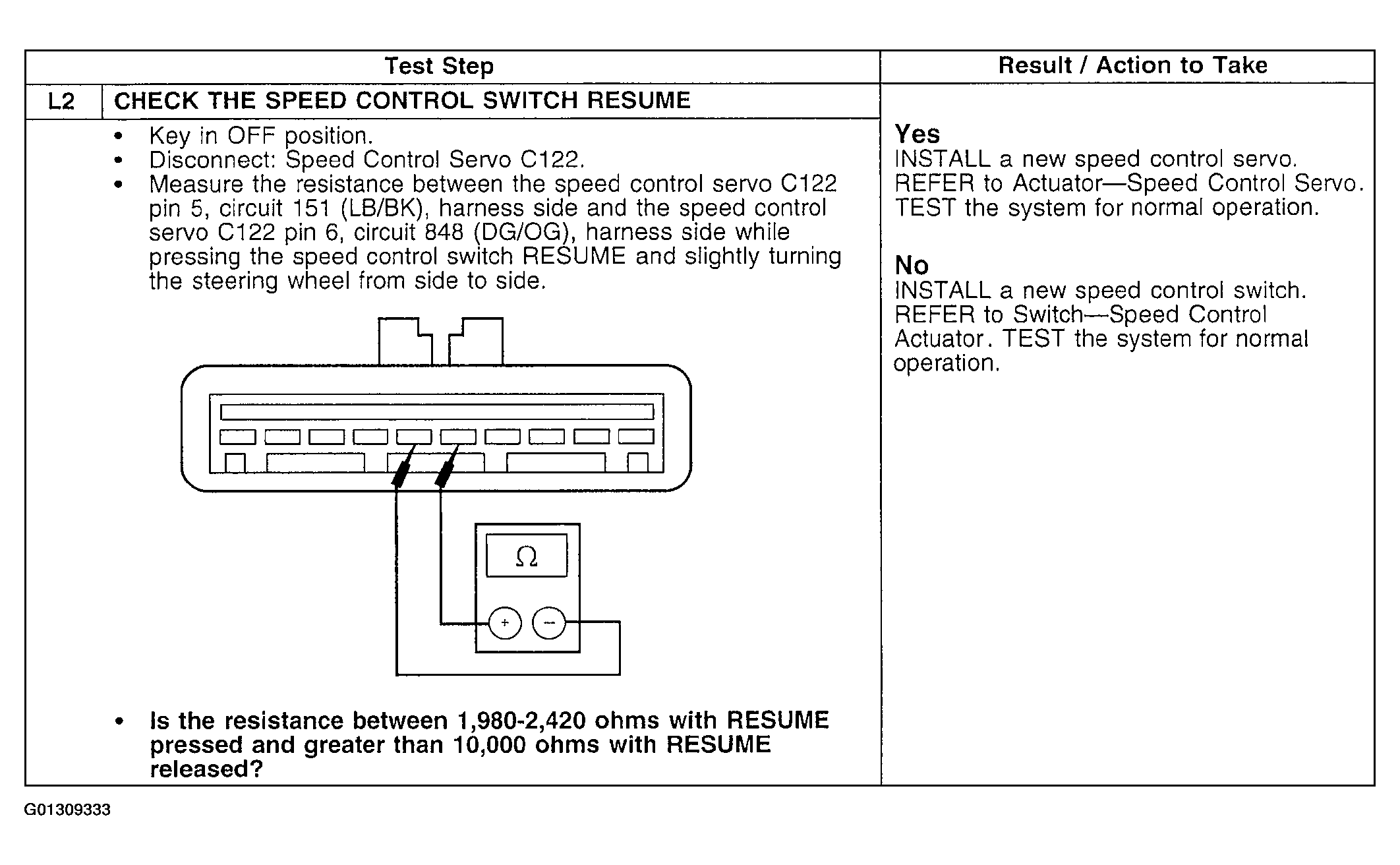

Fig 2: Pinpoint Test L: Resume Switch Is Inoperative (Steps L2)
G01309333Courtesy of FORD MOTOR CO.
